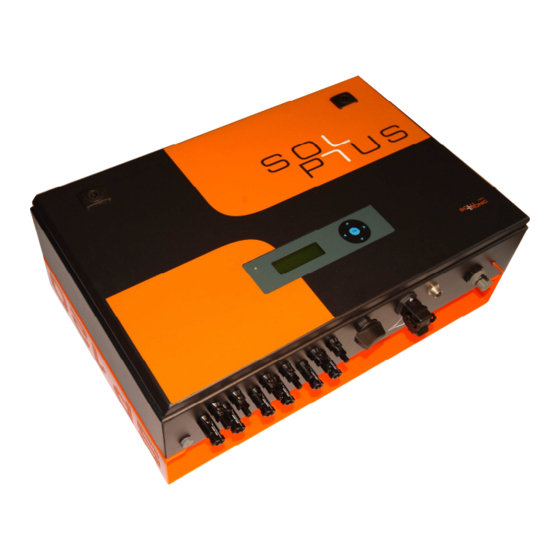

Kurzanleitung SOLPLUS 100/120
Short installation manual SOLPLUS 100/120
Instrucciones de instalación SOLPLUS 100/120
Brevi istruzioni per l'installazione SOLPLUS 100/120
Instructions d'installation série SOLPLUS 100/120
Kurzanleitung SP 100/120, Short installation manual SP 100/120,
Instrucciones de instalación SP 100/120, Brevi istruzioni per
Í´installazione SP 100/120, Instructions d´installation sèrie SP 100/120
MS/2010-11/Version: A8, Subject to change without prior notice
Advertisement
Related Manuals for Solutronic SOLPLUS 120
Summarization of Contents
General Information and Disclaimer
General Disclaimer
Solutronic AG assumes no liability for damages caused by failure to observe warnings.
Safety Instructions
Installation Manual Compliance
Important! Please follow the installation instructions in the instruction manual.
Scope of Delivery
Included Items
Lists installation manual, inverter, AC connector, screws, and mounting rack.
Tools Required
Required Tools and Materials
Lists drill, screws, wall plugs, earthing cable, and screwdriver.
Mounting Preparation
Marking Drill Holes
Mark the positions for the mounting holes on the wall.
Drilling Holes
Drill holes suitable for the wall material and mounting screws.
Mounting the Rack
Insert Wall Plugs
Insert the wall plugs into the drilled holes.
Attach Mounting Rack
Fix the mounting rack to the wall using screws.
Inverter Installation
Hanging the Inverter
Hang the inverter onto the mounting rack from the top.
Securing the Inverter
Fix the inverter from below using the provided knurled screws.
Electrical Connections
Earthing Connection
Connect the protective earth conductor to the designated point.
Inverter Connection Point
Identify the connection point for the inverter.
AC and Grid Connection
5-Wire AC Plug Connection
Connect the 5-wire AC plug, ensuring correct wiring to terminals.
AC Grid Wiring
AC Grid Connection Details
Connect the 5-wire AC grid cable to labeled terminals (1, 2, L, N, PE).
Finalizing Connections and Power On
AC and DC Connector Engagement
Engage AC and DC connectors properly.
Powering On the Inverter
Turn on the inverter using the DC interrupter.
