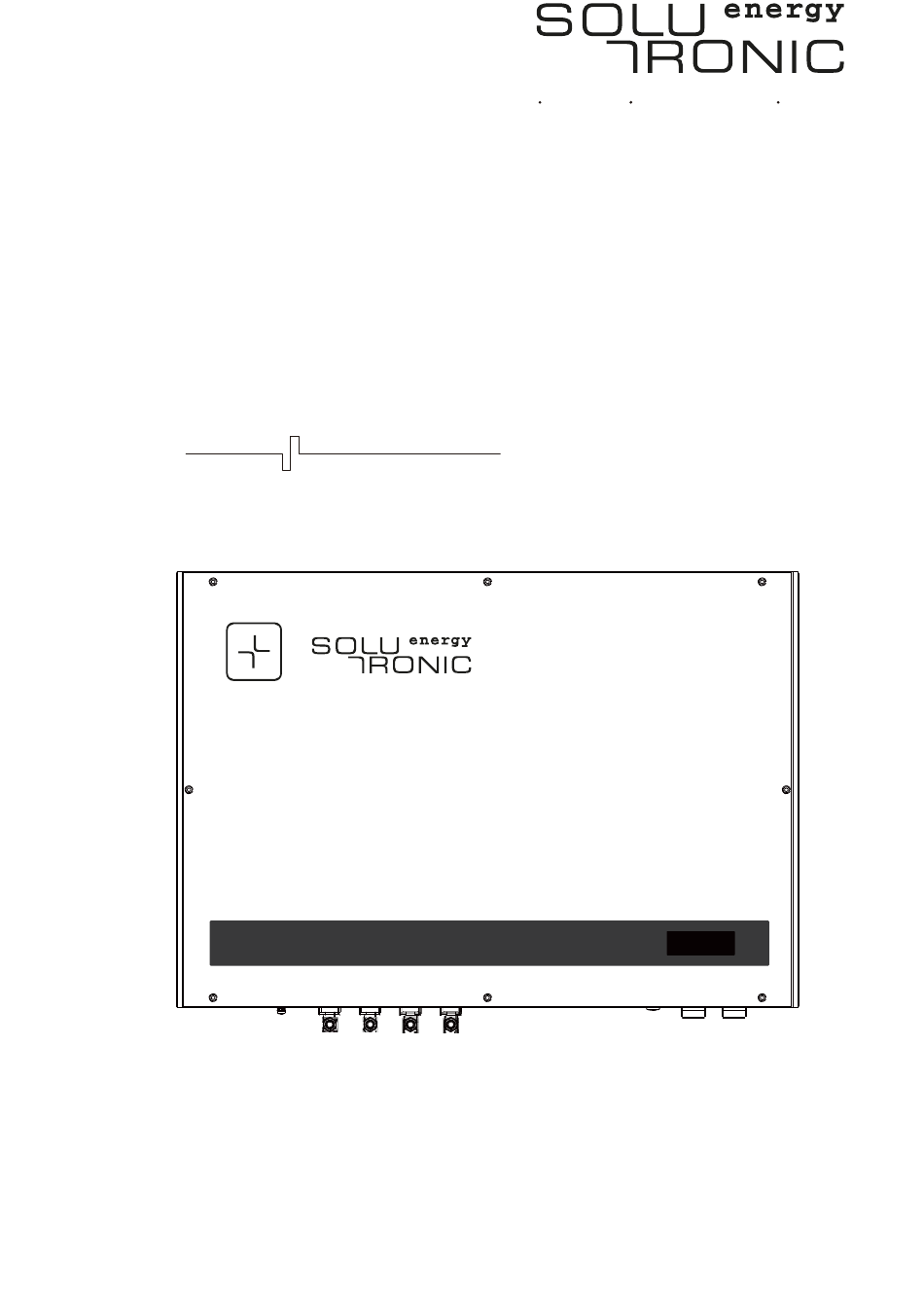

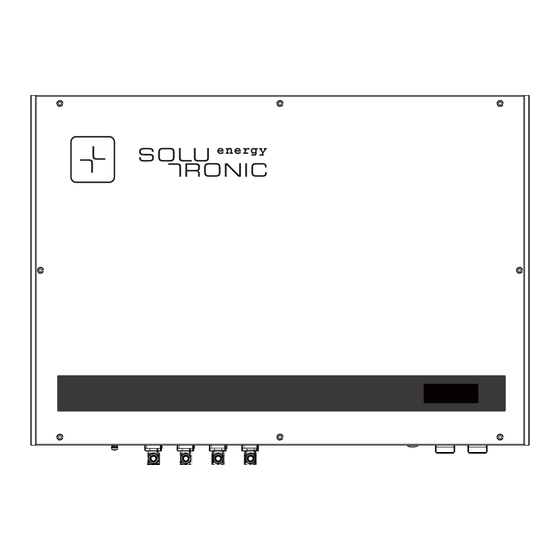

- Page 1 Solutronic Energy GmbH Kelterstr. 59 72669 Unterensingen Germany User Manual SolBattHome 5.0 Li User Manual SolBatt Home Version: B0...
-
Page 2: Table Of Contents
Disposal ....................................11 Electrical connection ..................................... 11 Additional PE connector ..............................11 Charger connection ................................12 Communication connectors ............................13 Connection with a Solutronic SolHybrid ............................13 Product description ....................................14 Product features ................................. 14 10.1 Applications ..................................15 10.2 Technical Specification .................................. -
Page 3: Introduction
Introduction Instructions for manual We are delighted that you have decided to purchase a Solutronic SolBatt Home energy storage system. This user manual supports installers and end customers to operate the SolBatt Home energy storage system. Keep this document accessible at all times. - Page 4 Danger! Danger designates a warning that can result in immediate death or serious personal injury if it is not adhered to! Information Useful information and instructions for the optimum operation of SOLUTRONIC devices. 2/24 SolBatt Home_User Manuel_B.00-EN...
-
Page 5: Safety
Safety Safety General safety Please comply with the following safety operating and instructions in this manual. Otherwise it may cause a significant threat to life security or/and additionally damage to the device or system. These safety instructions must be adhered to at all times. Please read through the safety instructions carefully before installing the unit and putting it into operation for the first time. -
Page 6: Non-Adherence To Warnings
Safety Non-adherence to warnings Solutronic Energy GmbH is not liable for any damage occurring as a consequence of non-adherence to the warnings given in this manual. This manual and the relevant safety instructions must be read through and understood prior to commissioning. -
Page 7: Safe Function And Protection From The Environment
Contents of delivery This device should not be disposed of with household waste at the end of its lifetime. Please return it to Solutronic Energy for appropriate disposal. TUV certificate Safe function and protection from the environment Information The IP65 protection rating that is indicated and safe function is only achieved and... -
Page 8: Dimensions And Weights
Dimensions and weights Information Please retain the original packaging. The original packaging can be used multiple times and provides optimum protection from damage during transport when maintenance is required. Dimensions and weights All details are approximate, without mounting and fixing components. SolBatt Home SolBatt Home 5.0 Li W x H x D (mm) -
Page 9: Mounting
Mounting Underside of a SolBatt Home without wall bracket and floor stand Connecting to a Solutronic SolHybrid energy Charger connector plus + manager or other external chargers, max. Charger connector minus - 56VDC RJ45 CAN bus for SolHybrid or other... -
Page 10: Mounting Site
The higher the temperature and/or the humidity, the shorter the lifetime. Please select a suitable mounting site. Information Solutronic Energy GmbH is not liable for any damage caused by defective mounting! Such damage includes: damage to the foil covering the display and keyboard, negative impact on legibility... -
Page 11: Wall Mounting Guide
Attention: The SolBatt Home must never be exposed to ammonia or other aggressive vapours or gases (stables!). Solutronic Energy provides no guarantees for installations in such areas. The dealer or installer must pay for any damage in the event of possible subsequent maintenance. -
Page 12: Floor Mounting Guide
De-installation Φ8mm Sleeve Φ10mm Ratchet Φ13mm Ratchet (Length 120mm+) wrench wrench S1.2 Check packaging The SolBatt Home may be damaged in improper transportation. Please check carefully whether the external packaging is damaged after receiving the product. Please contact the distributor immediately and reject the product if the above situation happens. -
Page 13: De-Installation
Electrical connection De-installation Warning! De-installation must be carried out by qualified personnel. Contact your installer/dealer. 48V Li-ion batteries are indicated as dangerous goods and may require special transportation. Please Check the documentation of the supplier and local regulations. To de-install the SolBatt Home: Disconnect the communication wires. -
Page 14: Charger Connection
Electrical connection Charger connection Technically, all types of DC charger within the voltage range of 42V to 56V can be used. A Solutronic SolHybrid energy manager with a transformerless solar inverter and a bidirectional DC-DC converter would be perfect for the SolBatt Home. -
Page 15: Communication Connectors
Connection with a Solutronic SolHybrid Communication connectors RJ 45 CAN-battery BMS battery ON View from front CAN high battery empty empty CAN low battery empty Use battery cable to connect SolBatt Home and SolHybrid. empty Confirm the connection is correct with a sound "ka". -
Page 16: Product Description
SolBatt Home "CAN1 or CAN2" "BAT+" /"BAT-"pairing SolBatt Home plus and minus PE screw connection torque, 3.0 Nm. Please refer to our homepage for detailed instructions and further information on the use of Solutronic SolHybrid energy manager. Product description 10.1 Product features The SolBatt Home is a kind of smart storage module which is easy to operate, efficient and suitable for household. -
Page 17: Applications
Product description together with renewable energy such as Photovoltaic system or hybrid system. 10.2 Applications DC system (voltages are nominal values) PV generator 80 – 400 VDC AC grid 230 V Grid mana er SolHybrid DC system SolBatt Home 230VAC 48VDC 230VAC Domestic consumption... - Page 18 Product description AC system (voltages are nominal values) existing PV system PV generator Inverter, 1 or 3 phase 230VAC AC grid 230 V SolBatt Home SolHybrid AC system Grid Manager 230VAC 48VDC Domestic consumption 16/24 SolBatt Home_User Manuel_B.00-EN...
-
Page 19: Technical Specification
Technical Specification Technical Specification Type SolBatt Home 5.0 Li Battery Material LiFePO4 Nominal Capacity 5.1kWh Voltage & Range 51.2V /42V to 56V 10 years or 8000 charging / discharging Expected life* cycles Discharging Nominal Current Peak Current Temperature -10°C to +45°C Self-discharge <1% per month Depth of Discharge... -
Page 20: Maintenance And Cleaning
Maintenance and cleaning Maintenance and cleaning The SolBatt Home is fully automated and requires no servicing, but check the device at regular intervals to ensure it is operating perfectly. Cleaning the housing and display: Information Do not use corrosive, abrasive or solvent-based detergents. You should also avoid detergents containing alcohol. -
Page 21: First Commissioning
First commissioning Information Please note: In the event that the SolBatt Home needs to be returned to us, please only send the device in its original packaging. You can also use the packaging from the replacement device that has been sent to you. Ensure that the individual components are inserted correctly into the packaging so the device is not damaged during transport. -
Page 22: Normal Operation
Normal operation SolBatt Home state Run(green) Charge(yellow) Fault(red) No activity Battery discharging on/blinking Fatal Error on/blinking Normal operation After system activated, customer can monitor the state of system from the user interface. As described in chapter 14.2, the system is defined as three normal operation modes 15.1 No activity The communication between the SolBatt Home and the SolHybrid is established correctly and the Red LED is off. -
Page 23: Discharging Mode
Error handling 15.3 Discharging mode SolBatt Home will supply power for load or feed the stored energy into the grid. It can optimize self- consumption and improve the renewable efficiency. PV generator Domestic consumption SolHybrid Grid SolBatt Home Error handling The BMS of the SolBatt Home knows three basic error states, which need different handling: State Description... -
Page 24: Sleep Mode
Sleep mode Plug in the RJ45 cable again after the error was eliminated to restart the SolBatt Home. Sleep mode The SolBatt Home can go into “Sleep Mode” if you won’t use it or you want to de-install. Firstly, unplug the RJ45 cable, then press the push button for more than 10 seconds until all LEDs are off. Everything is switched off in sleep mode and the power consumption is minimal. - Page 25 SolBatt Home_User Manuel_B.00-EN 23/24...
- Page 26 Solbatt Home Solutronic Energy GmbH Kelterstraße 59 D-72669 Unterensingen Germany Tel.: 07022/9788-0 Fax: 07022/9788-50 www.solutronic-energy.de SolBatt Home_User Manuel_B.00-EN...
