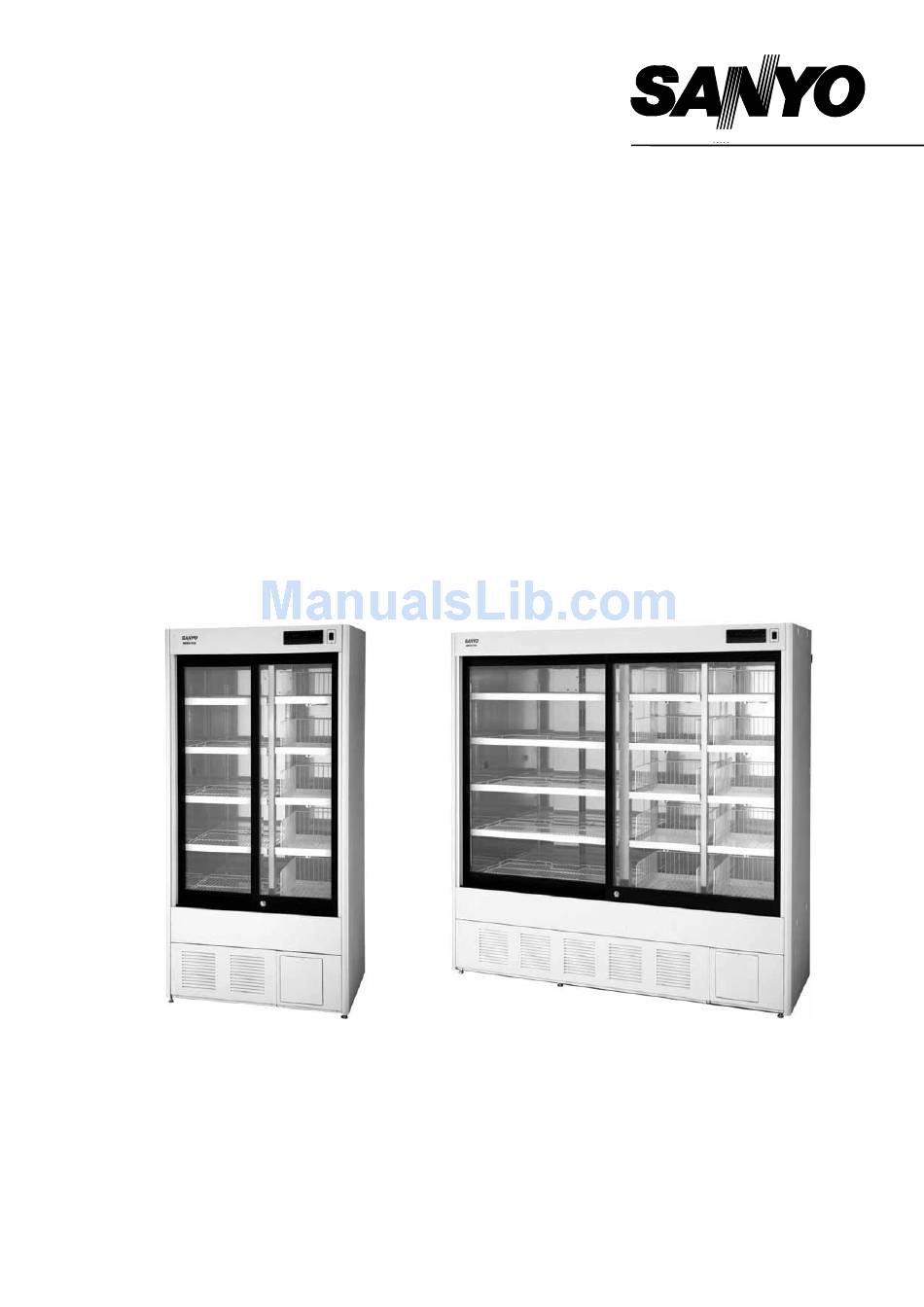

- Page 1 INSTRUCTION MANUAL MPR-513 MPR-513R MPR-1013 Pharmaceutical Refrigerator MPR-1013R MPR-513R MPR-1013R...
-
Page 2: Table Of Contents
1. No part of this manual may be reproduced in any form without the expressed written permission of SANYO. 2. The contents of this manual are subject to change without notice. 3. Please contact SANYO if any point in this manual is unclear or if there are any inaccuracies. SANYO Electric Biomedical Co., Ltd. -
Page 3: Precautions For Safe Operation
PRECAUTIONS FOR SAFE OPERATION It is imperative that the user complies with this manual as it contains important safety advice. Items and procedures are described so that you can use this unit correctly and safely. If the precautions advised are followed, this will prevent possible injury to the user and any other person. - Page 4 PRECAUTIONS FOR SAFE OPERATION WARNING Do not use the unit outdoors. Current leakage or electric shock may result if the unit is exposed to rain water. Only qualified engineers or service personnel should install the unit. The installation by unqualified personnel may cause electric shock or fire. Install the unit on a sturdy floor.
- Page 5 PRECAUTIONS FOR SAFE OPERATION WARNING Do not pull out more than 2 drawers at the same time when storing or taking out of the stocked material. This may cause injury by falling or tipping of the unit if something heavy items are stored. Disconnect the power supply to the unit prior to any repair or maintenance of the unit in order to prevent electric shock or injury.
- Page 6 PRECAUTIONS FOR SAFE OPERATION CAUTION Fix the shelves securely. Incomplete installation may cause injury or damage. When removing the plug from the power supply outlet, grip the power supply plug, not the cord. Pulling the cord may result in electric shock or fire by short circuit. Never damage or break the power supply plug or cord.
-
Page 7: Cautions For Usage
CAUTIONS FOR USAGE 1. If the unit is unplugged or the power to the unit is interrupted, do not restart the unit for at least 5 minutes. This protects the compressor. 2. This inner cabinet is refrigerated by forced circulation of cooled air inside the chamber. Ensure that the intake and exhaust air vents are not blocked. -
Page 8: Circuit Breaker
CAUTIONS FOR USAGE Circuit breaker This unit is equipped with a circuit breaker on the back. Make sure to switch ON this breaker before the unit starts to run. Following figures show the circuit breaker position. Circuit breaker When the operation of the unit is stopped by this breaker, contact a dealer or a service station after disconnected the power supply plug. -
Page 9: Refrigerator Components
REFRIGERATOR COMPONENTS MPR-513R 15 16 MPR-1013R... - Page 10 REFRIGERATOR COMPONENTS 1. Door: Sliding type. The recessed portion on the rail enables the self-closing of the door. The glass is pair construction. 2. Control panel: Panel can be opened when upper right corner of the lower part cover is pushed. Refer to page 10. 3.
- Page 11 REFRIGERATOR COMPONENTS Control panel and keypad 1. Buzzer stop key (BZ): To silence the audible alarm, press this key. Press it once again to reactivate the alarm. 2. Set key (SET): Temperature setting mode is initiated by pressing this key. Once the key is pressed, the digit to be changed will flash.
-
Page 12: Installation
INSTALLATION Installation site To operate this unit properly and to obtain maximum performance, install the unit in a location with the following conditions: 1. A location not subjected to direct sunlight Installation in a location subjected to direct sunlight may lead to inadequate cooling. 2. - Page 13 INSTALLATION Installation 1. Remove the packaging materials and tapes Remove all transportation packaging materials and tapes. Open the doors and ventilate the unit. If the outside panels are dirty, clean them with a neutral detergent and wipe it off with a soft cloth washed in clean water.
-
Page 14: Automatic Temperature Recorder
An automatic temperature recorder is available for this refrigerator as an optional accessory. If an automatic temperature recorder is required, contact your Sanyo dealer. For the proper usage of temperature recorder, refer to an instruction manual included with the recorder. - Page 15 OPTIONAL COMPONENTS Attachment of recorder MTR-G04 WARNING Always disconnect the power supply plug before installing an automatic temperature recorder in order to prevent electric shock or injury. 1. Follow the instruction manual provided with the temperature recorder and attach the recorder to the fixture MPR-S7.
-
Page 16: Start-Up Of Unit
START-UP OF UNIT Follow the procedures for the initial and consequent operations of the unit. 1. Connect the power cord to the dedicated outlet with appropriate rating. 2. On start-up, the alarm buzzer sometimes operates. In this case, stop the buzzer by pressing the alarm stop key (BZ). -
Page 17: Temperature Setting
TEMPERATURE SETTING Chamber temperature Table 1 shows the basic procedure for setting the chamber temperature. Perform key operations in the sequence indicated in the table. The example in the table is based on the assumption that the desired temperature is 4 Note: The unit is set at the factory with a chamber temperature of 5 Table 1. -
Page 18: Alarm Temperature Setting
TEMPERATURE SETTING Alarm temperature setting This unit is provided with both high and low temperature alarms. The temperature at which the alarm is activated may be changed. The available set range for high temperature alarm is between +2 C and +14 C and -2 C and -14 C for... -
Page 19: Alarms & Safety Functions
ALARMS & SAFETY FUNCTIONS This unit has the alarms and safety functions shown in Table 5, and also self diagnostic functions. Table 5. Alarms and safety functions Alarm & Safety Situation Indication Buzzer Safety operation If the chamber temperature deviates ALARM lamp is flashed. -
Page 20: Remote Alarm Terminal
ALARMS & SAFETY FUNCTIONS Remote alarm terminal WARNING Always disconnect the power supply to the unit prior to connection of alarm equipment to the terminal in order to prevent electric shock or injury. The terminal to which a lead wire of remote alarm is connected is positioned in the box at the rear of the cabinet. -
Page 21: Routine Maintenance
ROUTINE MAINTENANCE WARNING Always disconnect the power supply to the unit prior to any repair or maintenance of the unit in order to prevent electric shock or injury. Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. - Page 22 ROUTINE MAINTENANCE Clean the evaporating tray once a month following the procedure below. Cleaning of evaporating tray 1. Remove the screws on the bottom of the unit cover and remove the cover. See Fig. 1. Fig. 1 2. For model MPR-513 and MPR-513R, remove the evaporating tray mounting plate by pulling out the clips towards front.
-
Page 23: Replacement Of Fluorescent Lamp
ROUTINE MAINTENANCE Replacement of fluorescent lamp 1. The fluorescent lamp is placed vertically at the MPR-1013 center of the frame (MPR1013 and MPR-1013R) and MPR-1013R horizontally at the top front of the cabinet (MPR-513 and MPR-513R) 2. Turn off the fluorescent lamp switch and disconnect the power supply plug . -
Page 24: Troubleshooting
TROUBLESHOOTING If the unit malfunctions, check out the following before calling for service. If nothing operates even when switched on 1. There is a power failure. 2. The circuit breaker is inactivated. 3. The unit is not connected to the power supply. When no key operation is available 1. -
Page 25: Specifications
SPECIFICATIONS Name Pharmaceutical Refrigerator Model MPR-1013 MPR-1013R MPR-513 MPR-513R External dimensions W1800 x D600 x H1790 (mm) W900 x D600 x H1790 (mm) Internal dimensions W1700 x D465 x H1300 (mm) W800 x D465 x H1300 (mm) Effective capacity 1037 L 1034 L 489 L 486 L... -
Page 26: Performance
PERFORMANCE Model MPR-513, MPR-513R Temperature control range C to +14 Usable ambient temperature C to +35 Noise level 45dB (A scale) Maximum pressure 1500 kPa Rated voltage AC 110 V AC 115 V AC 220 V AC 220 V AC 230 V AC 240 V Rated frequency 60 Hz... -
Page 27: Safety Check Sheet
CAUTION Please fill in this form before servicing. Hand over this form to the service engineer to keep for his and your safety. Safety check sheet 1. Refrigerator contents : Risk of infection: Risk of toxicity: Risk from radioactive sources: (List all potentially hazardous materials that have been stored in this unit.) Notes : 2. - Page 28 7FB6P101277006 SANYO Electric Biomedical Co., Ltd. (5 April 2005) 10-15, Hongo 3-Chome Recycled paper Bunkyoku, Tokyo 113-8434 Japan Printed in Japan...
