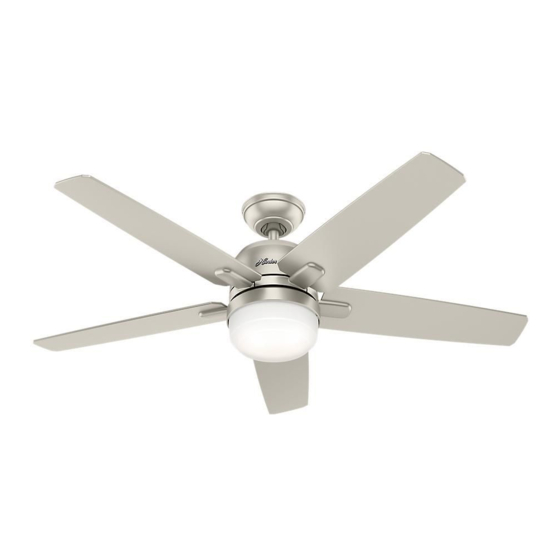

- Page 1 We’re here to help! Check out the installation video at: http://bit.ly/InstallCavera Cavera Installation Manual Model: 50476 Matte Black 50477 Fresh White 50478 Matte Nickel Fan weight ±2 lbs: 22.0 lbs (10.0 kg) ©2019 Hunter Fan Co. PG3796 r110119...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 Here is what comes in your box: 1886 Hunter Pro Tip: We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Do not discard the hardware bags or mix parts from different bags.
-
Page 4: Choosing The Right Installation Location
A little more information on Angled Mounting: For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit. -
Page 5: Installing The Ceiling Bracket
You have two options for installation. Pick which one works best for your location. Remove any existing Hunter Pro Tip: bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. The machine screws are the ones that came with your outlet box. -
Page 6: Hanging The Fan
1886 Hanging the Fan NOTICE To prevent damage to fan, ALWAYS lift holding either the fan housing or the downrod. DO NOT PICK THE FAN UP BY THE CANOPY OR WIRES. Place the downrod ball into the slot in the ceiling bracket. Progress Check: Your fan should look like this. -
Page 7: Wiring The Fan
If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualified electrician. You are going to need these: Hunter Pro Tip: Here is how to connect the wires: 4 Wire Nuts (these are in the... - Page 8 1886 Installing the Canopy Insert the two canopy screws found in the hardware bag. Canopy Screw Lift the canopy into place so that the screw holes are aligned. Installing the Blades: Put the blade washers, found in the hardware bag, onto the blade screws, found in the hardware bag.
-
Page 9: Assembling The Light Kit
1886 Assembling the LIght Kit 2 of 6 1 of 6 Light Kit Screw Light Kit Screw Insert the third light kit screw, Partially install two light kit screws, Feed the wire plug through the center found in the hardware bag, found in the hardware bag, hole of the upper switch housing,... -
Page 10: Preparing The Remote
1886 Preparing the Remote The remote control is NOTICE already paired for use. For your convenience, a remote • Always purchase the correct size and grade of function card is packed in battery most suitable for the intended use. with your remote. •... - Page 11 Follow the onscreen prompts to set up your fan. (fan style may vary). Hunter Pro Tip: Need to install the app later? When ready, turn the wall switch off and then on.
-
Page 12: Limited Lifetime Warranty
Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. provide maintenance to the fan, or acts of God (e.g. flood).
