Summary of Contents for Hunter Bayview

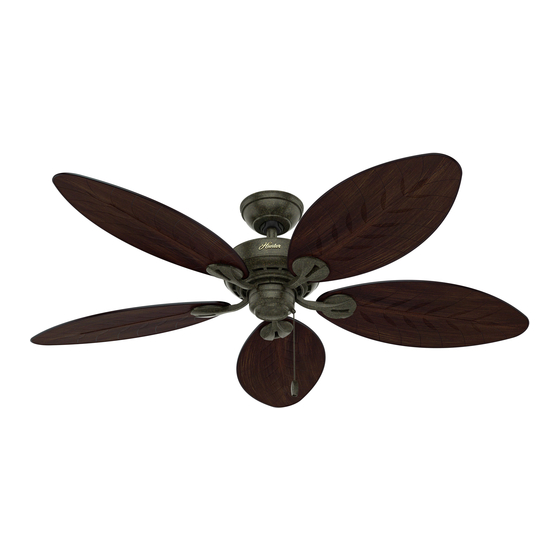

- Page 1 Bayview Installation Manual Model: 50473 Provencal Gold 50474 Blanco Fan weight ±2 lbs: 18.3 lbs (8.3 kg) ©2019 Hunter Fan Co. PG3851 r120919...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This product conforms to UL Standard 507.
- Page 3 We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Hunter Pro Tip: parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
-
Page 4: Choosing The Right Installation Location
A little more information on Angled Mounting: For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit. -
Page 5: Installing The Ceiling Bracket
You have two options for installation. Pick which one works best for your location. Remove any existing Hunter Pro Tip: bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. The machine screws are the ones that came with your outlet box. -
Page 6: Hanging The Fan
1886 Hanging the Fan NOTICE To prevent damage to fan, ALWAYS lift holding either the fan housing or the downrod. Place the downrod ball into the slot in the ceiling bracket. Progress Check: Your fan should look like this. Ceiling Bracket Downrod Hanging Fan Wiring... -
Page 7: Wiring The Fan
If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualified electrician. You are going to need these: Hunter Pro Tip: Here is how to connect the wires: 4 Wire Nuts (these are in the... -
Page 8: Installing The Canopy
1886 Installing the Canopy Insert the two canopy screws found in the hardware bag. Canopy Screw Canopy Screw Lift the canopy into place so that the screw holes are aligned. Installing the Blades: Insert grommets found in the hardware bag into the holes in the blades, then secure each blade to a blade arm with screws found in the hardware bag. - Page 9 Feed the pull chains from the fan switch down through the hole in the upper switch housing as shown. Attach the pull chain pendants to the fan pull chains. Hunter Pro Tip: Want to install your fan without a light kit? Note: Go to www.HunterFan.com/FAQs and click “How do I install my...
-
Page 10: Troubleshooting
• Check to see if any of the blades are cracked. If so, • Check the plug connection in the switch housing. replace all of the blades. Hunter Pro Tip: Cleaning the Fan Use soft brushes or cloths to prevent scratching. -
Page 11: Limited Lifetime Warranty
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the...
