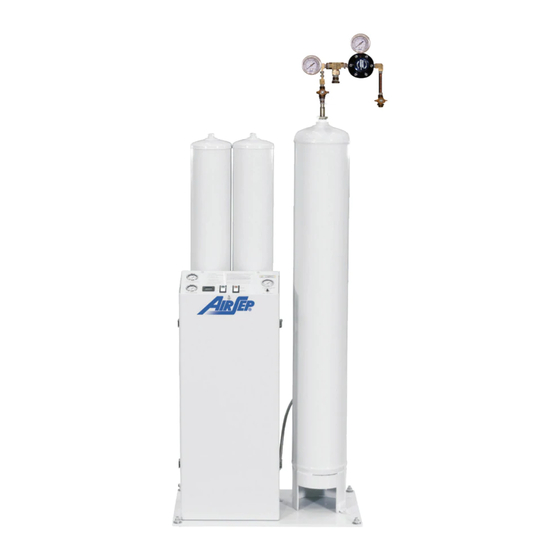

PSA Oxygen Generator
Models AS-A – AS-P
Instruction Manual
MN011-1
Rev A
Corporation • 260 Creekside Drive • Buffalo, NY 14228-2075 USA
®
AirSep
Phone: 1-800-320-0303 • Fax: (716) 691-1255 •
www.airsep.com
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Need help?
Do you have a question about the AS-D and is the answer not in the manual?
Ask a question
Questions and answers
Related Manuals for AirSep AS-D
Oxygen Equipment AirSep AS-A Instruction Manual
Psa oxygen generator (193 pages)
Oxygen Equipment AirSep AS-B Instruction Manual
Psa oxygen generator (193 pages)
Oxygen Equipment AirSep AS-20 Instruction Manual
Oxygen generator (91 pages)
Oxygen Equipment AirSep NewLife Elite Service Manual
Oxygen concentrator (52 pages)
Oxygen Equipment AirSep Onyx Instruction Manual
Psa oxygen generator (102 pages)
Oxygen Equipment AirSep NewLife eLite Patient Manual
Oxygen concentrator (25 pages)
Oxygen Equipment AirSep Focus Patient Manual
Focus portable oxygen concentrator (41 pages)
Oxygen Equipment AirSep Topaz Instruction Manual
Psa oxygen generator (94 pages)
Oxygen Equipment AirSep FreeStyle Patient Manual
Portable oxygen concentrator (36 pages)
Oxygen Equipment AirSep Focus Service Manual
Portable oxygen concentrator (24 pages)
Oxygen Equipment AirSep Focus Portable Patient Manual
Portable oxygen concentrator (35 pages)
Oxygen Equipment AirSep SeQual Workhorse Series Instruction Manual
Psa oxygen concentrator system (20 pages)
Oxygen Equipment AirSep ImPulse Elite Patient Manual
Ocd system (24 pages)
Oxygen Equipment AirSep SeQual Regalia Instruction Manual
Psa oxygen concentrator system (28 pages)
Oxygen Equipment AirSep FreeStyle Patient Manual
Portable oxygen concentrator (52 pages)
Summarization of Contents
Introduction
General
Overview of the instruction manual's content and purpose.
Warnings, Cautions, and Notes
Explains the meaning of safety symbols and messages within the manual.
References to Controls and Indicators
Describes how controls and indicators are referenced using uppercase characters and numbers.
Safety
General
Provides general information about oxygen and emphasizes reading the safety section.
Potential Hazards
Details hazards associated with oxygen, like flammability and electrical shock.
Safety Publications
Lists external publications for additional information on safe oxygen handling.
System Description
General
Explains the PSA process, molecular sieve function, and unit regeneration.
Components Description
External Components
Illustrates external components of the AS-B and AS-E models.
Control Panel
Details the controls and indicators on the oxygen generator's control panel.
Manifold Components
Shows illustrations and identifies manifold components for AS-B and AS-L models.
Accessory Kits
Lists the items included in starter kits and other available accessories.
Installation
Handling and Unpacking
Provides guidelines for inspecting, unpacking, and handling the oxygen generator.
Pre-installation Guidelines
Outlines requirements and considerations before installing the generator and receiver.
Installation Instructions
Details the steps for connecting air hoses, oxygen receiver, and power.
Operation
Initial Start-up
Step-by-step procedure for starting the generator for the first time or after shutdown.
Operation Modes
Explains auto and manual modes for generator operation based on application demand.
Shutdown Procedures
Procedure for safely shutting down the oxygen generator and allowing it to enter standby.
Normal Start-up
Describes the process for a normal start-up following a shutdown.
Extended Shutdown
Steps for shutting down the unit for 24 hours or longer.
Start-up after Extended Shutdown
Procedure for purging the receiver after an extended shutdown.
Maintenance
Daily Monitoring
Daily checks for proper drain valve function and condensate discharge.
Monthly Monitoring
Monthly inspection of filters, bowls, and drain valve performance.
Removing Front Cover
Instructions for safely removing the front cover for maintenance access.
Depressurizing Filters
Procedure to safely depressurize the filter assembly before maintenance.
Changing Filter Elements
Step-by-step guide for replacing particulate and coalescing filter elements.
Depressurizing Oxygen Generator
Steps to safely depressurize all generator components before maintenance.
Adjusting Feed Air Regulator
How to adjust the feed air regulator, with warnings about potential damage.
Adjusting Pressure Switch
Procedure for adjusting pressure switch settings for auto mode operation.
Troubleshooting
Technical Support
Contact information for AirSep Corporation's Commercial Products Service Department.
Troubleshooting Chart
A chart listing common problems, probable causes, and solutions for the oxygen generator.
Appendix Technical Data
Specifications Overview
General specifications for AS-A through AS-P models, including power and voltage requirements.
AS-A Specifications
Specific technical data and specifications for the AS-A model.
AS-B Specifications
Specific technical data and specifications for the AS-B model.
AS-D Specifications
Specific technical data and specifications for the AS-D model.
AS-D+ Specifications
Specific technical data and specifications for the AS-D+ model.
AS-E Specifications
Specific technical data and specifications for the AS-E model.
AS-G Specifications
Specific technical data and specifications for the AS-G model.
AS-J Specifications
Specific technical data and specifications for the AS-J model.
AS-K Specifications
Specific technical data and specifications for the AS-K model.
AS-L Specifications
Specific technical data and specifications for the AS-L model.
AS-N Specifications
Specific technical data and specifications for the AS-N model.
AS-P Specifications
Specific technical data and specifications for the AS-P model.
Appendix Warranty/Returns
Product Warranty
Details the warranty terms and conditions for the oxygen generator.
Limits of Liability
Outlines the limitations of AirSep's warranty and liability.
Returning for Service
Procedure for returning a unit or component for service or credit.
Appendix Parts List
AS-A Parts
Lists spare parts, kits, and emergency spares for the AS-A model.
AS-B Parts
Lists spare parts, kits, and emergency spares for the AS-B model.
AS-D Parts
Lists spare parts, kits, and emergency spares for the AS-D model.
AS-D+ Parts
Lists spare parts, kits, and emergency spares for the AS-D+ model.
AS-E Parts
Lists spare parts, kits, and emergency spares for the AS-E model.
AS-G Parts
Lists spare parts, kits, and emergency spares for the AS-G model.
AS-J Parts
Lists spare parts, kits, and emergency spares for the AS-J model.
AS-K Parts
Lists spare parts, kits, and emergency spares for the AS-K model.
AS-L Parts
Lists spare parts, kits, and emergency spares for the AS-L model.
AS-N Parts
Lists spare parts, kits, and emergency spares for the AS-N model.
AS-P Parts
Lists spare parts, kits, and emergency spares for the AS-P model.
Appendix Component Literature
Programmable Logic Controller (PLC)
Literature for OMRON ZEN V2 Units Programmable Logic Controller.
Filters (Wilkerson & Standard)
Literature for various Wilkerson and Standard filter models.
Regulators & Flow Controllers
Literature for Wilkerson regulators and Siemens flow controllers.
Pressure Switches
Literature for ASCO and Allen-Bradley pressure switches.
Valves
Literature for Neles-Jamesbury and various ASCO solenoid valves.
Table of Contents
Print
Rename the bookmark
Delete bookmark?
Delete from my manuals?
Login
Sign In
OR
Sign in with Facebook
Sign in with Google
Upload manual
Upload from disk
Upload from URL
Need help?
Do you have a question about the AS-D and is the answer not in the manual?
Questions and answers
