- Page 1 ImPulse ™ Elite OCD System Patient Manual 401 Creekside Drive • Buffalo, New York 14228-2085 USA ImPulse Elite Patient Manual ™...
- Page 2 ImPulse Elite Patient Manual ™...
-
Page 3: Table Of Contents
Turning Off the Unit ..................12 Alarm Light Indicators ................. 12 Switching to Continuous Flow ..............13 Removing/Replacing the Cylinder ............. 13 ImPulse Elite as a Portable Unit ................ 14 Proper Care and Maintenance ................15 Troubleshooting Guide ..................16 Equipment Provider Information Specifications ..................... - Page 4 ImPulse Elite Patient Manual ™...
-
Page 5: Components

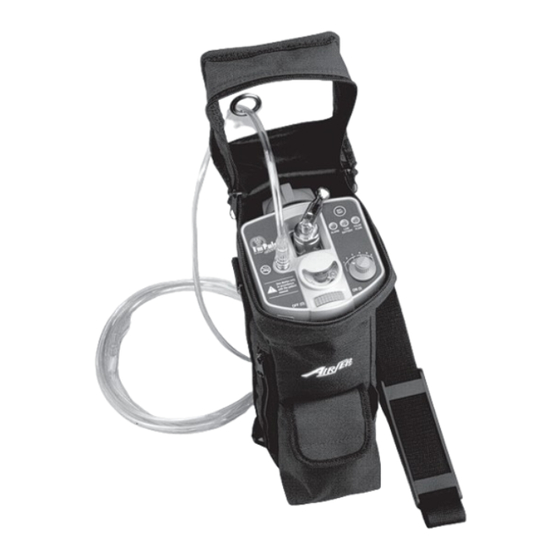

Figure 1 below: ImPulse Elite Oxygen Conserving Device Figure 1 Not shown: • (1) One Alkaline “D” Energizer Battery ® • ImPulse Elite OCD System Patient Manual Note: The carrying case is available separately. ImPulse Elite Patient Manual ™... -
Page 6: Features
Cannula connects in seconds. Patient-accessible controls. • Oxygen-conserving technology allows smaller cylinders to last longer. • With ImPulse Elite, the “D” battery provides the greatest ambulation time. For most patients, 10–18 months. • Pulse modes offer up to 6 lpm efficiency. •... -
Page 7: Introduction
6 lpm. Initial Setup As part of your initial set up with ImPulse Elite, your clinician may choose to assess your saturation level through pulse oximetry. This helps to ensure proper titration while using the oxygen conserving device. -
Page 8: Safety
Safety ImPulse Elite meets applicable safety and environmental regulations. This assurance means you can fully enjoy all the benefits of this device. However, with all electronic devices and applications that require oxygen, normal care and precautions must be followed. Before you attempt to use this oxygen conserving device and a portable oxygen cylinder, read all warning and caution notes in this section of the manual. - Page 9 Cautions Maintain a backup supply of oxygen, and periodically check the contents gauge on the unit, which monitors the consumption of oxygen in the cylinder. Do not use this device with a humidifier or expose it to water or other liquids. Do not expose the device to extreme temperatures.
-
Page 10: Description Of Parts
Description of Parts As you can see in Figure 2 below, all parts are within easy reach and allow you to adjust your ImPulse Elite unit as necessary. Follow your clinician’s instruc- tions before making any change to the flow selector setting. -
Page 11: How To Operate The Unit
Your Equipment Provider will review proper cylinder care and connection procedures with you the first time you operate your unit. Refer to the procedure on the following page should you need assistance with connecting your ImPulse Elite unit to an oxygen cylinder. ImPulse Elite Patient Manual... - Page 12 To connect the ImPulse Elite to any post-valve cylinder: Loosen the ImPulse Elite securing knob. To ensure a leak- tight seal between the cylinder valve and the unit, make sure the Sealing Washer sealing washer is present in the center of the unit before installation (Figure 3).
-
Page 13: Testing And Replacing Battery
Testing and Replacing Battery ImPulse Elite requires just one 1.5 volt “D” size alkaline battery (Energizer recommended) for full operation. Battery life is dependent upon the predeter- mined unit settings, your breathing rate, and the length of daily ambulation time. -
Page 14: Turning On The Unit For Proper Oxygen Usage
Turning On the Unit for Proper Oxygen Usage Note Do not use a mask with the ImPulse Elite unit. A mask may not conform to the face properly enough for the unit to fully sense inhalation. Do not use pediatric or low flow cannulas with the ImPulse Elite unit as their smaller tubing diameters negatively affect delivery volumes. - Page 15 Turn the cylinder valve slowly one full turn counter- Figure 11 clockwise to begin oxygen flow. Make sure the cylinder contents gauge on the ImPulse Elite unit registers within the green shaded/green zoned areas. This indicates an adequate oxygen supply in the cylinder. (If the cylinder contents gauge indicates the red REFILL zone, the cylinder needs to be replaced.)
-
Page 16: Turning Off The Unit
Turning Off the Unit Turn the oxygen cylinder valve fully clockwise to stop oxygen flow. Set the ON/OFF power switch on the ImPulse Elite unit to the OFF position. Note If you do not set the unit’s ON/OFF power switch to OFF when the unit is not in use, the alarm sounds until the battery fully discharges. -
Page 17: Switching To Continuous Flow
Removing/Replacing the Cylinder To easily remove the ImPulse Elite unit from a cylinder: 1. Close the oxygen cylinder valve by rotating the valve completely clockwise. 2. Press the BAT. TEST button OR temporarily set the PULSE FLOW/ CON- TINUOUS FLOW switch to the CONTINUOUS FLOW setting until no oxygen can be heard venting from the unit. -
Page 18: Impulse Elite As A Portable Unit
ImPulse Elite as a Portable Unit The ImPulse Elite unit and its accessories are light weight and portable. This means that ImPulse Elite can go virtually anywhere you go. Cautions Do not expose the device to, or submerge it in, water. -
Page 19: Proper Care And Maintenance
(isopropyl alcohol), concentrated chlorine-based products (Ethylene Chloride), and oil-based products (Pine-Sol, Lestoil). These are NOT to be used to clean the plastic housing on the ImPulse Elite OCD. These chemicals and the cleaners that contain them will crystallize the plastic and break down the plastic’s molecular properties. -
Page 20: Troubleshooting Guide
Troubleshooting Guide If your unit fails to operate as described in this manual, first review the following chart for possible causes and solutions. If necessary, contact your Equipment Provider. Problem Possible Cause Solution No battery in unit, or Power switch ON Replace battery. -
Page 21: Equipment Provider Information
Equipment Provider Information Specifications Dimensions: 4.39 in. x 5.58 in. x 2.55 in. 11.15 cm x 14.17 cm x 6.48 cm Weight: 24 oz (with D size battery) 682 g Power: (1) 1.5 V “D” alkaline battery Indicators: Alarm/No inspiration — Audible/Visual (red) Low Battery —... -
Page 22: Limited Warranty
Each item of equipment for which a warranty claim is asserted shall, at the request of AirSep Corporation, be returned on a prepaid basis with proof of purchase date to the AirSep factory at the expense of the purchaser. The purchaser will be responsible for return freight charges. - Page 23 ImPulse MN092-1 Elite Patient Manual 04/04 ™...
- Page 24 For service on your ImPulse™ Elite oxygen conserving device, contact: Manufactured by AirSep Corporation 401 Creekside Drive Buffalo, NY 14228-2085 USA ImPulse Elite Patient Manual ™...
