OC 10 Crocodile Tail Loop Setup Utilising Tuner Out And One Loop

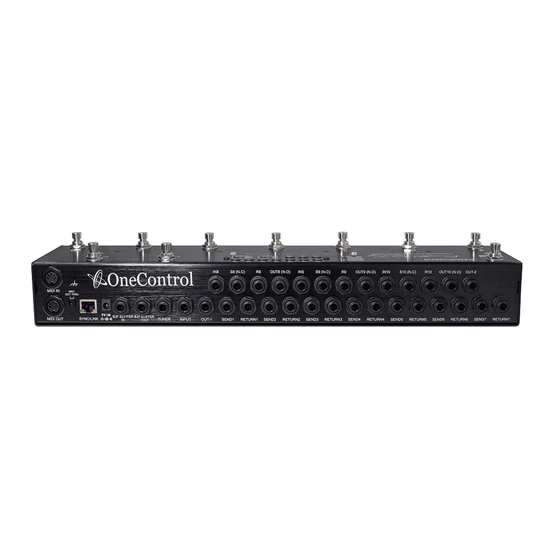

The above setup is using the OC10 in it's most basic form were the guitar signal is run directly into
the rear main input jack.
The tuner output is selected when the OC10 is in program mode via the top row left hand footswitch
labelled "TUNER/L10", when selected this mutes all output from unit except signal running from tuner
jack output.
Loop 1 is being utilised in this example. loops 1 thru 7 are internally connected so signal from main
input will always be running to OUT 1 and OUT 2 whether pedals are connected or not.
OUT 2 is being utilised in this example to run directly to amp input, OUT 1 and OUT 2 are in parallel
and are both supplied signal from the input jacks through loops 1 to 7, OUT 1 would be utilised if sig-
nal was required to run directly into IN 8 which is the start of the second run of loops (8,9,10)
SETUP 1
KEY
All Red Lines Are Cables
Taking Signal Into OC10
All Green Lines Are Cables
Taking Signal Out Of OC10
Advertisement
Related Manuals for One Control OC10
Summarization of Contents
Setup 1: Basic Guitar Signal Routing
Basic Guitar Signal Routing
Guitar signal routed directly into the OC10 rear main input jack for basic setup.
Tuner Output Functionality
Tuner output mutes amp signal, allowing silent tuning via a dedicated footswitch.
Loop 1 and Internal Connections
Loop 1 used, loops 1-7 internally connected to OUT 1/2 regardless of pedal connection.
Output 1 and 2 Usage
OUT 2 to amp input; OUT 1/2 are parallel, fed from loops 1-7.
Setup 2: Buffer, Tuner, Loop 1 & 8 Configuration
Buffer, Tuner, Loop 1 & 8 Configuration
Guitar into Buffer, Tuner out, Loop 1, and Loop 8 utilized in this setup.
Buffer Circuit Benefits
Buffer circuit enhances signal strength and clarity, ideal for long cable runs and multiple effects.
Loop 1 Internal Connectivity
Loop 1 used; loops 1-7 internally connected to OUT 1/2 regardless of pedal connection.
Loop 8 Connectivity and Linking
Loop 8 connected via S8/R8; loops 8-10 require manual linking for signal flow.
Loop 8-10 Output Routing
Loop 8 output as main out; subsequent loops (8-10) need linking for signal progression.
Setup 3: Buffer, Loops 1-7, 8-9, and 10 for Amp Switching
Buffer, Loops 1-7, 8-9, and 10 for Amp Switching
Utilizes buffer, loops 1-7 for effects, loops 8-9 for effects, and loop 10 for amp channel switching.
Buffer Circuit for Signal Integrity
Buffer circuit enhances signal strength and clarity, especially for long cable runs and multiple effects.
Loops 1-4 and Internal Connections
Loops 1-4 used; loops 1-7 internally connected to OUT 1/2 regardless of pedal connection.
Output 1 Routing to Loop 8
Output 1 is conveniently routed into the input of Loop 8 for signal flow.
Loop 8 to 9 Linking
Echo unit in Loop 8 connected via S8/R8; OUT8(N.O) linked to IN9 for signal to Loop 9.
Loop 9 to Amplifier Connection
Reverb in Loop 9 connected via S9/R9; OUT9(N.O) sends signal to amplifier input.
Loop 10 for Amp Channel Switching
Loop 10's S10(N.C) socket used for amp channel switching via mono cable.
Setup 4: FX Loop Integration and Signal Flow
FX Loop Integration and Signal Flow
Utilizes buffer, loops 1-7 to amp input, loops 8-9 via amp FX loop.
Buffer Circuit for Signal Integrity
Buffer circuit enhances signal strength and clarity, ideal for long cable runs and multiple effects.
Loops 1-7 Internal Connectivity
Loops 1-7 internally connected to OUT 1/2 regardless of pedal connection.
Output 2 to Amplifier Input
Output 2 is conveniently routed into the amplifier input for signal.
FX Loop Send to Loop IN 8
Amplifier FX loop send connects to OC10 Loop IN 8 for signal return.
Loop 8 to 9 Linking for FX Return
Loop 8 connected via S8/R8; OUT8(N.O) linked to IN9 for signal to Loop 9, then OUT9(N.O) to FX return.
Setup 5: MIDI Control and FX Loop Usage
MIDI Control and FX Loop Usage
Utilizes buffer, loops 1-7 to amp input, loops 8-9 via amp FX loop with MIDI control.
Buffer Circuit for Signal Integrity
Buffer circuit enhances signal strength and clarity, ideal for long cable runs and multiple effects.
Loops 1-7 Internal Connectivity
Loops 1-7 internally connected to OUT 1/2 regardless of pedal connection.
Output 2 to Amplifier Input
Output 2 is conveniently routed into the amplifier input for signal.
FX Loop Send to Loop IN 8
Amplifier FX loop send connects to OC10 Loop IN 8 for signal return.
Loop 8 to 9 Linking for FX Return
Loop 8 connected via S8/R8; OUT8(N.O) linked to IN9 for signal to Loop 9, then OUT9(N.O) to FX return.
MIDI Control Activation and Transmission
MIDI control via Midi On/Off switch; TX light must be lit for Midi transmission.
