One Control Minimal Series User Manual

User's Manual

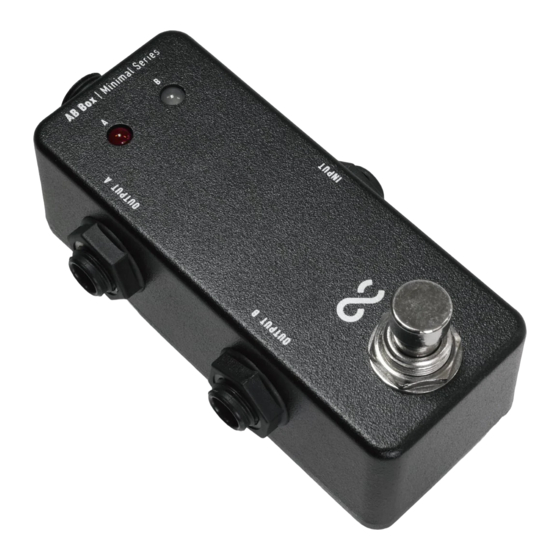

Minimal AB Box
Thank you for your purchase of the Minimal AB Box by One Control.
Use the Minimal AB Box to control the direction of your signal path in order to select amps, mute
your signal, control what effects you'd like to use, and various other uses.
The AB Box has one input and two outputs. Plug your guitar into the input and then run out from
the A and B outputs to your desired destination.
Use the Minimal AB Box as a Mute/Tuner switch. Connect your tuner to one of the two outputs
and you'll take your tuner out of your signal chain when you are playing. Even without a tuner
connected to the AB Box it can act as a basic mute switch.
The AB Box can also be used as an input selector. For example if you regularly switch guitars while
playing live, plug two guitars into the two outputs and run from the input to your amp. That being
said the inputs and outputs can be used in both directions.
When the switch is pressed in the outputs will be toggled and also the red and blue LEDs will
indicate which output is currently being used. The Minimal AB Box can also be used without a
power supply however; the LEDs will not be active.
