T
ECHNICAL INFORMATION
Model No.
Description
C
ONCEPT AND MAIN APPLICATIONS
Models BDA340 and BDA350 have been developed as the DC version tools
of Model DA3010F, featuring:
Compact and lightweight design obtained by using Li-ion battery
as a power unit
High power 4-pole motor for excellent drilling performance
Sister tools featuring Keyless drill chuck are also available
as Models BDA341/BDA351.
(See Technical Information of BDA341/BDA351 for detailed information.)
These products are available in the following variations.
BDA340
Model No.
BDA340Z
BDA340
BDA340RFE
(Li-ion 3.0Ah)
BDA340RF
BDA350
Model No.
BDA350Z
BDA350
BDA350RFE
(Li-ion 3.0Ah)
BDA350RF
S
pecification
Model
Voltage: V
Battery
Capacity: Ah
Cell
Max output: W
No load speed: min-
Drill chuck type
Capacity of drill chuck: mm (")
Capacity: mm (")
Electric brake
Variable speed control
Reverse switch
LED job light
Net weight: kg (lbs)
S
tandard equipment
Side grip ... 1
Chuck key ... 1 Key holder... 1
O
ptional accessories
Charger DC24SA
(for North America only)
Charger DC24SC
(except for North America)
BDA340/BDA350

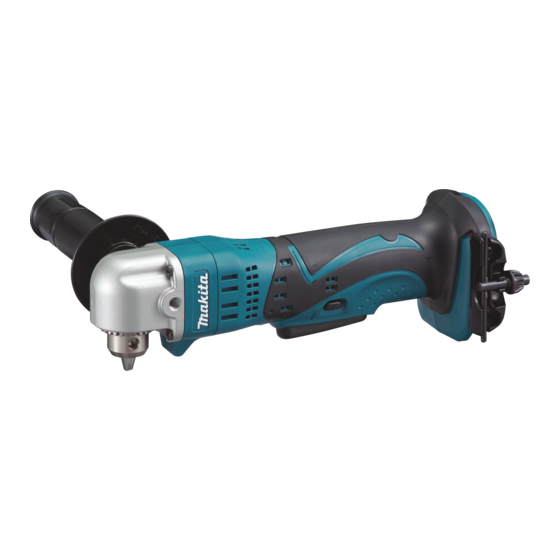

14.4V/18V Cordless Angle Drill 10mm (3/8")
Battery
Battery
type
quantity
cover
No
---
No
2
1
BL1430
1
No
Battery
Battery
type
quantity
cover
No
---
No
2
1
BL1830
1
No
BDA340
=rpm
0 - 1,700
1
Steel
Wood
1.5 (3.3)*
Battery BL1430 (for BDA340)
Battery BL1830 (for BDA350)
Plastic carrying
Charger
case
No
No
DC18RA
Yes
Plastic carrying
Charger
case
No
No
DC18RA
Yes
BDA350
14.4
3.0
Li-ion
230
280
0 - 1,800
Keyed
1.5 (1/16) - 10 (3/8)
10 (3/8)
25 (1)
Yes
Yes
Yes
Yes
1.6 (3.5)**
Note: The standard equipment for the tool shown above may differ
by country.
BDA340
BDA350
Dimensions: mm (")
BDA340
Length (L)
Width (W)
Height (H)
97 (3-13/16) 115 (4-1/2)
Offered to
All countries
North America
All countries except
North America
Offered to
All countries
North America
All countries except
North America
18
*with Battery BL1430
**with Battery BL1830
Drill bits for wood
Fast charger DC18RA
Drill bits for steel
Belt clip
PRODUCT
P 1/ 7
L
H
W
BDA350
314 (12-3/8)
79 (3-1/8)
