Makita BFL300F Instruction Manual

Makita BFL300F Instruction Manual

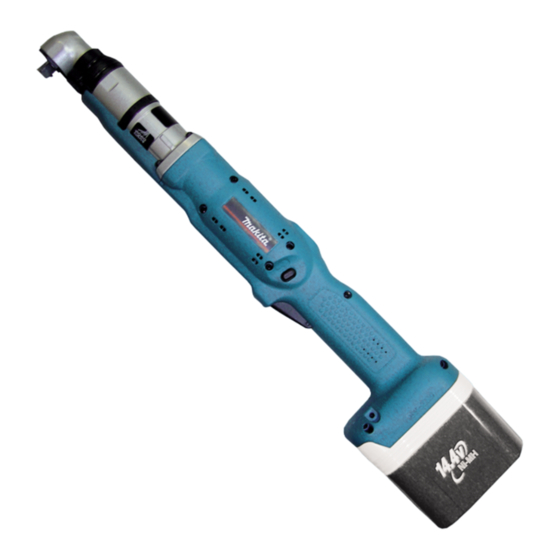

Cordless angle nut runner
Hide thumbs Also See for BFL300F:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Technical Information, Instruction Manual
Cordless Angle Nut
Runner
MODEL BFL300F
MODEL BFL400F
005735
I N S T R U C T I O N
M A N U A L
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading

Related Manuals for Makita BFL300F

Summary of Contents for Makita BFL300F

  • Page 1 Cordless Angle Nut Runner MODEL BFL300F MODEL BFL400F 005735 I N S T R U C T I O N M A N U A L WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

  • Page 2: Specifications

    SPECIFICATIONS Model BFL300F BFL400F Hard joint 16 - 30 N • m (142 - 266 in • lbs) 25 - 40 N • m (221 - 354 in • lbs) Fastening torque Soft joint 16 - 30 N • m (142 - 266 in • lbs) 25 - 40 N • m (221 - 354 in • lbs) Square drive 9.5 mm (3/8”)
  • Page 3 12. Remove any adjusting key or wrench Electrical safety before turning the power tool on. A wrench 4. Power tool plugs must match the outlet. or a key left attached to a rotating part of the Never modify the plug in any way. Do not power tool may result in personal injury.
  • Page 4 25. Use power tools only with specifically before use. Many accidents are caused by poorly maintained power tools. designated battery packs. Use of any other battery packs may create a risk of injury and 21. Keep cutting tools sharp and clean. Prop- fire.
  • Page 5 5. Do not leave the tool running. Operate the 7. Some material contains chemicals which tool only when hand-held. may be toxic. Take caution to prevent dust inhalation and skin contact. Follow mate- 6. Do not touch the drill bit or the workpiece rial supplier safety data.
  • Page 6 Do not store the tool and battery cartridge in Do not incinerate the battery cartridge even if it locations where the temperature may reach or is severely damaged or is completely worn out. exceed 50°C (122°F). The battery cartridge can explode in a fire. Be careful not to drop or strike battery.

  • Page 7: Functional Description

    FUNCTIONAL CAUTION: DESCRIPTION • Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge 005736 • Always switch off the tool before insertion or removal of the battery cartridge.
  • Page 8 This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation. When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.
  • Page 9 This indicates the abnormal Flickers in red and A series of short Ask Makita service Motor malfunction condition of the motor. The tool green beeps centers. does not operate.

  • Page 10: Adjusting The Fastening Torque

    Adjusting the fastening torque 005750 When you wish to drive machine screws, wood screws, hex bolts, etc. with the predetermined torque, adjusting the fas- tening torque as follows. 1. First remove the battery cartridge from the tool. 2. Loosen and remove the screw that secures ring. 3.

  • Page 11: Operation

    ASSEMBLY CAUTION: • Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. Selecting correct socket There are different types of sockets for some models depending on applications. Choose and install a correct socket for your application.

  • Page 12: Maintenance

    CAUTION: • These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
  • Page 13 Stamp Timbre Makita Canada Inc. 1950 Forbes Street, Whitby, Ontario L1N 7B7 Fold...
  • Page 14 Your answers to the following questions are appreciated. 1. This product was purchased from? 3. How did you first learn of Makita Power Tools? Hardware/lumber Store Industrial Supply Magazine/Newspaper Catalog Tool Distributor Other ( From dealer Other ( Store display 2.
  • Page 15 When you need service... DATE • Explain the problem in a letter PURCHASED: • Enclose the letter with the tool DEALER’S NAME • Package carefully and send prepaid & ADDRESS: to the nearest Makita factory or authorized service centre MODEL NO.: SERIAL NO.:...

  • Page 16: Warranty Policy

    WARRANTY. “The Makita Warranty is the only and the entire written warranty given by Makita for the Makita tools. No dealer or his agent or employee is authorized to extend or enlarge upon this warranty by any verbal or written statement or advertisement.”...

This manual is also suitable for:

Bfl400f
