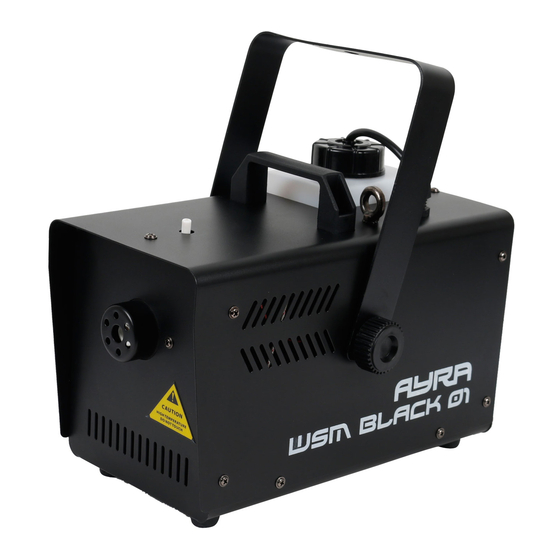

- Page 1 WSM Black 01 / 02 / 03 DMX Fog Machine User manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 29-07-2017 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing the Ayra WSM Black smoke machine. This powerful device produces clouds of fog which will fill the room with a misty fog. This user manual provides all the information you need in order to use this product safely and properly.
- Page 3 Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks.
- Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Do not dispose of batteries in general household waste. Batteries can contain substances that may harm the environment. If they are properly recycled, used batteries are a valuable source of reusable materials. Contact your local government for information on battery disposal. Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 General instructions - Only use water-based smoke machine fluid. This device is not suitable for oil-based smoke fluids. - Ayra recommends using Ayra brand fluids with this smoke machine. This device is optimised for use with these fluids. - Fluids by other brands may shorten the lifespan of this device as a result of residue left behind in the pipework.
- Page 7 effects visible. Stop producing smoke immediately if the visibility in the room at any given point is 2 metres or less. - The smoke produced by this machine is not hazardous to your health as long as the machine is monitored at all times and there is plenty of ventilation during use.
- Page 8 10. IEC C14 power input with fuse holder 11. fluid level indicator The WSM Black 02 is shown above, the WSM Black 01 and 03 models feature similar lay-outs and the same connections The information in this user manual is subject to change at any time without notice.
- Page 9 Remote control units The WSM Black fog machines are equipped with various option for operation on a distance. The user can choose between three ways of remote control, each with its own characteristics. This way, the user is able to choose the right operating mode for any occasion. The third way of operation, not covered below, is through DMX.
- Page 10 The use of other types of fluids could have a negative impact on the lifespan of this machine, and could result in hazardous hot spatters of fluid. The WSM Black 01 has a tank capacity of approximately 1.8 litres. The WSM Black 02 and 03 both have tank capacities of approximately 2.3 litres.
- Page 11 Any damages that occur as a result of tampering with or sabotaging the thermal protection unit will not be covered under the warranty Ayra offers for this product. Triggering alarm systems If this machine is used in a public venue where an alarm installation is present, it is advised to contact the owner of the venue or installer of the alarm system.
- Page 12 Ensure the safety of yourself and your audience - NEVER simply switch off a smoke detector or alarm system! Parts and repair This product does not include spare parts and can not be repaired by the user. All inspections and overall maintenance should be done by a specialist.
- Page 13 You can use the timer function to set smoke intervals and duration, or regulate a smooth output that ranges from 0 to 100%. The remote has buttons for triggering the machine manually or producing a steady output level. The LED indicators on the remote show you which function is active at any given time as well as the status of the smoke machine.
- Page 14 Ayra does not recommend using specific smoke machine cleaning fluids for this type of machine. Using additives for smoke fluid (scented fluids) The use of smoke fluid additives is not recommended, as they can have a negative impact on the performance and lifespan of the smoke machine.
- Page 15 Smoke machine and DMX troubleshooting If you have a problem with your device, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common smoke machine and DMX-related problems, but it does not and cannot cover every eventuality.
- Page 16 puffs of smoke when it will produce small puffs of smoke as it is cooling has not been down. commanded to do so Machine is warming up Once the machine has been switched on, it will produce small puffs of smoke as it is warming up. The DMX signal Damaged/defective cables Check and replace the DMX cables if necessary.
- Page 17 General specifications: - powerful smoke machine - works with water-based smoke fluids - optimal results with Ayra fluids - LED status indicators illuminate fluid tank (red, blue) - fluid level can be seen on the rear of the machine - equipped with eyelet for optionally available safety cable when used suspended...
