Summary of Contents for Ayra WSM Junior

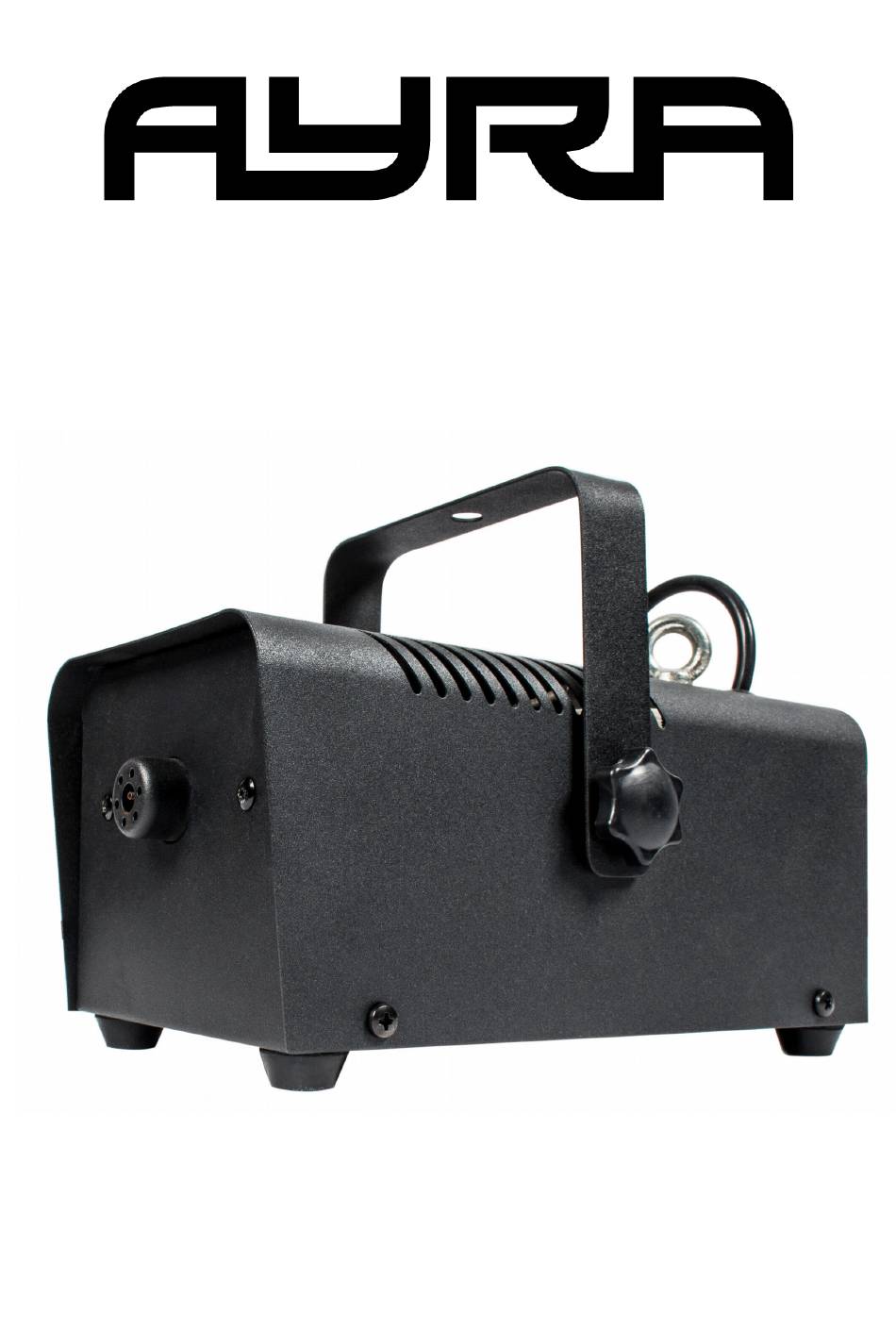

- Page 1 WSM Junior 400W fog machine with wired remote control User manual The information and illustrations shown in this user manual are subject to change without notice. User manual version: 1.0 Creation date + author initials: 03-11-2015 RV Revision date + author initials: -...

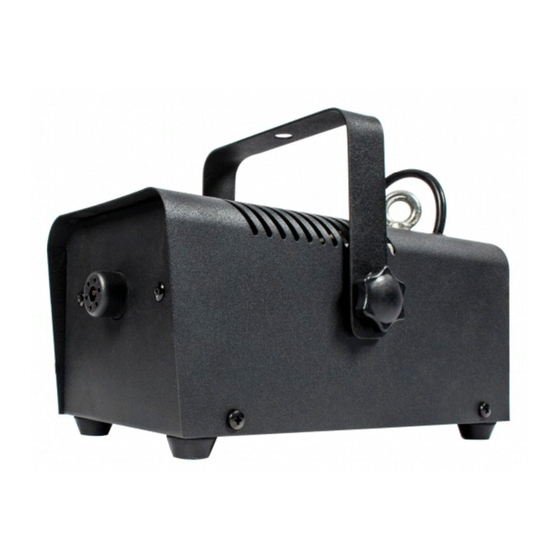

- Page 2 If you encounter any problems during use, contact your local dealer for more information and help. The WSM Junior is a compact fog machine which projects clouds of fog when needed. It is designed as a party effects machine and is mostly used in establishments like community centres, bars, dancing schools, rollerskating rinks, bowling alleys etc.
-
Page 3: Safety Instructions
Safety instructions WARNING! Always keep this device away from damp or wet conditions! Hazardous electric shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and/or hazardous situations, like fires or electric shocks! WARNING! Be careful with the operation of this device. - Page 4 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in ways other than described in this user manual may cause damage and injury. Ayra cannot be held responsible for any damage or injury caused by improper use.
- Page 5 If the device is intensively used, the cleaning frequency must be increased. Disconnect the fixture when it is going to be serviced. Fuses: - The main fuse of this device is to be found on the rear of the device. In most cases, directly next to the power inlet.
- Page 6 - Only use water-based fog liquids! - Ayra recommends the use of Ayra fog machine fluid only. Other types of fog liquid may cause permanent damage or bad performance. When the wrong type of fog liquid is used, the machine might spray hot liquid.
- Page 7 Never hold the machine in your hands during use! - This device is not intended to be installed directly above publicly accessible areas. - When using the device in a hanging position, always mount a G-clamp or half coupler to the bracket, or use bolts to install the bracket directly to a ceiling or beam.
-
Page 8: Box Contents
Box contents Box contents 1x Ayra WSM Junior fog machine with attached remote control 1x power connection cable IEC C13 to Schuko 1x power connection cable IEC C13 to UK Unit and accessory inspection - If the cable appears broken or has visible damage, do not use it. - Page 9 Device overview 1. Fog machine nozzle (fog output) 2. Ventilation slot 3. Hanging bracket 4. Safety eyebolt 5. Feet 6. Remote control cable 7. On/off switch 8. Power input 9. Fluid level view 10. Fluid tank cap 11. Remote control button 12.
- Page 10 The WSM Junior can also be installed to a lighting stand or truss system. It may be necessary to install clamps or couplers to the device in order to ensure a secure attachment. The device is equipped with an eyebolt for a safety cable.
- Page 11 - Your installation spot must be in optimal condition. Check your installation spot for corrosion, cracks, dents and strength. - Electrical components (connectors and cables) must be in optimal condition. No form of damage (cuts, exposed wire cores or any other irregularities) should be visible. If any visual or mechanical damage is detected, contact your local dealer or a specialised technician.
- Page 12 This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions. The troubleshooting section applies to Ayra WSM fog machines. It is possible that not all the described problems, causes and solutions apply to your situation as product details may vary from product to product.
-
Page 13: Technical Specifications
400W heating element compact and robust design, suitable for fixed and mobile applications wired remote control with status LEDs for easy operation optimised for Ayra fog fluids heating time: 4 to 5 minutes tank capacity: 0.3 liter output power: 300cft / 8.5 m³ per minute...
