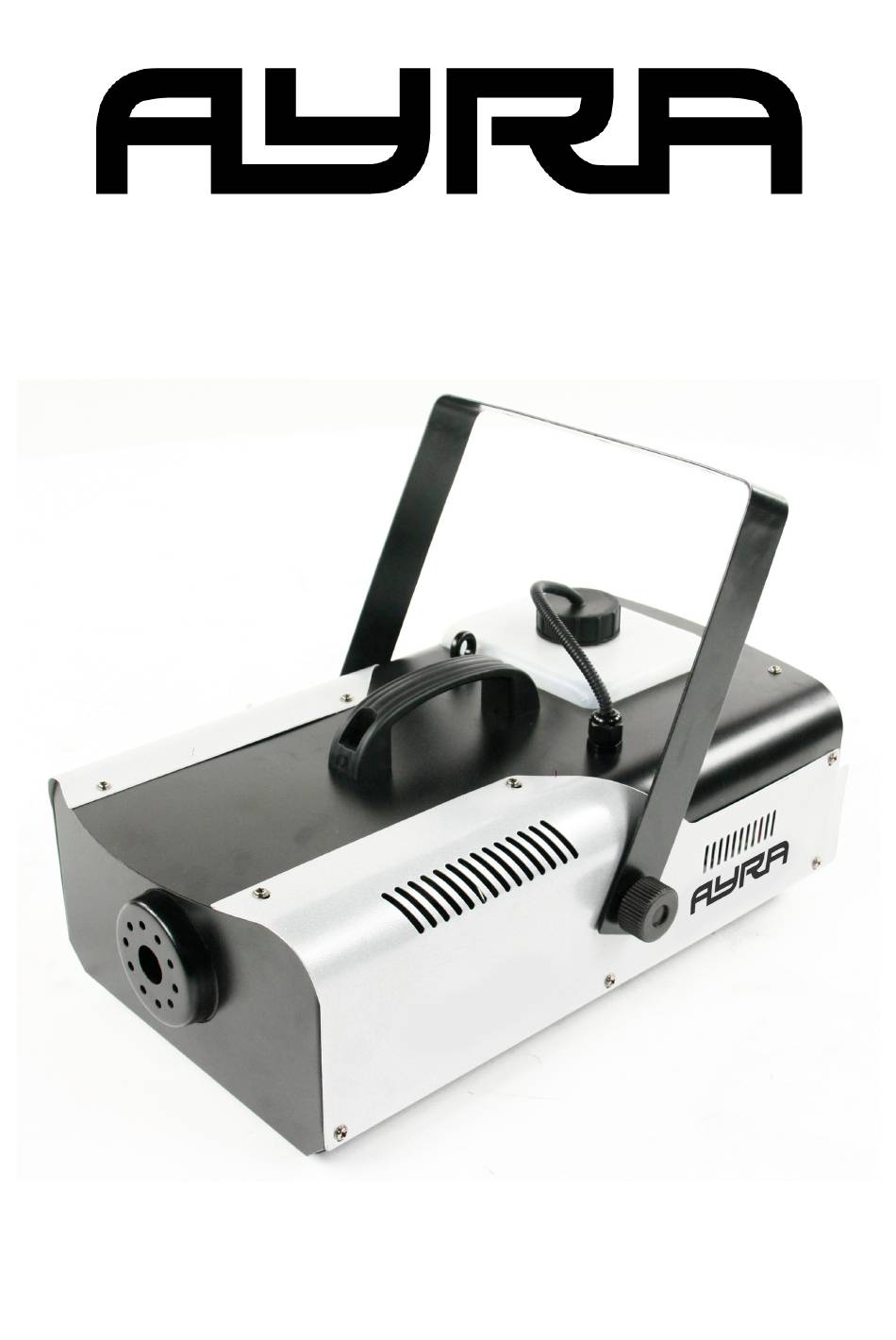

WSM 02 – WSM 03 MKIII
1200W – 1500W DMX fog machine
User manual
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0
Creation date + author initials: 11-02-2014 RV Revision date + author initials: 25-11-2014 RV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSM 02 MKIII and is the answer not in the manual?

Questions and answers

Related Manuals for Ayra WSM 02 MKIII

Summary of Contents for Ayra WSM 02 MKIII

  • Page 1 WSM 02 – WSM 03 MKIII 1200W – 1500W DMX fog machine User manual All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 11-02-2014 RV Revision date + author initials: 25-11-2014 RV...

  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device.
  • Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
  • Page 4 rating. - Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against electrical shocks and short circuit. - Always mount the fuse cover back to the fuse compartment. All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 11-02-2014 RV Revision date + author initials: 25-11-2014 RV...
  • Page 5 - Only use water-based fog liquids! - Ayra recommends the use of Ayra fog machine fluid only. Other types of fog liquid may cause permanent damage or bad performance. When the wrong type of fog liquid is used, the machine might spray hot liquid.
  • Page 6 - The handle provided on the device is only to be used during transport, not during operation. - This device is not intended to be installed directly above publicly accessible areas. - When using the device in a hanging position, always mount a G-clamp or half coupler to the bracket, or use bolts to install the bracket directly to a ceiling or beam.

  • Page 7: Box Contents

    Box contents Box contents 1x WSM fog machine (WSM 02 MKIII or WSM 03 MKIII) 1x power cable to Schuko 1x power cable to UK connector 1x wired controller (battery pre-installed) 1x keychain wireless remote control 1x mounting bracket Unit and accessory inspection - Always check the unit, box and accessories for possible damage before use.

  • Page 8: Device Overview

    Device overview 1. Fog machine nozzle (fog output) 2. Transport handle 3. Ventilation slots 4. Liquid hose and liquid tank cap 5. Wired control input (5-pin connector) 6. DMX dipswitch panel with indication LED 7. On/off switch 8. DMX input 9.

  • Page 9: Setting Up The Unit

    Setting up the unit To make sure that you use this machine as intended, Ayra recommends to follow the steps described below. Liquid Before turning on the machine, make sure there is enough fog liquid in the tank. This machine is designed and set for Ayra fog fluid.
  • Page 10 For optimal use of the fog machine on DMX, some basic knowledge is needed. Contact your local dealer for more information. Connect the fog machine to your DMX-controller, using standard XLR male to XLR female cables. Select the correct DMX starting address by using the dipswitch panel. The dipswitch value is shown for each dipswitch.
  • Page 11 Any other fluids used with this device may not result in optimal performance and could even cause sputtering at the nozzle of the machine (causing hot drips of fluid being sprayed from the nozzle output!). Ayra cannot be held responsible for any damage and/or injuries caused by improper use of the device, or when wrong types of fog machine fluids are used.
  • Page 12 This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions. The troubleshooting section applies for Ayra WSM fog machines. It is possible that not all described problems, causes and solutions apply to your situation as product details may vary from product to product.
  • Page 13 the battery needs to be replaced Fog machine does not respond to Remote not connected properly Reconnect the remote and make remote commands sure the connector is plugged in correctly. Fog machine does not respond to DMX not connected properly Check if a DMX signal is present.

  • Page 14: Technical Specifications

    Technical specifications WSM02 MKII WSM03 MKII Heating element 1200 Watt 1500 Watt Pump 40DCB 55DCB Output distance 8-12m 10-14m Warm-up time Approximately 6 Approximately 7 minutes minutes Tank capacity Approximately 2.3 liters Fog output 350m³ per minute 570m³ per minute Ready-indicator inside tank Wireless keychain remote included Wired timer remote included...
