Summary of Contents for AOC L22W898

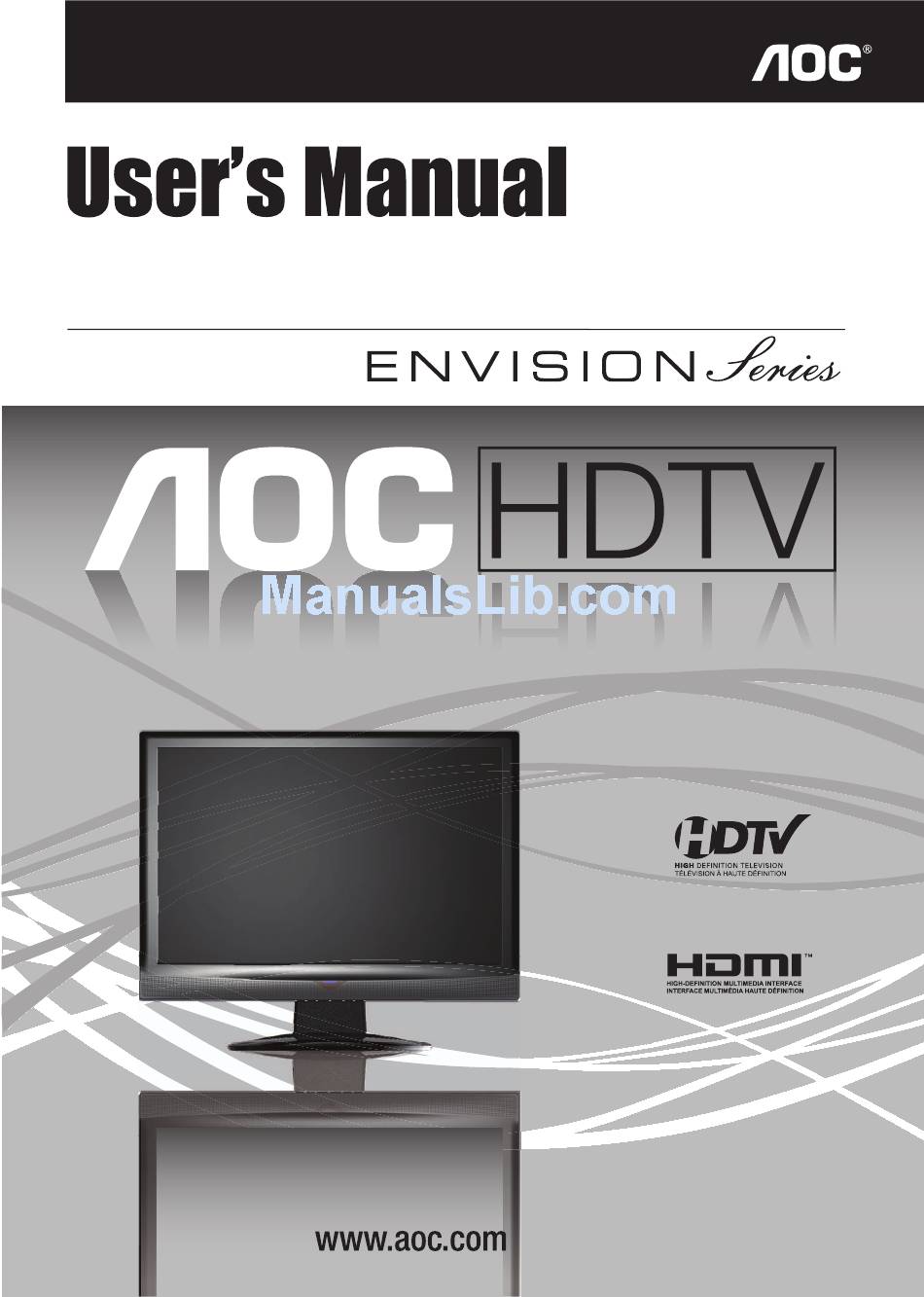

  • Page 1 22” LCD TV L22W898...
  • Page 2: Table Of Contents

    Content FOR YOUR SAFETY ......................2 PRECAUTIONS AND REMINDERS .................. 4 IMPORTANT SAFETY INSTRUCTIONS ................6 Quick Installation ....................... 8 Wall-mount instruction ....................... 9 ACCESSORIES....................... 10 FRONT PANEL BUTTONS ....................11 BACK PANEL BUTTONS....................12 REMOTE CONTROL ....................... 13 INSTALLATION........................ 15 Connecting RF antenna and Cable TV ..............
  • Page 3 DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that SA 1965 may be of sufficient magnitude to constitute a risk of electrical shock to persons.
  • Page 4: For Your Safety

    FOR YOUR SAFETY Before operating the TV please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 5 DIGITAL TELEVISION TRANSITION NOTICE This device contains a digital television tuner, so it should receive digital over the air TV programming, with a suitable antenna, after the end of full-power analog TV broadcasting in the United States on February 17, 2009. Some older television receivers, if they rely on a TV antenna, will need a TV Converter to receive over the air digital pro-gramming, but should continue to work as before for other purposes (e.g., for watching low-power TV stations still broadcasting in analog,...
  • Page 6: Precautions And Reminders

    PRECAUTIONS AND REMINDERS Place unit on even surfaces. Don't place the TV in confined spaces or in a box when using it. Unplug immediately if is malfunction Unplug immediately if other foreign like no picture, no video/audio,smoke materials are put inside TV box or if and bad odor from TV.
  • Page 7 Remember to unplug the AC cord Avoid direct sunlight, dusty, high from the AC outlet before cleaning. Do humidity and smoky areas. not use liquid cleaners or aerosol cleaners to clean the display. Make sure to unplug the unit when not Call service personnel to clean the internal part of the TV once a year.
  • Page 8: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read before operating equipment Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
  • Page 9 18. Tilt/Stability – All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design. Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet, which could ultimately overturn the product.
  • Page 10: Quick Installation

    Quick Installation Install Remove...
  • Page 11: Wall-Mount Instruction

    Wall-mount instruction Attaching The Optional Wall Mount Arm (not supplied) Follow these steps to finish installing the wall mounting arm: 1. Place the wall mounting arm onto the back of the TV. Line up the holes of the arm with the holes in the back of the monitor.
  • Page 12: Accessories

    ACCESSORIES Thank you for purchasing this LCD-TV. This LCD-TV package comes with: LCD TV User’s Manual Remote control Battery AA x 2 Power Cord VGA Cable RCA A/V Cable Quick Setup Guide Pedestal stand...
  • Page 13: Front Panel Buttons

    FRONT PANEL BUTTONS Volume Down Volume Up On Screen Display Menu On/Off Power ON/OFF button CH Down CH Up Input Source Selection (Enter) Power LED Indicator/ Remote Control Receiver...
  • Page 14: Back Panel Buttons

    BACK PANEL BUTTONS F G H Power (AC Input) Headphone jack PC Audio input VGA signal input YPbPr signal input S-Video input YPbPr/ DVI signal Audio input (left/right) AV/ S-Video signal Audio input (left/right) Composite Video input HDMI input terminal Cable/ Air TV input...
  • Page 15: Remote Control

    REMOTE CONTROL...
  • Page 16 Remote control button function as follows: INPUT Input source select ENTER Confirm selection or enter selected menu Direct to TV source - VOL + Adjust volume UP/DOWN LIST Select channel from program list GUIDE Select electronic program guide (EPG) 0~9, - number Directly channel select POWER Power ON/OFF...
  • Page 17: Installation

    INSTALLATION Connecting RF antenna and Cable TV Make sure the power is OFF before installing your LCD TV. 1) AIR TV: Connect the LCD TV to TV antenna with 75-ohm coaxial cable. Preset the air TV channels into memory with Auto Scan function when using an antenna TV system. This air input jack both support TV and DTV systems.
  • Page 18 2) With S-Video cable: S-Video Cable (not supplied) Audio Cable (not supplied) VCD or DVD Player 3) With YPbPr cable: YPbPr Cable (not supplied) Audio Cable (not supplied) VCD or DVD Player 4) With HDMI cable: VCD or DVD Player (DVD Player should have the HDMI output terminal) HDMI Cable (not supplied)
  • Page 19: Connecting To The Headphone

    5) With HDMI-DVI cable: Audio Cable (not supplied) VCD or DVD Player (DVD Player should have the HDMI output terminal) HDMI-DVI Cable (not supplied) Connecting to the Headphone Connect the headphone to the headphone output terminal of the LCD TV. (Headphone sold separately).
  • Page 20: Connecting With The Power Cord

    2) With HDMI-DVI Cable: Connect the HDMI-DVI cable from the DVI output of the computer to the HDMI terminal input of the LCD TV. Also, connect the green end of the Audio In cable from the audio output of your computer to the audio input terminal (red/white) of the LCD TV. Audio Cable (not supplied) HDMI-DVI Cable (not supplied) Connecting with the Power Cord...
  • Page 21: Basic Operation

    BASIC OPERATION To operate your LCD TV, you may use the TV remote control or bottom panel buttons to select input source, change channels, or adjust volume. Turning on the LCD TV Before using the LCD TV: 1. Connect external equipment properly. 2.
  • Page 22: Electronic Program Guide (Epg)

    Electronic Program Guide (EPG) Press the GUIDE button on the remote control and the program information for the channel you are watching will be displayed on the screen. * The picture here shows an example of the GUIDE screen in a DTV source. Channel Select Press number key or ▼CH▲...
  • Page 23: Favorite Channels

    Favorite Channels Press FAV button to show Favorite List and select your favorite channels that have already been stored. (You need to preset the favorite channels from the OSD menu to enable this function.) Sleep Time Setting Repeatedly press SLEEP button to set the off timer. The function is used to automatically shut off the LCD TV after a preset period of time passed.
  • Page 24: Advanced Operation-Osd Menu

    ADVANCED OPERATION—OSD MENU PICTURE Menu —To adjust the picture quality In TV, AV, S-Video, YPbPr, HDMI source: Note: When in AV, S-Video, YPbPr or HDMI source, the TIME and TV Menu options are disabled. In D-SUB source: Auto Adjust: To auto adjust picture’s horizontal position, vertical position, fine tune and H-Size. (only enabled in D-SUB source) Aspect Ratio: To select image size from Full, 4:3, Movie Scale, or Zoom In.
  • Page 25: Sound Menu

    Brightness: To adjust luminance of video. (right: Max, left: Min.) Sharpness: To adjust picture sharpness. (right: sharper, left: softer.) Tint: To adjust tint level. Color: To adjust color. (right: brilliant color, left: pale color.) Advance: To adjust advanced D-SUB functions, press ► to enter. (only enabled in D-SUB source) Phase: To adjust delay time of phase in order to reduce the noise of picture.
  • Page 26: Time Menu

    In ATV, AV, S-Video, YPbPr, HDMI, D-SUB source: Bass: To adjust bass. Treble: To adjust the treble. Balance: To adjust left and right audio balance. Audio Language: To select the available audio languages. (only enabled in DTV mode) TIME Menu —To set up time zone It is only active in TV source.
  • Page 27: Option Menu

    OPTION Menu —To set up OSD window In TV, AV, S-Video source: In YPbPr, HDMI, D-SUB source: OSD Language: To select an OSD language from English, French or Spanish. OSD Timer: To setup the display time of OSD. (5, 10, 15, 25, 40, and 60 seconds)
  • Page 28 Closed Caption: To set close caption options. CC Mode: To select Closed Caption Mode from Off, On, or CC on Mute. Basic Selection: To set basic analog closed caption options. (CC1~CC4, TEXT1~TEXT4) Advanced Selection: To select closed caption signal formats and set up caption modes for digital TV channels.
  • Page 29: Parent Menu

    PARENT Menu —To set up parental control In TV, AV, S-Video, YPbPr, HDMI source: Enter Password: Enter password and the screen below will show. (The default password is 0000.) Change Password: To change the password, press ►, and the screen on the right appears. Follow the instructions to change password.
  • Page 30 US: Press ► to set TV or MPAA ratings. TV: To adjust TV blocking level in the US. You can select between TV-Y, TV-Y7, TV-G, TV-PG, TV-14, or TV-MA. The TV Ratings in the US are defined as following. TV-Y All children TV-PG Parental guidance suggested...
  • Page 31 Canada: Press ► to set Canadian English and French ratings. Canada Eng: To adjust blocking level in English-speaking region of Canada. You can select between E, C, C8+, G, PG, 14+, 18+. The Canadian English Ratings are defined as following. Exempt Parental guidance Children...
  • Page 32: Tv Menu

    Note: This picture is an example of the content of RRT Setting. However, the selections and sub-selections of RRT Setting may be different in your OSD menu according to the local broadcasting system. Reset RRT: Press ► to reset RRT Setting. TV Menu —To set up for TV It is only active in TV source.
  • Page 33 Show/Hide Ch.: Press ENTER to skip the selected channel. To restore the channel, press ENTER again. Channel Name: Press ► to edit a name for the current channel. Use ▲▼ to choose letters or signs, ◄► to move forward or backward, and then press MENU or ENTER to exit.
  • Page 34: Technical Specification

    TECHNICAL SPECIFICATION Type 21.6” TFT Active Matrix 0.27675 (H) x 0.27675 (V) pixel pitch Color Filter RGB vertical stripe Glass surface Anti-Glare Input signal RGB analog (0.7/1.0 Vp-p, 75 ohms) Separate Sync, fh: 30-82 kHz, fv:50-75 Hz TV system Antenna / NTSC+ATSC TV Cable system / CATV + Digital Cable Video 1 composite RCA, 1 S-Video, 1 YPbPr component,...
  • Page 35: Safety Precautions

    SAFETY PRECAUTIONS This LCD TV is manufactured and tested to insure the user’s safety. Improper use or installation may result danger to the LCD TV as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy. WARNINGS This LCD TV should be operated only at the correct power sources indicated on the label on the rear end of the LCD TV.
  • Page 36: Care And Maintenance

    CARE AND MAINTENANCE Care Avoid exposing your LCD TV directly to sunlight or other heat source. Place your LCD TV away from the sun to reduce glare. Put your LCD TV in a well ventilated area. Do not place anything heavy on top of your LCD Make certain your LCD TV is installed in a clean and moisture-free area.
