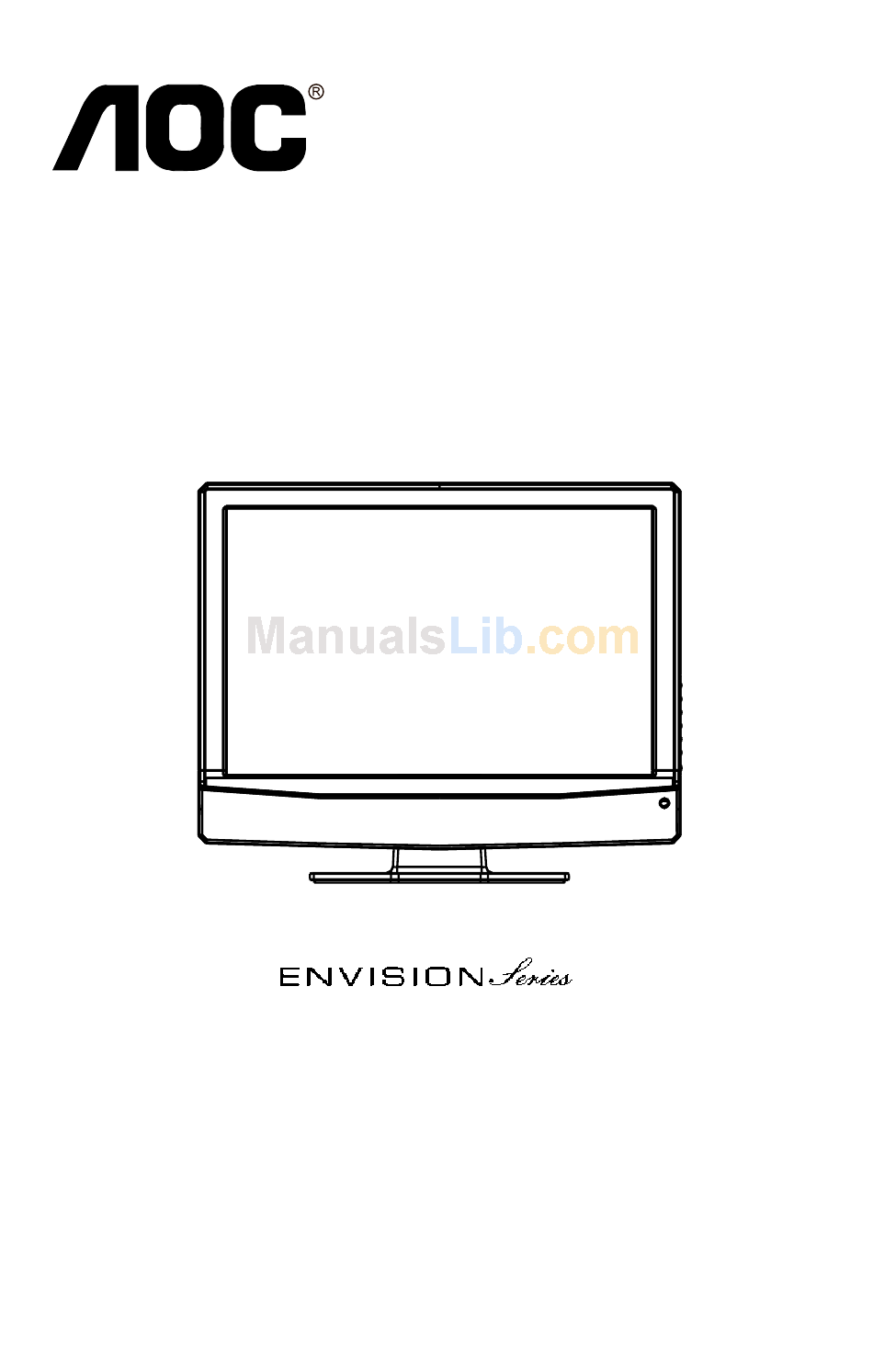

- Page 1 USER’S MANUAL L19W761 / L22W761 Thank you very much for choosing the Envision Series LCD TV. We recommend that you take a few minutes to read carefully through this manual before installing and using the TV. Please keep this manual in a safe place for your future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS …………………………….………………….. 1 FOR YOUR SAFETY …………………………………………………... 2 PRECAUT IONS AND REMINDERS ……………………………………3 IMPORTANT SAFETY INSTRUCTIONS …………………………….. 5 PREPARAT ION ………………………………………………………… 7 PERIPHERAL CONNECTION GUIDE ………………………………. 9 OPERATING INSTRUCTIONS ………………………………………. 10 TO USE PANEL CONTROL ...…………………….. 10 TO USE THE REMOTE CONTROL ……………………………. -
Page 3: For Your Safety
FOR YOUR SAFETY Before operating the TV please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 4: Precautions And Reminders
PRECAUTIONS AND REMINDERS Place unit on even surfaces. Unplug immediately if is malfunction like no picture, no video/audio,smoke and bad odor from TV. Don't throw any object inside the TV box like metals or other flammable materials. Don't place the TV in confined spaces or in a box when using it. - Page 5 Remember to unplug the AC cord from the AC outlet before cleaning. Do not use liquid cleaners or aerosol cleaners to clean the display. Make sure to unplug the unit when not in use for a long period of time (days). Do not cover or block any vents and openings.
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read before operating equipment Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. - Page 7 18. Tilt/Stability – All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design. Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet, which could ultimately overturn the product.
-
Page 8: Preparation
PREPARATION Please, make sure to connect the power plug to the wall outlet socket after connecting the TV to the power cord! Install the base stand; place the TV on a solid surface. Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover. - Page 9 3. Remote control: Remove the cover of the battery compartment. Insert the 2 batteries supplied (Type AA 1.5V). 4. Power: Insert the power cord in the wall socket having an AC power supply.You can see LED states at the front panel. If the LED color is Green , means the TV set is power on.
-
Page 10: Peripheral Connection Guide
PERIPHERAL CONNECTION GUIDE AC POWER Once your equipment is connected, use the following procedure to view the input signal: Press the source button on the remote controller to select the relevant source to view. (ex: Press VIDEO button to select “Video1 Composite Rear” if you have connected a DVD player to Video1 Composite socket.) "HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."... -
Page 11: Operation Instructions
OPERATION INSTRUCTIONS TO USE THE PANEL CONTROL VOL : Press to increase the sound volume level. VOL : Press to decrease the sound volume level. CH : Press to select the next higher Program number. CH : Press to select the next lower Program number. Menu key: Press to open or exit the OSD menu. -
Page 12: To Use The Remote Control
TO USE THE REMOTE CONTROL “0 ~ 9 /- number” Press to enter TV channel number to select channel (Press ‘-’ to indicate choosing the sub-channel). “MENU” Press to open or exit menu. “VOL- / VOL+” Press + or - to adjust the volume. “CH- / CH +”... -
Page 13: To Use The Menus
TO USE THE MENUS Press the MENU button to display the main menu Use the cursor up/down to select a menu item. Use the cursor left/right to enter a submenu. Press the OK button to enable/disable the function. Press the MENU or EXIT button to exit the menu. Press the MENU button to enter the main OSD (On Screen Display). -
Page 14: Video Menu
4. Add on Ch search:Add channels which are new found. 5. Manual Channel Set: Show the channel setup table. User can choose to display the ATSC or NTSC TV channels and then edit (add/delete) the channel numbers. Channel Labels: Show the NTSC or ATSC TV channel label menu for user modifying channel labels specifically. -
Page 15: Audio Menu
AUDIO MENU The Audio menu in TV mode shows as below. It provides audio adjustment for user to modify the audio setting. Except in ATSC TV mode, some audio adjustment items for user to modify the audio setting. Excepting in ATSC TV mode, the Audio Language option is disable in others source modes. -
Page 16: Feature Menu
FEATURE MENU The Feature menu in TV mode shows as below. It provides certain optional control functions such as time set, sleep timer, video noise reduction, parental control (V-chip) and close caption style setting. This menu gives users the most flexibilities to satisfy their generally demands. According to the various requirements in different source modes, certain features should be hidden (disable) on the menu. - Page 17 【Noise Reduction】gives four NR effect degrees, such as: Low、Mid、High and Off. The default setting is 【3D Y/C】provides On / Off switches. The default setting is On. 【Color Temp】gives three color temperature modes as: Normal、Warm and Cool. The default mode is Warm. o 【Setting】restores the default advanced video option settings.
- Page 18 6. Digital Captions: Select the close caption options ( Service 1-6, Text 1-4 and CC 1-4) in digital TV mode. When select service 1 to service 6 you can modulate parameters in the Digital Close Caption. Digital Closed Caption: Provide numerous options for setting the close caption style.
- Page 19 【Size】: Digital close caption font size, which can be set as Small、Normal or Large. 【Font】: Digital close caption font style, which can be chosen as Default or Font 1 ~ 7. 【Text Color】: Giving Red / Green / Blue / Yellow / Magenta / Cyan / Black / White Colors.
-
Page 20: Tips
TIPS Care of the screen Do not rub or strike the screen with anything hard as this may scratch, mar, or damage the screen permanently. Unplug the power cord before cleaning the screen. Dust the TV by wiping the screen and the cabinet with a soft, clean cloth. If the screen requires additional cleaning, use a clean, damp cloth. - Page 21 Canadian notice – This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Avis Canadian – Cat apparel numerous de la classed B respected toutes les exigencies du règlement sur le materiel brouilleur du Canada.
-
Page 22: Product Specification
PRODUCT SPECIFICATION_L19W761 NOTE: *This model complies with the specifications listed below. *Designs and specifications are subject to change without notice. *This model may not be compatible with features and/or specifications that may be added in the future. Television System: NTSC standard ATSC standard (8-VSB, Clear-QAM) Viewable image size: 481mm diagonal... -
Page 23: Product Specification
PRODUCT SPECIFICATION_L22W761 NOTE: *This model complies with the specifications listed below. *Designs and specifications are subject to change without notice. *This model may not be compatible with features and/or specifications that may be added in the future. Television System: NTSC standard ATSC standard (8-VSB, Clear-QAM) Viewable image size: 558mm diagonal... -
Page 24: Before Calling Service
BEFORE CALLING SERVICE Please make these simple checks before calling service. These tips may save you time and money since charges for receiver installation and adjustments of customer controls are not covered under your warranty. Symptoms “Ghost ” or double image No power No picture Good picture but no sound... -
Page 25: Glossary
GLOSSARY Audio / Video Inputs Located on the rear and the front of the receiver these connectors (RCA phono type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound connection options. -
Page 26: Wall Mount Bracket
Wall Mount Bracket (19”) (22”) 1. Remove the four units M4.0 screws. 2. Remove the Base Ass’y. 3. Fasten four units M4.0 X 10mm screws to secure the wall mount bracket. Note: If you want to wall mount the TV, for the safety of you and the appliance, please use the correct hanging brackets.
