Data and Installation

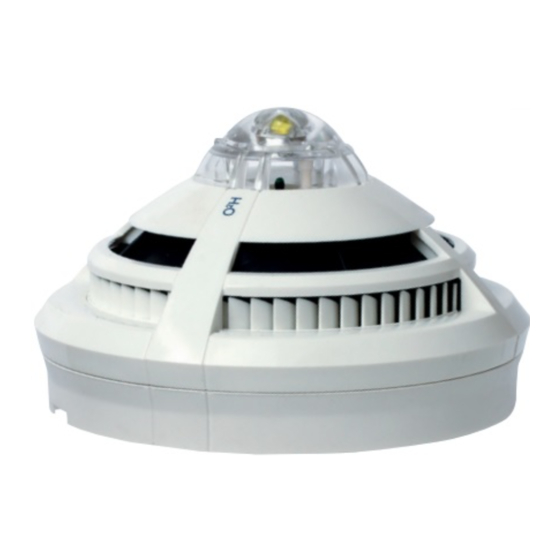

S-Quad
Sensor, Sounder, Speech & Strobe
These instructions are for the S-Quad product range. An
S-Quad product integrates dual angle smoke, heat and carbon
monoxide gas detection with electronic sounder, speech and
LED flasher (Strobe) in one assembly.
Product range
All LPCB approved Sensor STATES are
listed in the S-Quad Description and
commissioning information .
These products are not visual alarm devices and do not
meet EN 54-23.
Part number
Description
S4-720
Heat Sensor
S4-780
Heat Sensor &
Sounder
S4-720-ST-VO Heat Sensor, Speech
& Strobe
S4-715 #
Optical Sensor #
S4-710
Optical & Heat Sensor OH
S4-770
Optical & Heat Sensor
plus Sounder
S4-711
Dual Optical & Heat
Sensor
S4-771
Dual Optical & Heat
Sensor plus Sounder
S4-711-ST
Dual Optical & Heat
Sensor plus Strobe
S4-711-VO
Dual Optical & Heat
Sensor plus Speech
S4-711-ST-VO Dual Optical & Heat
Sensor plus Speech &
Strobe
S4-911
Dual Optical, Heat &
CO Sensor
S4-911-ST-VO Dual Optical, Heat &
CO Sensor plus
Speech & Strobe
# This 'Optical' Sensor is used in the Duct sensor.
4188-779 issue 10_12/13_S-Quad _Part 1
Associated products
S4-700
S4-FLUSH
805589
805580
S4-COVER-REMOVER Dust cover remover tool
805576
805573
General specification
Operating voltage
Weight
Dimensions
IP rating
Enclosure
Colour
Symbol
Approval
H
Storage Temperature
HS
HStSp
Ambient operating
temperature
O #
Relative Humidity
OHS
Heat (H) Standard
Optical (O) Standard
2
O
H
Dual Optical (O
Standard
2
O
HS
Sounder (S) Standard EN54 : Part 3 : 2002
Gas (CO) Standard *
2
O
HSt
Multi sensor standard CEA 4021: 2003-07
EN54-18 : 2005 - Input/Output devices
2
O
HSp
EN54-17 : 2005
2
O
HSpSt
- Short-circuit
isolator
(section 4.8)
2
data:
O
HCO
* The 'Gas' sensing is designed to meet the requirements
2
O
HCOSpSt
of LPS 1274 : issue 1.0
Information on minimum sound output levels to include polar
dispersion is covered in a technical note TECH7018.033,
available on request from manufacturer.
by Honeywell
S-Quad Base
Sensor dust cover (50 pack)
Removal tool kit
(spare adaptor)
Label plate (10 pack)
Base IP43 Gasket (5 pack)
35V - 41V
110g (with base - 170g)
S4-720 only:88g (with base -
148g)
117mm diameter by 49.6mm
height (With base the height
increases to 63.8mm)
IP30
IP20 when mounted on a metal
back box
ABS
RAL 9010
LPCB approved
-20°C to +70°C (for S-Quad
with CO -20°C to +50°C)
-10°C to +50°C
95% non condensing
(+5°C to +45°C)
EN54 : Part 5 : 2002
EN54 : Part 7 : 2002
2
)
EN54 : Part 7 : 2002
LPS 1274
V
42V
I
max
C max
V
40V
I
nom
S max
V
24V
I
min
L max
V
16V
Z
SO max
C max
V
8V
SO min
0.4A
1A
20mA
0.16W
1
