Summary of Contents for Alcatel Alcatel 3600

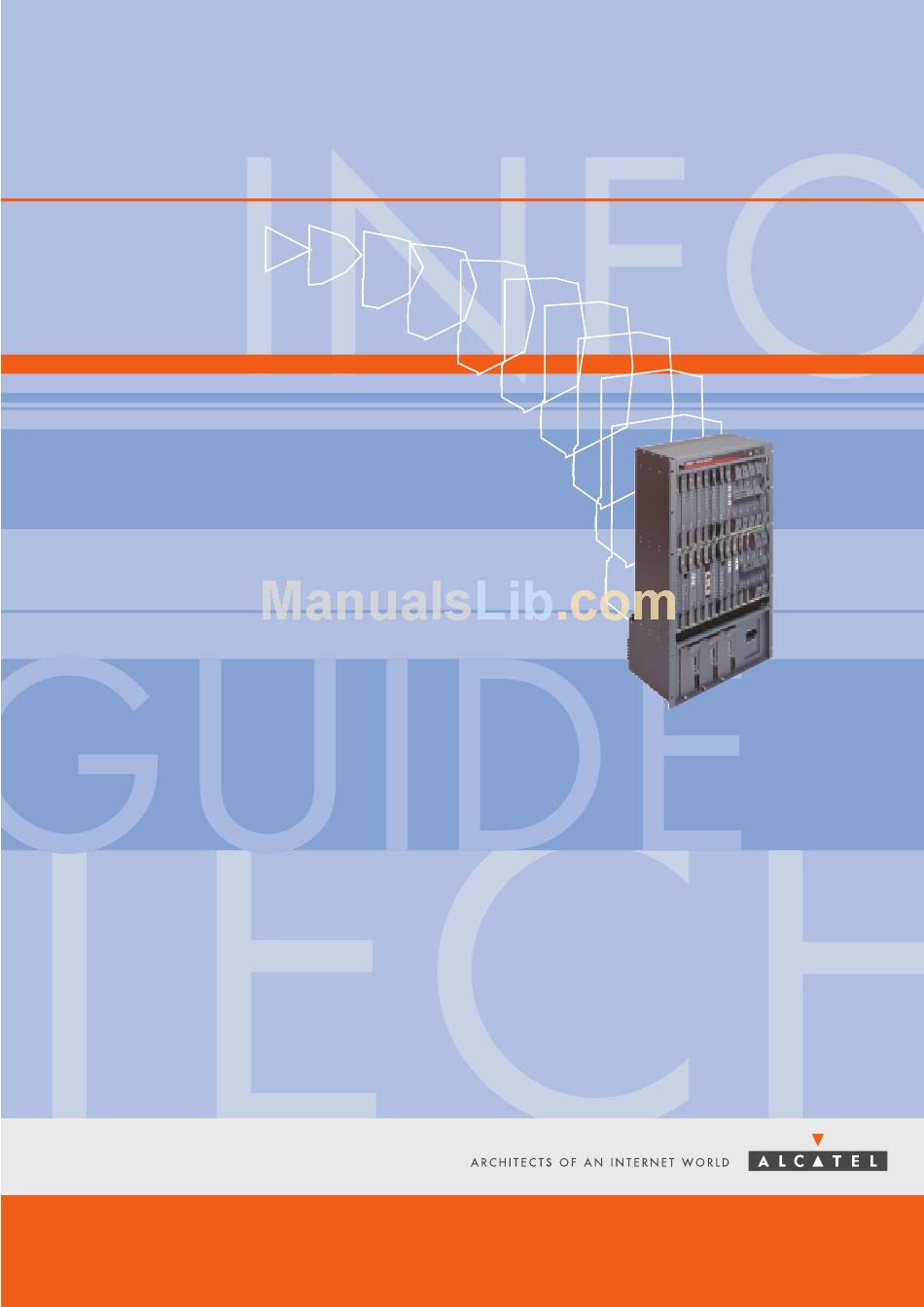

- Page 1 T E C H N I C A L I N F O R M A T I O N G U I D E MainStreet Business Access Portfolio...
- Page 2 X.25 switch, a low capacity ATM access node, an intelligent channel bank, and a digital cross-connect switch. The Alcatel 3600 MainStreet Multiservice Bandwidth Manager accommodates network evolution and protects investment by enabling customers to integrate narrowband legacy services and broadband or IP-based networks.
- Page 3 Alcatel 3600/Alcatel 3600+ MainStreet Multiservice Bandwidth Managers. Installed in any universal card slot (UCS), the ATM Service cards adapt the rich variety of Alcatel 3600/Alcatel 3600+ MainStreet Multiservice Bandwidth Managers supported services to ATM cells for transmission over an ATM network.
- Page 4 MainStreet Business Access Portfolio Installing the ATM Services Card in Alcatel 3600/Alcatel 3600+ MainStreet Multiservice Bandwidth Managers increases network efficiencies, as operators manage only one logical “pipe” ranging from 1.5 Mb/s to 8 Mb/s, instead of parallel, discrete E1/T1 links.
- Page 5 MainStreet Business Access Portfolio Integrated Access Devices (IADs) Alcatel 3624 MainStreet Intelligent T1 Channel Bank The Alcatel 3624 MainStreet Intelligent T1 Channel Bank (ICB) is a compact, sophisticated network access product that provides a cost-effective method of connecting voice and data devices such as telephones, private branch exchanges (PBXs), routers, bridges, personal computers and servers into a multiservice network.
- Page 6 MainStreet Business Access Portfolio The Alcatel 3630 MainStreet PRM offers many applications, including: > Voice, data, and integrated voice and data networking > Point-to-point and drop/insert applications > Superrate operation, providing connectivity for video conferencing, interconnecting LANs over the WAN >...
- Page 7 DS0. This multiplexing of data allows for efficient utilization of bandwidth and real cost savings. Both the 6- and 12-port line cards can be installed in the Alcatel 3600/Alcatel 3600+ MainStreet Multiservice Bandwidth Managers. Alcatel 2704 MainStreet V.110 DTU The Alcatel 2704 MainStreet V.110 DTU is focused specifically...
- Page 8 Table 3: Alcatel MainStreet Business Access Portfolio Applications, Architecture and Interfaces Product category Products G O V E R N M E N T A P P L I C A T I O N S Integrated communications solutions Multiservice consolidation F I N A N C I A L A P P L I C A T I O N S Voice and data convergence...
- Page 9 Product category Products V O I C E I N T E R F A C E S E1 CAS and CCS, R2D (E&M) D A T A I N T E R F A C E S 2B1Q (for NTU connections) V.24, V.28, T1A/E1A-232-C S O N E T / S D H D S P...
- Page 10 Alcatel and the Alcatel logo are registered trademarks of Alcatel. All other trademarks are the property of their respective owners. Alcatel assumes no responsibility for the accuracy of the information presented, which is subject to change without notice. © 06 2002 Alcatel. All rights reserved. 3CL 00469 0270 TQZZA Ed.01 14510...
