User Guide

Dear user,

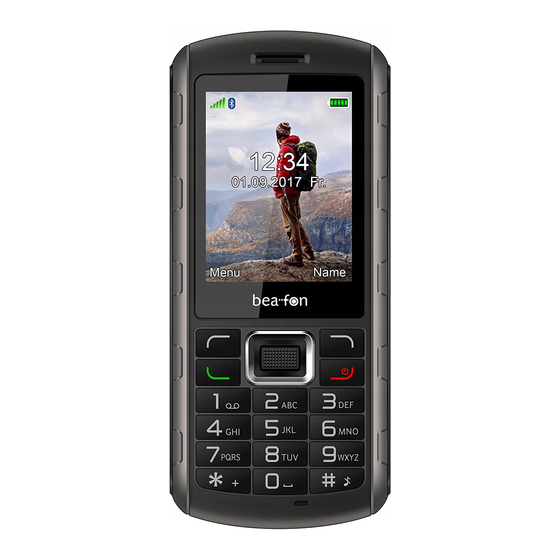

thank you for purchasing Bea-fon AL560.
This user guide will provide you with general
information and operating instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL560 and is the answer not in the manual?

Questions and answers

Related Manuals for Bea-fon AL560

Summary of Contents for Bea-fon AL560

  • Page 1: User Guide

    User Guide Dear user, thank you for purchasing Bea-fon AL560. This user guide will provide you with general information and operating instructions.

  • Page 2: Certification Information (Sar)

    Certification information (SAR): Bea-fon Mobile GmbH hereby declares that this phone model meets the EU requirements for exposure to electromagnetic fields. The SAR (specific absorption rate) regulates a standard value of 2.0W/kg as the average value per 10 grams of body tissue, and this mobile phone type has a test value of 1.605 W/kg that complies with the...

  • Page 3: Description Of Keys

    What does IP68 certification mean? The IP68 certification defines that the device is dust-proof, on the one hand, and protected against temporary submersion to a maximum depth of up to 1 meter, on the other hand. Obviously, this protection refers to clear water, and there is no protection against, e.g., salt water, soapy water, alcohol or heated liquids.
  • Page 4 Menu button, left in standby mode, you can enter the main menu with this button Green dial key Calling or receiving a call. On the default screen: Calling up the recent calls list * Key Press this key on the default screen to enter the following symbols: */+/P/W.

  • Page 5: Symbol Description

    Symbol description Symbol Description Reception strength: The vertical bars show the strength of the reception of your network operator. New Messages This symbol is displayed when you receive a new message. SIM Card has an unread message. This symbol flashes when the inbox is full. You have to delete some messages in order to be able to receive new messages.

  • Page 6: Inserting The Sim Cards

    Alarm This symbol is displayed when you turn on the alarm. Roaming This symbol is displayed when your SIM card is in a foreign network. Bluetooth This symbol is displayed when the Bluetooth is switched on. Battery indicator Battery status Inserting the SIM cards The telephone must be switched off and disconnected from the charger.

  • Page 7: Inserting The Microsd Card

    Use your finger nail to lift the battery cover on the lower left and right hand sides (notch) Should the battery be in the device, please remove it. There are 2 card slots: 1x SIM card slot on the left hand side. The memory card slot is located below on the right hand side.

  • Page 8: Insert The Battery

    Insert the battery Insert the battery in the phone with the contacts first and make sure that the contacts are on the front left hand side. Close the battery cover. Replace the battery cover and close it. Turn the latch clockwise to close the battery cover firmly.

  • Page 9: Charging The Battery

    Charging the Battery Connect the charger to the charging port at the top of the phone. To do this, remove the cover at the top of the phone. Then plug the charger into a socket. If the telephone is charged while switched on, the battery indicator begins to go up.

  • Page 10: Device Code

    Device code The use of this code can prevent unauthorized persons from using this telephone. The factory default code is: 0000 PIN code The code from the network operator that is provided with the SIM card prevents the use of the card by unauthorized persons.

  • Page 11: Navigate The Main Menu

    Navigate the main menu In the default screen, press the left “Menu” key or the OK key to access the main menu. In order to go back a menu level, press the right menu key. Press the red key to return directly to the default screen.

  • Page 12: Answering A Call

    Use the navigation key (down/up) to scroll to the desired contact. Press the green key to call the number. Press the red key in order to cancel or end the call. Calling from the recent calls list The call list displays incoming, outgoing and missed calls.

  • Page 13: Headset/Bluetooth Mode

    Headset/Bluetooth mode If a headset is connected to the USB socket (or a Bluetooth Headset), you can answer the call with the button on the headset. Note: Headset is not included! Volume control To adjust the call volume during the phone call, press the navigation key down or up.

  • Page 14: Voicemail Server

    Voicemail server Voice mail is a network function. If a voice mail has been received, the receipt of a new message will be shown on the display of your telephone. In the main menu, select Messages and press OK”. Select Settings and press OK Select SIM and press OK Select Voice mail”...

  • Page 15: Call List

    Messages Write messages Select the main menu, Messages and press OK Select Write message Enter the text Press Options, select Send Select one or more contacts and press Options and select Send Input method Press the pound key (#) to toggle between lower and upper case: abc, ABC, 123, and pay attention to the symbol on the upper left hand side of the display.
  • Page 16 Important: The phone supports Micro SD or Micro SDHC memory cards of up to 16GB (not included). Photos In main menu, select Photos and press OK. Stored photos can be found here (in .jpg format). You can send and also receive the photos via Bluetooth. Extras Alarm In main menu, select Extras and press OK.

  • Page 17: File Manager

    If a connection with another Bluetooth device is established, you require a Password. Confirm the password with OK. FM radio Plug a Micro USB headset in the phone (not included) In main menu, select Extras Select FM radio and press OK to start the radio function.

  • Page 18: Menu Structure

    After that, a menu appears on the telephone - select “Mass storage” and confirm with “OK” The computer will recognize the telephone as removable media. Using the Windows Explorer, now you can process the data as usual or copy it onto the computer. Menu structure Phonebook Calendar...

  • Page 19: Specifications

    Specifications: Dual Band Network: GSM 850/900/1800/1900 Battery: Li-ion 3.7V - 1450mAh Dimensions: 118x51.5x21 Standby time: Up to 265 hours* Talk time: Up to 300 minutes* * The operating life of the battery is dependent on the SIM card, network, settings applies and usage as well as the environment.
  • Page 20 SIM card error: Dirt on the contact areas of the SIM card? Clean the contact areas of the SIM card. SIM card is not inserted properly, insert the SIM card correctly. SIM card does not function or is damaged? Get your SIM card checked by your network operator.
  • Page 21 You do not receive incoming calls: Check whether the SIM card is registered on the network. Check whether the phone is turned on. Check the signal strength Have you activated call barring? If so, please disable all call barring. Display is black: Check the battery status, charge the battery, or replace it.
  • Page 22 SMS sending not possible. Check the message centre number in menu item: “Messages - SMS settings - SIM - Profile settings - SMS”, press “Options” and select “Edit” and press “OK” to go to the Message centre number (SMSC). Note: If a specific problem could not be solved using this information, please contact customer service at www.beafon.com.

  • Page 23: Limitation Of Liability

    Limitation of liability  Bea-fon Mobile GmbH shall not bear any liability for any relevant, indirect, special, incidental, or inevitable injuries caused by using this product, including injuries which can be predictable or not.  For any losses caused by natural disasters (such as earthquakes, flood, etc.) or other events...
