Introduction
The Irritrol R-100-KIT Remote Control Set works with a variety
of irrigation systems, allowing the user to remotely control
compatible controllers and the watering zones. The user can
walk the landscape site, testing, troubleshooting, and/or pro-
viding supplemental watering.
The R-100-KIT Remote Set contains a remote transmitter, a
mini-receiver, and an adapter cable. The Set allows the user to
plug the mini-receiver unit into a variety of irrigation control-
lers. The CL-R1, transmitter only, works with the Irritrol CLIMATE
LOGIC® without the need for the mini-receiver.
This manual explains the installation of the R-100-KIT and cov-
ers the use and operation the remotes have in common.
• Battery Installation
• Connecting the Mini-receiver
• Transmitter Controls
• The LCD Screen
• Setting the PIN
• General Operation
• Unique Lighting Control
R-100-KIT & CL-R1
Remote Control
User's Guide
CL-R1
Setup
PWR (Hold)

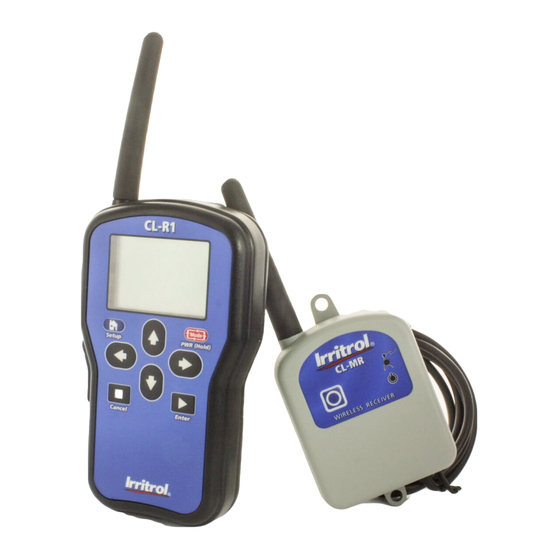

R-100-KIT Components
• CL-R1 Remote
Cancel
Enter
• CL-MR Mini-receiver
• CMR-ADP Adapter
Transmitter
cable (not pictured)

Advertisement

loading
Need help?

Need help?

Do you have a question about the R-100-KIT and is the answer not in the manual?

Questions and answers

Related Manuals for Irritrol R-100-KIT

Summary of Contents for Irritrol R-100-KIT

  • Page 1 The Set allows the user to plug the mini-receiver unit into a variety of irrigation control- lers. The CL-R1, transmitter only, works with the Irritrol CLIMATE LOGIC® without the need for the mini-receiver. This manual explains the installation of the R-100-KIT and cov-...
  • Page 2 Compatibility At this point, there are eight (8) series of controllers with which the R-100-Kit can remotely operate. Irritrol will add more series to this list as new irrigation controllers are introduced to the market. Irritrol® Brand Toro® Brand Rain Dial®-R Series Custom Command™...

  • Page 3: Transmitter Battery Installation

    Receiver receives power. Transmitter Battery Installation The CL-R1 Remote Transmitter receives power from a 9-volt battery (not included). To install the battery: Remove the three (3) screws from the battery cover on the back of the Remote.
  • Page 4 Connecting the Receiver to a Controller The range of the Mini-receiver to the Remote is roughly 1000 feet line-of-sight. If reception is poor, install the receiver in a better location. If the cable supplied with the mini-receiver is not long enough, it is possible to purchase extension cables (50’...
  • Page 5 Connecting to early models of MC-E “Blue” controllers: Open the front panel of the controller. The 5-pin connector is sandwiched between the front panel and the circuit board in the lower right-hand corner. Attach the cable adapter to the controller with the black wire up. (Later models have an RJ connector in the same location.) Connect the Mini-receiver’s RJ-11 cable to the other end of the cable adapter.
  • Page 6 Remote Transmitter Controls Setup button LCD Screen CL-R1 Left arrow Up arrow USB Cover Setup PWR (Hold) Power button (future use) Cancel button Right arrow Cancel Enter Down arrow Enter button...

  • Page 7: Setting The Pin

    Setting the PIN After connecting the receiver, it is necessary to set the PIN in the transmitter and receiver. Set the PIN in the transmitter first. To Set the PIN in the Handheld Transmitter: Press the red MODE/PWR button to turn on the remote transmitter. Press the SETUP button twice;...
  • Page 8 To Set the PIN in the Climate Logic Receiver Module: After setting the PIN in the handheld transmitter (see above), open the Climate Logic receiver module. Press the MENU button to get to the Main Menu on the module’s display. Repeatedly press the UP or DOWN key on the module to move the cursor to REMOTE.

  • Page 9: General Operation

    General Operation To Power the Remote Transmitter: Press the red MODE/PWR button to turn on. Press and hold MODE/PWR button (about two seconds) to turn off. Note: Turning off the transmitter does not turn off a station in operation. (See Stop All Watering to stop an active station.) Automatic Power Down of Transmitter To extend battery life, five minutes of button inactivity will shut off the transmitter.
  • Page 10 To Run an All Stations Cycle (ASC): Running an All Stations Cycle is useful for troubleshooting a sprinkler system. Start a Program (section above). Use the UP arrow key to move above “PGM C” to “TEST ALL” mode. Press the RIGHT arrow key to start the run time blinking.
  • Page 11 Unique Lighting Control As an allied brand to Irritrol in the landscaping industry, Unique Lighting offers remote control of its landscape lighting products. The commands for its remote lighting control are included in the remote system described in this guide. The basic control functions are furnished below.

  • Page 12: Fcc Statement

    The user may find the following booklet prepared by the Federal Communications Commission helpful: “How to Identify and Resolve Radio-TV Interference Problems. ” This booklet is available from the U.S. Government Printing Office, Washing- ton, DC 20402. Stock No. 004-000-00345-4. ©2012 Irritrol • www.irritrol.com • Technical Support: 1-800-634-8873 Form Number 373-0575 Rev. A...
