- Page 1 C M R - K I T M a i n t e n a n c e R e m o t e User’s Guide • Installation • Setup • Operation • Service...
-
Page 2: Table Of Contents
ASC Operation ......12 CMR-KIT Setup Features ....13 Reset Receiver Address Code . -
Page 3: Cmr-Kit System Overview

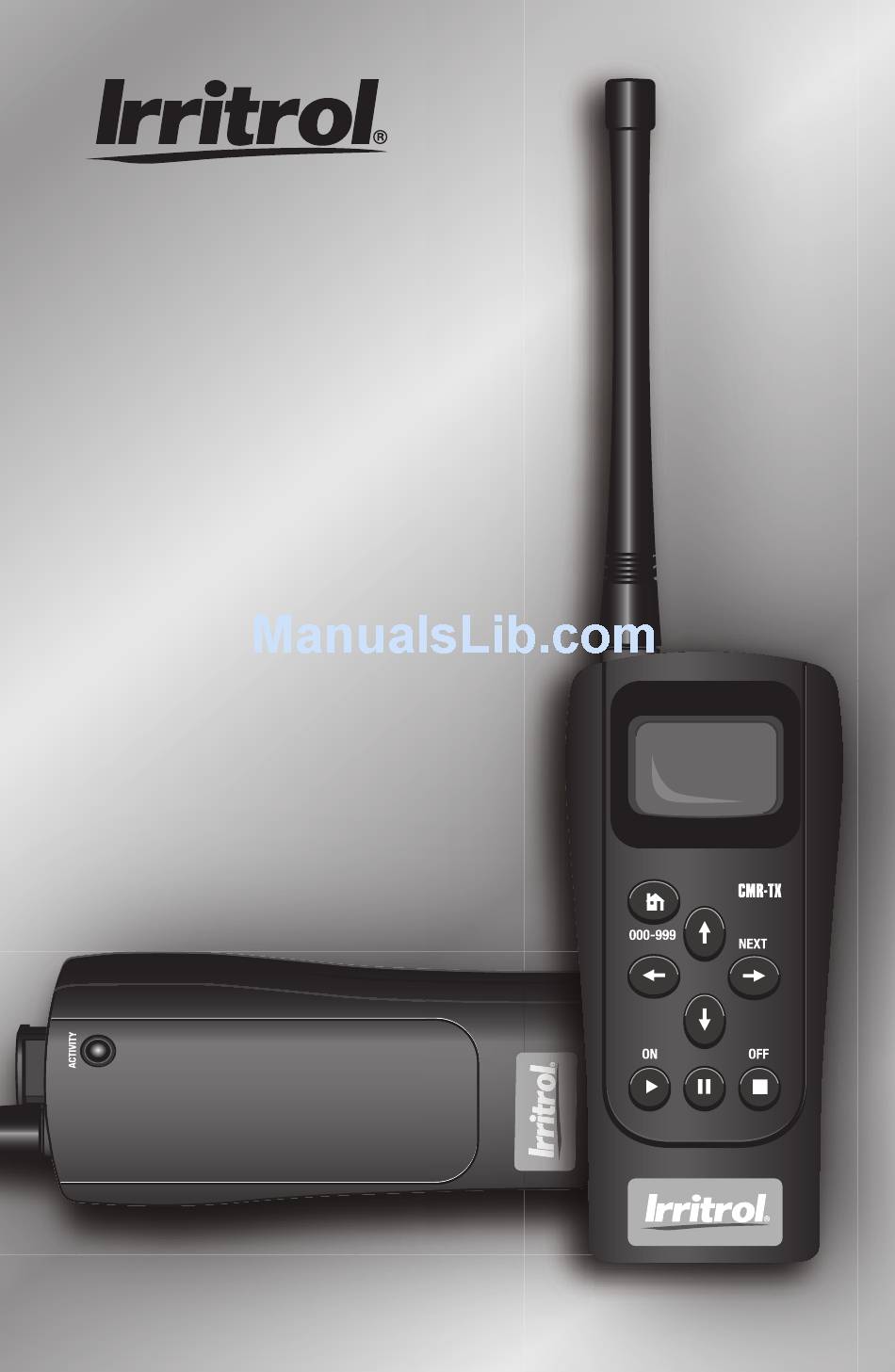

The CMR-KIT kit is comprised of a high-efficiency handheld remote transmitter, portable receiver, quick-release receiver mounting assembly and a dual-rate battery charger. The CMR-KIT kit adapts to several models of Irritrol and Toro brand remote-ready controllers, enabling single-person system operation for ease of maintenance, startup, winterization and troubleshooting. -
Page 4: Transmitter Components
5 - Function Keys - Accesses On, Pause and Off functions 6 - Battery Charger Receptacle 7 - Belt Clip Attachment Points (belt clip not shown) 8 - NiMH Battery Stack 9 - 115 VAC/7.5 VDC Battery Charger CMR-KIT Transmitter Components... -
Page 5: Transmitter Components
CMR-KIT Transmitter Components... -
Page 6: Receiver Components
8 - Receiver Power Wires - Connects the receiver to the controller’s 24 VAC power terminals. 9 - Receiver Plug Cover - Covers and protects the plug assembly when the receiver is not installed. Prevents damage due to prolonged exposure to moisture, sun and dust. CMR-KIT Receiver Components... -
Page 7: Receiver Components
CMR-KIT Receiver Components... -
Page 8: Receiver Installation
Receiver Installation Before using your CMR-KIT remote control system for the first time, the following procedures must be completed: Charge the transmitter batteries for a minimum of 8 hours. Install and connect the receiver plug assembly and receiver unit per the instructions provided. -
Page 9: Indoor Installation
24 VAC. Failure to comply will result in severe equipment damage and voided warranty. 4 – Disconnect power to the controller. 5 – Route the receiver plug wiring through the base of the controller cabinet. Figure 1 ACATIVITY CMR-KIT Indoor Installation... -
Page 10: Outdoor Installation
PVC fitting tighten by hand. 6 – Route the wiring through the conduit. Install the plug/fitting assembly to the pipe, orienting the plug alignment hole pointing straight down. 7 – Connect the receiver plug wiring as described above. CMR-KIT Outdoor Installation... - Page 11 Figure 2 Figure 3 To Controller CMR-KIT Outdoor Installation...
-
Page 12: Remote Control Operations
Remote Control Operations For the best results, please note the following CMR-KIT remote system operating characteristics: The transmitter batteries must be fully charged prior to operation. Refer to battery charging procedure on page 16. For maximum signal range, hold the transmitter vertically, at shoulder level, facing toward the receiver when sending a command. -
Page 13: Control Options During Operation
10 minutes. This control function does not apply to ASC operation. Turn off transmitter Press and hold the OFF button until the display is blank. The transmitter will shut off automatically after 30 minutes of inactivity. CMR-KIT Control Options... -
Page 14: Asc Operation
Every 15 seconds, the display will alternate to show the operating station number. The receiver plug is specifically designed for the CMR-KIT receiver and must be installed. Irritrol KwikStart ® Remote receiver plug is similar, but is not compatible CMR- KIT. -
Page 15: Cmr-Kit Setup Features
CMR-KIT Setup Options About Communication Address Codes The handheld transmitter and receiver provided in the CMR-KIT kit are programmed by default with the same three-digit communication address code ranging from 001 to 999 and requires no additional adjustments for initial remote control operation. -
Page 16: Reset Receiver Address Code
7 – When the receiver address code is displayed correctly and flashing, reinstall the receiver. The receiver Activity monitor should begin flashing Green. 8 – Press and hold the Address button. When the receiver Activity monitor momentarily flashes Red release the button. CMR-KIT Setup Options... -
Page 17: Adjust Station Number Range
3 – To adjust the value, press the up or down arrow button. For rapid scrolling, press and hold the button. 4 – Press and hold the left and right arrow buttons at the same time to exit the adjustment mode. CMR-KIT Setup Options... -
Page 18: Transmitter Battery Service
Before using the remote system for the first time, charge the batteries 8 hours. The battery charger provided in the CMR-KIT kit supplies a dual-rate charge cycle that will initially bring the batteries to full capacity at a high rate, then switch automatically to a trickle charge to maintain the batteries at peak capacity. -
Page 19: Replacing The Batteries
4 – Carefully remove and replace the batteries, maintaining the correct polarity as shown in Figure 5. 5 – Reinstall the battery cover and optional belt clip. Properly dispose all used batteries in accordance with the manufacturer’s recommendations. CMR-KIT Transmitter Battery Service... -
Page 20: Troubleshooting
The following troubleshooting symptoms and solutions are provided to help resolve basic problems that may arise during setup and initial operation of the CMR-KIT remote control system. If the problem cannot be resolved using this information, contact a Irritrol Customer Service representative at 1-800-634-TURF (8873) for assistance. - Page 21 ❖ Bring the batteries up to full charge. Allow the batteries to charge continuously for at least 8 hours. The battery charger supplied in the CMR-KIT kit can remain connected to the transmitter whenever the transmitter is not in use.
-
Page 22: Specifications
-Plus and ® MC-E – (Toro) TMC-212, TMC-424, and Greenkeeper ® Note: Controller model compatibility is subject to change without notice. Contact an authorized Irritrol or Toro irrigation equipment distributor for current information. CMR-KIT Remote Components Description Model Number ❖... -
Page 23: Warranty Information
Reorient the receiving antenna, relocate the irrigation controller with respect to the receiver, move the irrigation controller away from the receiver, plug the irrigation controller into a different outlet. If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. CMR-KIT Warranty Information... -
Page 24: Site Reference Record
Site Reference Record © 2006 Irritrol • www.irritrol.com Form Number 373-0425 Rev. A...
