Introduction
The Irritrol R-100-KIT Remote Control Set works with a variety
of irrigation systems, allowing the user to remotely control
compatible controllers and the watering zones. The user can
walk the landscape site, testing, troubleshooting, and/or pro-
viding supplemental watering.
The R-100-KIT Remote Set contains a remote transmitter, a
mini-receiver, and an adapter cable. The Set allows the user to
plug the mini-receiver unit into a variety of irrigation control-
lers. The CL-R1, transmitter only, works with the Irritrol CLIMATE
LOGIC® without the need for the mini-receiver.
This manual explains the installation of the R-100-KIT and cov-
ers the use and operation the remotes have in common.
• Battery Installation
• Connecting the Mini-receiver
• Transmitter Controls
• The LCD Screen
• Setting the PIN
• General Operation
• Unique Lighting Control
R-100-KIT & CL-R1
Remote Control
User's Guide
CL-R1
Setup
PWR (Hold)

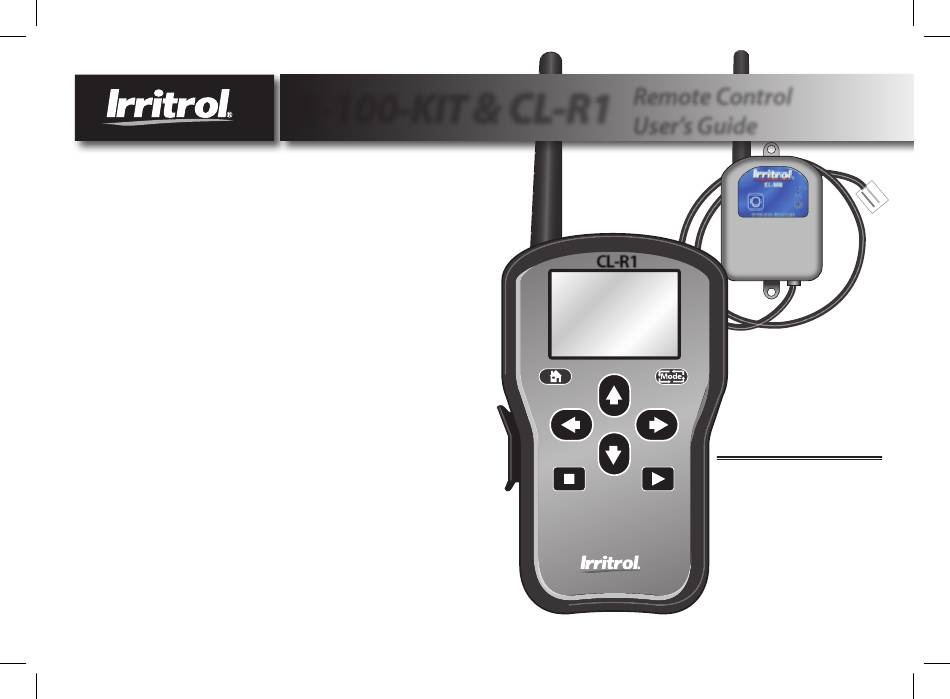

R-100-KIT Components
• CL-R1 Remote
Cancel
Enter
• CL-MR Mini-receiver
• CMR-ADP Adapter
Transmitter
cable (not pictured)
