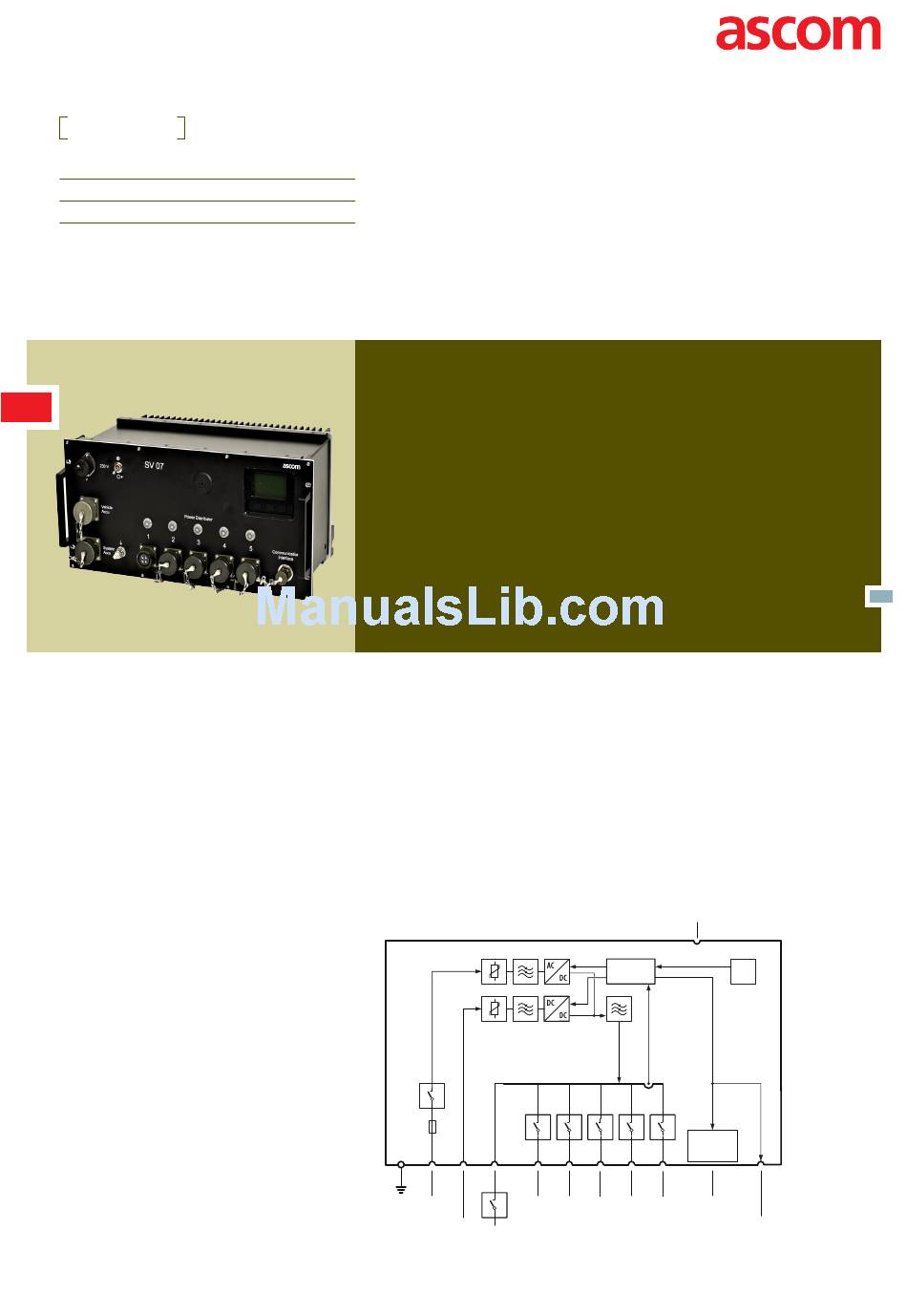

ASCOM SV 07 - DATASHEET 1 Product Sheet

PRODUCT SHEET
Product: SV 07
Segment : Defense
Division: Security Communication
The Ascom Supply Unit SV 07 enables the
uninterruptable and emission free supply of
communication equipment in vehicles, remote
stations and containers.
SV 07 enableS mobile communication
The Supply Unit SV 07 provides electrical power for communication
equipment with 24VDC nominal voltage. It is optimized for operation of
sensitive radio receivers and gets supplied by different sources such as AC
mains, generator or vehicle power. An additional system battery covers peak
demands and supplies uninterrupted power. Internal control circuits protect
the equipment. An integrated display informs the local user of relevant data
such as source voltage or load current. The Supply Unit SV 07 offers five
different protected connections and allows for parallel operation in order
to increase the available power.
The Supply Unit SV 07
230 VAC
24VDC [Power Distributor]
Vehicle Battery
[Vehicle Accu] System Battery
[System Accu]
Block diagram and wiring of the SV 07.
Ventilator
Control °C
LCD
Display
Communication
Interface
