- Page 1 DG - 30 & 70 Industrial Vacuum Cleaner Electric Read this manual completely and understand the Owner’s Manual instructions before operating the machine. “English Version” DG - 30 & 70...
- Page 2 DG - 30 & 70...
-
Page 3: Table Of Contents
General Safety Instructions First Operation Machine Operation Maintenance Roots Multiclean Ltd (RMCL) is not liable for any legal claims that may arise as a direct or indirect result of the contents of this manual. Roots Multiclean Ltd. RKG Industrial Estate, Coimbatore - 641 006, India. -
Page 4: Introduction
Roots reserves the right to change the product or due to this. contents of this manual without prior information. -
Page 5: Know Your Machine

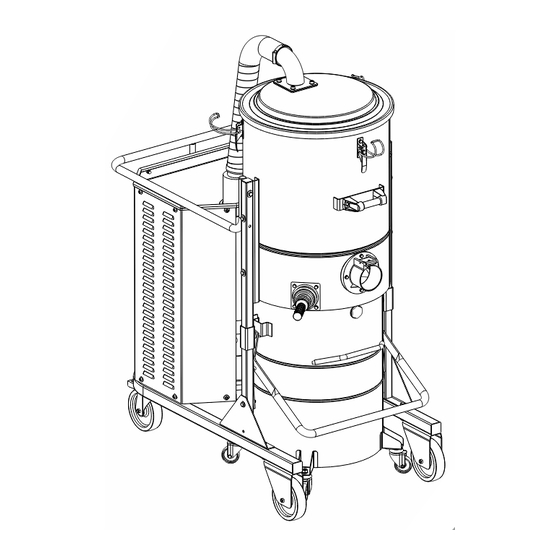

KNOW YOUR MACHINE DG 30 DG 70 DG - 30 & 70... -
Page 6: Technical Specification
TECHNICAL SPECIFICATION DG 30 DG 30 - Standard & Single Phase Version Technical data Units DG 30 Standard DG 30 HEPA DG 30 Single Phase Phase Ø Three phase Three phase Single phase Voltage V /Hz 400/50 400/50 230/50 Power 2.2/3.14 2.2/3.14 mm of H... - Page 7 TECHNICAL SPECIFICATION DG 70 DG 70 - Standard & Grey Version Technical data Units DG 70 & DG 70 Grey DG 70 HEPA DG 70 CONICAL Phase Ø Three phase Three phase Three phase Voltage V /Hz 400/50 400/50 400/50 Power 5.5/7.85 5.5/7.85...
-
Page 8: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS - Industrial Vacuum Cleaner Safety & Warning Symbols It is important that operators and all persons likely to Ÿ use the machine familiarize themselves with all All paragraphs in this manual referring to you personal accessories and controls, as well as their functions, safety, the safety of your machine and the environment before commencing operation. -
Page 9: 557410002-00, Rev - E
Ÿ reference so the operating cycle can be checked every time there are doubts. In the event of this manual being lost or damaged ask Roots for a new copy. - Read the operator’s and maintenance manual Structural damage and improper alterations or Ÿ... - Page 10 GENERAL SAFETY INSTRUCTIONS - Industrial Vacuum Cleaner Safety Plate and Symbols Handling of line cords Plates are affixed to the machine showing safety Ÿ During movement, keep the load low for greater Ÿ symbols and/ or messages. stability and safety. Always use specific filters for the type of dust or Open the box from its bottom side and remove it by Ÿ...
-
Page 11: First Operation
FIRST OPERATION Operational principle The machine must never be moved using fork- lift trucks or other equipment that lifts it off the The material will be sucked through the hose and it will floor. be moved to the suction container. The heavy particles To move the machine use the large handle. - Page 12 FIRST OPERATION Make sure the power cable and any extension used Ÿ Note: The hose with relevant couplings and vacuum are integral and in perfect condition. accessories are supplied as STANDARD. Block the machine by means of the brake provided. Ÿ...
-
Page 13: Machine Operation
MACHINE OPERATION Releasing and removing the removable - Never use the machine with the filter blocked. - If the arrow of the vacuum meter stays in the red container area even after cleaning the filter, the hose or Stop the machine motors by pressing the relevant STOP suction accessory could be blocked. -
Page 14: Maintenance
Release the locking clamps that holds the head. All maintenance and repair jobs must be Ÿ When resting the head on the support, be careful not performed directly by ROOTS or its authorized Ÿ to damage the power cable. dealers! - Page 15 MAINTENANCE Remove from underneath the machine the Lock Pin Ÿ (A) and Cotter Pin (B) that fasten the filter to the shaking lever. The container locking operation must be performed Ÿ by one person only, who must lower the two side levers simultaneously with both hands.
- Page 16 Do not use the filter shaker, while the machine is Ÿ Ÿ connection. operating. If the filter gets clogged, use the filter shaker. Do not do any kind of service, except Roots Ÿ Ÿ If DOL Starter gets tripped, check the reason and authorized representative. Ÿ...
- Page 17 DG - 30 & 70...
-
Page 18: Roots Multiclean Ltd
Roots Multiclean Ltd. R.K.G. Industrial Estate, Ganapathy, Coimbatore - 641 006, India. Phone: +91 (422) 4330 330, E-mail: rmclsales@rootsemail.com Web: rootsmulticlean.in Toll Free: 1800 41 99 77 9 DG - 30 & 70...
