GAS HEAT PUMP AIR CONDITIONER
INSTRUCTION MANUAL
2WAY Multi Series
3WAY Multi Series
Model No.: outdoor unit

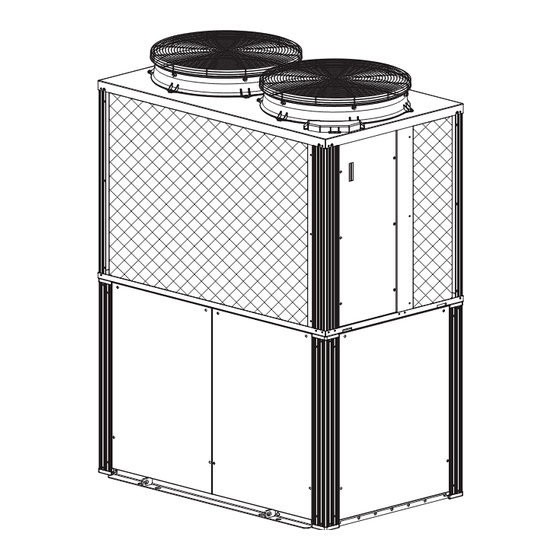

U-16GE3E5
U-16GF3E5
Thank you very much for purchasing our gas heat pump air conditioner.
Before operating the unit, read this instruction manual thoroughly and
keep them for future reference.
82664119438001
U-20GE3E5
U-20GF3E5
Panasonic Corporation
1006 Kadoma, Kadoma City, Osaka, Japan
U-25GE3E5
U-25GF3E5
CONTENTS
Characteristics and requests ..................... 2
Periodical inspection .................................. 3
Precautions before use .......................... 5
Precautions during use ........................... 6
Relocation/repair .................................... 9
Things you should know .......................... 10
Outdoor unit ..........................................S-1
Corresponding language table .............S-2
Use an equipment properly and save energy
NEW REFRIGERANT
R410A
U-30GE3E5
CV6233338514
Advertisement
Related Manuals for Panasonic U-16GE3E5
Summarization of Contents
Characteristics and Requests
About Your Gas Heat Pump Air Conditioner
Explains the basic function and characteristics of the gas heat pump air conditioner.
Ensure You Sign Up for a Regular Check Up Contract
Stresses the importance of periodical inspections for long-term comfort and efficient operation.
Requests for Service
Details the 'Oil Inspection' notification and advises contacting the dealer for service.
Changing Engine Oil
Emphasizes periodic engine oil and filter changes for engine health and troubleshooting.
Periodical Inspection
Test Operation Inspection Items
Lists key inspection items performed during a test operation for system verification.
Periodical Inspection Details
Guarantee Period
Defines the warranty period for the unit and its parts after test operation or delivery.
Periodical Inspections After Guarantee Expires
Outlines inspection items, replacement parts, and adjustments after the warranty period.
Safety Precautions - General
Warning and Caution Symbols
Explains the significance of WARNING and CAUTION symbols used in the manual.
Precautions Before Use
Details critical safety instructions to follow before operating the unit for the first time.
Safety Precautions - Installation & Operation
Cautions for Installation Environment
Advises on safe installation locations, grounding, circuit breakers, and fuses.
Precautions During Use
Provides essential safety guidelines to follow while the unit is in operation.
Safety Precautions - Operational Risks
Operational Hazards and Responses
Covers risks like exposure to air, refrigerant leaks, fuel gas leaks, and abnormal smells/sounds.
Cautions for Unit Handling
Warns against opening panels, touching hot parts, using sprays, and blocking airflow.
Safety Precautions - Usage Restrictions
Restricted Applications and Placement
Lists unsuitable uses and advises against placing objects in the air path or on the unit.
Operating Requests and Power Source Guidelines
Provides instructions on remote control use, air filters, door/window operation, and power source management.
Safety Precautions - Emergency & Relocation
Emergency Power Shutdown and Child Safety
Details emergency power disconnection and child usage guidelines.
Professional Relocation and Repair
Stresses consulting dealers for relocation and repairs to prevent hazards like leaks or fire.
Refrigerant Information
Provides information on the refrigerant type (R410A) and its global warming potential.
Things You Should Know
Special Use and Cautions
Clarifies that the unit is for dwelling use only and lists specific items not to preserve with it.
Power Failure and Malfunction Procedures
Explains actions to take during power outages or malfunctions, including restarting the unit.
Engine Oil Check and Periodic Maintenance
Describes the 'Oil Check' display on the remote and the necessity of periodic engine checks.
Operating Conditions
Cooling Mode Conditions
Specifies the acceptable outdoor and indoor temperature ranges for cooling mode operation.
Heating Mode Conditions
Specifies the acceptable outdoor and indoor temperature ranges for heating mode operation.
Markings for Directive 2014/68/EU (PED)
Rating Nameplate Figure and Data
Illustrates the rating nameplate and provides tabular data for various model specifications.
