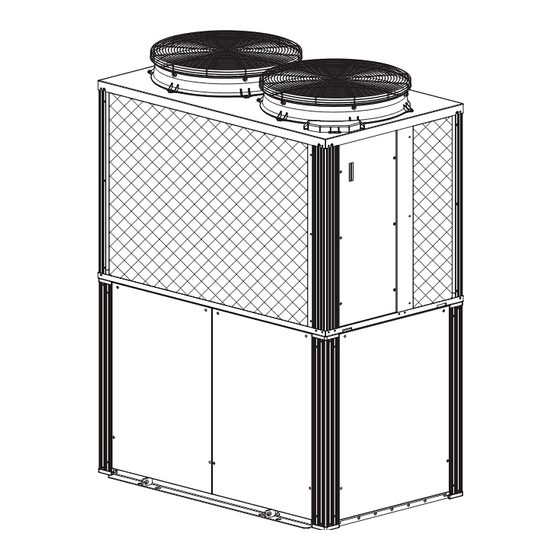

GAS HEAT PUMP AIR CONDITIONER
INSTRUCTION MANUAL
2WAY Multi Series
3WAY Multi Series
Model No.: outdoor unit
U-16GE3E5
U-16GF3E5
Thank you very much for purchasing our gas heat pump air conditioner.
Before operating the unit, read this instruction manual thoroughly and
keep them for future reference.
82664119438001
U-20GE3E5
U-20GF3E5
Panasonic Corporation
1006 Kadoma, Kadoma City, Osaka, Japan
U-25GE3E5
U-25GF3E5
CONTENTS
Characteristics and requests ..................... 2
Periodical inspection .................................. 3
Precautions before use .......................... 5
Precautions during use ........................... 6
Relocation/repair .................................... 9
Things you should know .......................... 10
Outdoor unit ..........................................S-1
Corresponding language table .............S-2
Use an equipment properly and save energy
NEW REFRIGERANT
R410A
U-30GE3E5
CV6233338514

Advertisement

Table of Contents

   Also See for Panasonic 2WAY Multi Series

   Summary of Contents for Panasonic 2WAY Multi Series

  • Page 1: Table Of Contents

    GAS HEAT PUMP AIR CONDITIONER NEW REFRIGERANT R410A INSTRUCTION MANUAL 2WAY Multi Series 3WAY Multi Series Model No.: outdoor unit U-16GE3E5 U-20GE3E5 U-25GE3E5 U-30GE3E5 U-16GF3E5 U-20GF3E5 U-25GF3E5 Thank you very much for purchasing our gas heat pump air conditioner. Before operating the unit, read this instruction manual thoroughly and keep them for future reference.
  • Page 2: Characteristics And Requests

    CHARACTERISTICS AND REQUESTS The gas heat pump air conditioner (GHP) uses gas as the fuel to drive the compressor. As it uses gas engine, there are various characteristics. As the unit does not easily frost, defrosting operations are infrequent even on very cold days, allowing the unit to provide stable and continuous heating.
  • Page 3: Periodical Inspection

    In order to have a comfortable operation of GHP for a long period, periodical inspections are necessary. When you purchase your GHP, sign up for Panasonic’s periodical inspections contract system. When you sign up for a periodical inspection, specialist will call on you.
  • Page 4 PERIODICAL INSPECTION GUARANTEE PERIOD The guarantee period is ONE year after the date of a successful test operation and the product delivery. However, the engine itself and periodical replaced parts are guaranteed for ONE year after a successful test operation and the product delivery or 2000 hours in operation whichever comes earlier. PERIODICAL INSPECTIONS AFTER YOUR GUARANTEE EXPIRES The number of inspections depends on the operating hours for a period of one year.
  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS SAFETY PRECAUTIONS Before operating the unit, be sure to read the SAFETY PRECAUTIONS. Listed below are two types of precautions, one is a WARNING and the other is a CAUTION. Be sure to obey these instructions for safety sake. This symbol refers to a hazard or unsafe practice which can result in severe personal injury WARNING or death.
  • Page 6: Precautions During Use

    SAFETY PRECAUTIONS CAUTION Do not connect the ground wire to any gas pipes, water pipes, Ascertain there is no lightening rods or telephone ground wires. If the ground wire is faulty, it may result in an in the area surrounding the electrical shock.
  • Page 7 SAFETY PRECAUTIONS WARNING If the outdoor unit leaks fuel gas, It could damage your health. then turn off the air conditioner, close the main gas valve and contact your local gas company or service company or dealer for If the refrigerant leaks, then turn off the air conditioner and ventilate the room.
  • Page 8 SAFETY PRECAUTIONS CAUTION It might badly affect to animals or plants. It could cause a deterioration in the quality of food stuffs and so forth. indoor unit. It could cause damage to the electrical insulation of the indoor unit and electric shock.
  • Page 9: Relocation/repair

    SAFETY PRECAUTIONS WARNING Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply in case of emergency. CAUTION This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards...
  • Page 10: Things You Should Know

    THINGS YOU SHOULD KNOW All about special use. In case of a malfunction If, during operation, a malfunction should occur due to lightning, radio waves, power source noise etc., CAUTION then turn off the power source switch. To re-start the operation, turn on the power switch This air conditioner is for use in dwellings space only.
  • Page 11: Markings For Directive 2014/68/eu (ped)

    MARKINGS FOR DIRECTIVE 2014/68/EU (PED) RATING NAMEPLATE FIGURE Tabulation of Various date U-16GE3E5 220/230/240V~ 50Hz 1.17kW, 5.35A 11.5 kg 41.5 bar 25.0 bar U-20GE3E5 220/230/240V~ 50Hz 1.12kW, 5.18A 11.5 kg 41.5 bar 25.0 bar U-25GE3E5 220/230/240V~ 50Hz 1.80kW, 8.39A 11.5 kg 41.5 bar 25.0 bar U-30GE3E5...
  • Page 12 – NOTE – EN - 12...
