Installation Instructions

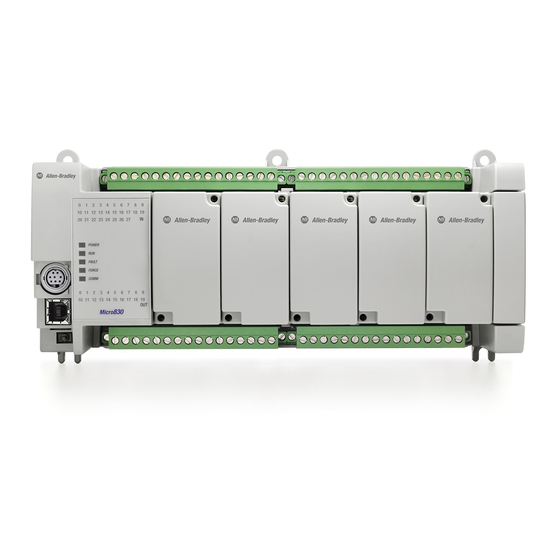

Micro850 48 Point Programmable Controllers
Catalog Numbers 2080-LC50-48AWB, 2080-LC50-48QWB,
2080-LC50-48QBB, 2080-LC50-48QVB, 2080-LC50-48QWBK
Catalog numbers with the suffix 'K' are conformal coated and their specifications are the same as non-conformal
coated catalogs.
http://rockwellautomation.com/literature
Cette publication est disponible en français
sous forme électronique (fichier PDF). Pour la
FR
télécharger, rendez-vous sur la page Internet
indiquée ci-dessus.
Questa pubblicazione è disponibile in Italiano
IT
in formato PDF. Per scaricarla collegarsi al sito
Web indicato sopra.
Diese Publikation ist als PDF auf Deutsch
verfügbar. Gehen Sie auf die oben genannte
DE
Web-Adresse, um nach der Publikation zu
suchen und sie herunterzuladen.
Esta publicación está disponible en español
como PDF. Diríjase a la dirección web indicada
ES
arriba para buscar y descarga esta publicación.
Table of Contents
Topic
Esta publicação está disponível em portugués
como PDF. Vá ao endereço web que aparece
PT
acima para encontrar e fazer download da
publicação.
ZH
ZC
KO
Page
2
7
8
8
9
9
12
14
Advertisement
Related Manuals for Allen-Bradley 2080-LC50-48QBB
Summary of Contents for Allen-Bradley 2080-LC50-48QBB
-
Page 1: Table Of Contents
Installation Instructions Micro850 48 Point Programmable Controllers Catalog Numbers 2080-LC50-48AWB, 2080-LC50-48QWB, 2080-LC50-48QBB, 2080-LC50-48QVB, 2080-LC50-48QWBK Catalog numbers with the suffix ‘K’ are conformal coated and their specifications are the same as non-conformal coated catalogs. http://rockwellautomation.com/literature Cette publication est disponible en français Esta publicação está... -
Page 2: Important User Information
Micro850 48 Point Programmable Controllers Important User Information Solid state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (Publication SGI-1.1 available from your local Rockwell Automation sales office or online at http://rockwellautomation.com/literature) describes some important differences between solid state equipment and hard-wired electromechanical devices. - Page 3 Micro850 48 Point Programmable Controllers Environment and Enclosure ATTENTION: This equipment is intended for use in a Pollution Degree 2 industrial environment, in overvoltage Category II applications (as defined in IEC 60664-1), at altitudes up to 2000 m (6562 ft) without derating. This equipment is not intended for use in residential environments and may not provide adequate protection to radio communication services in such environments.
- Page 4 Micro850 48 Point Programmable Controllers North American Hazardous Location Approval The following modules are North American Hazardous Location approved: 2080-LC50-48AWB, 2080-LC50-48QWB, 2080-LC50-48QBB, 2080-LC50-48QVB, 2080-LC50-48QWBK The following information applies when Informations sur l’utilisation de cet operating this equipment in hazardous équipement en environnements locations: dangereux: Products marked "CL I, DIV 2, GP A, B, C, D"...
- Page 5 Micro850 48 Point Programmable Controllers WARNING: • When used in a Class I, Division 2, hazardous location, this equipment must be mounted in a suitable enclosure with proper wiring method that complies with the governing electrical codes. • If you connect or disconnect the serial cable with power applied to this module or the serial device on the other end of the cable, an electrical arc can occur.
- Page 6 Micro850 48 Point Programmable Controllers ATTENTION: • Read this document and the documents listed in the Additional Resources section about installation, configuration, and operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
-
Page 7: Additional Resources
Grounding Guidelines, publication 1770-4.1 If you would like a manual, you can: • download a free electronic version from the Internet: http://rockwellautomation.com/literature • purchase a printed manual by contacting your local Allen-Bradley distributor or Rockwell Automation representative Publication 2080-IN008C-EN-P - August 2017... -
Page 8: Overview
Micro850 48 Point Programmable Controllers Overview The Micro850 48-point controller is an expandable brick style controller with embedded inputs and outputs. It can accommodate up to five plug-in modules and accommodates any 24V DC output power supply that meets minimum specifications such as the optional Micro800 power supply, 2080-PS120-240VAC. -
Page 9: Status Indicator
Micro850 48 Point Programmable Controllers Status Indicator Input status Network status Module status Power status Run status Fault status Force status Serial communications status Output status 45037 Mount the Module Most applications require installation in an industrial enclosure to reduce the effects of electrical interference and environmental exposure. - Page 10 DIN rail. 2. Push the DIN rail latch back into the latched position. Use DIN rail end anchors (Allen-Bradley part number 1492-EA35 or 1492-EAHJ35) for vibration or shock environments. To remove your controller from the DIN rail, pry the DIN rail latch downwards until it is in the unlatched position.
- Page 11 Micro850 48 Point Programmable Controllers Panel Mounting Dimensions 108 (4.25) 108 (4.25) (3.9) Measurements are in millimeters (inches) 45917 Use Surge Suppressors Because of the potentially high current surges that occur when switching inductive load devices, such as motor starters and solenoids, we recommend the use of some type of surge suppression to protect and extend the operating life of the controllers output contacts.
-
Page 12: Wire The Controller
Micro850 48 Point Programmable Controllers Wire the Controller 2080-LC50-48AWB / 2080-LC50-48QWB Input Terminal Block I-06 COM0 I-01 I-03 I-05 I-08 I-10 COM2 I-00 I-02 I-04 COM1 I-07 I-09 I-11 I-12 TERMINAL BLOCK 1 I-13 I-15 I-17 I-19 I-20 I-22 I-24 I-26 I-14 I-16... - Page 13 Micro850 48 Point Programmable Controllers Control Drawing for Class 1 Division 2 Applications Hazardous Location Class 1 Division 2, Non-Hazardous Location Groups A, B, C, and D Any associated apparatus with Micro800 Universal Serial Bus (USB) connection Controller USB Port USB Port = 5V DC = 500 A...
-
Page 14: Specifications
Micro850 48 Point Programmable Controllers Specifications General Specifications Attribute 2080-LC50 -48AWB -48QWB -48QVB -48QBB Number of I/O 48 (28 inputs, 20 outputs) Dimensions 90 x 238 x 80 mm HxWxD (3.54 x 9.37 x 3.15 in.) Shipping 0.725 kg (1.60 lb) weight, approx. - Page 15 Micro850 48 Point Programmable Controllers General Specifications Attribute 2080-LC50 -48AWB -48QWB -48QVB -48QBB Pilot duty rating C300, R150 – Isolation 250V 250V 50V (continuous), Reinforced voltage (continuous), (continuous), Insulation Type, I/O to Aux and Reinforced Reinforced Network, Inputs to Outputs. Insulation Type, Insulation Type, Type tested for 60 s @ 720V DC, I/O...
- Page 16 Micro850 48 Point Programmable Controllers Input Specifications Attribute 2080-LC50-48AWB 2080-LC50-48QWB / 2080-LC50-48QVB / 2080-LC50-48QBB 120V AC Input High Speed Standard DC Input DC Input (Inputs 12 and (Inputs 0…11) higher) Number of inputs Input group to backplane Verified by the Verified by the following dielectric tests: isolation following dielectric...
- Page 17 Micro850 48 Point Programmable Controllers Output Specifications Attribute 2080-LC50-48AWB / 2080-LC50-48QVB / 2080-LC50-48QBB 2080-LC50-48QWB Relay Output High Speed Standard Output Output (Outputs 4 and (Outputs 0...3) higher) Number of outputs Output voltage, min 5V DC, 5V AC 10.8V DC 10V DC Output voltage, max 125V DC, 265V AC 26.4V DC...
- Page 18 Micro850 48 Point Programmable Controllers Environmental Specifications Attribute Value Temperature, IEC 60068-2-1 (Test Ad, Operating Cold), operating IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): -20…65 °C (-4…149 °F) Temperature, 65 °C (149 °F) surrounding air, max Temperature, IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold),...
- Page 19 Micro850 48 Point Programmable Controllers Certifications Certification (when Value product is marked) c-UL-us UL Listed Industrial Control Equipment, certified for US and Canada. See UL File E322657. UL Listed for Class I, Division 2 Group A,B,C,D Hazardous Locations, certified for U.S. and Canada. See UL File E334470. European Union 2014/30/EU EMC Directive, compliant with: EN 61326-1;...
- Page 20 Please contact your local Rockwell Automation representative for the return States procedure. Allen-Bradley, Rockwell Automation, Micro800, Micro830, Micro850, and TechConnect are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies. Rockwell Automation maintains current product environmental information on its website at http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page.
