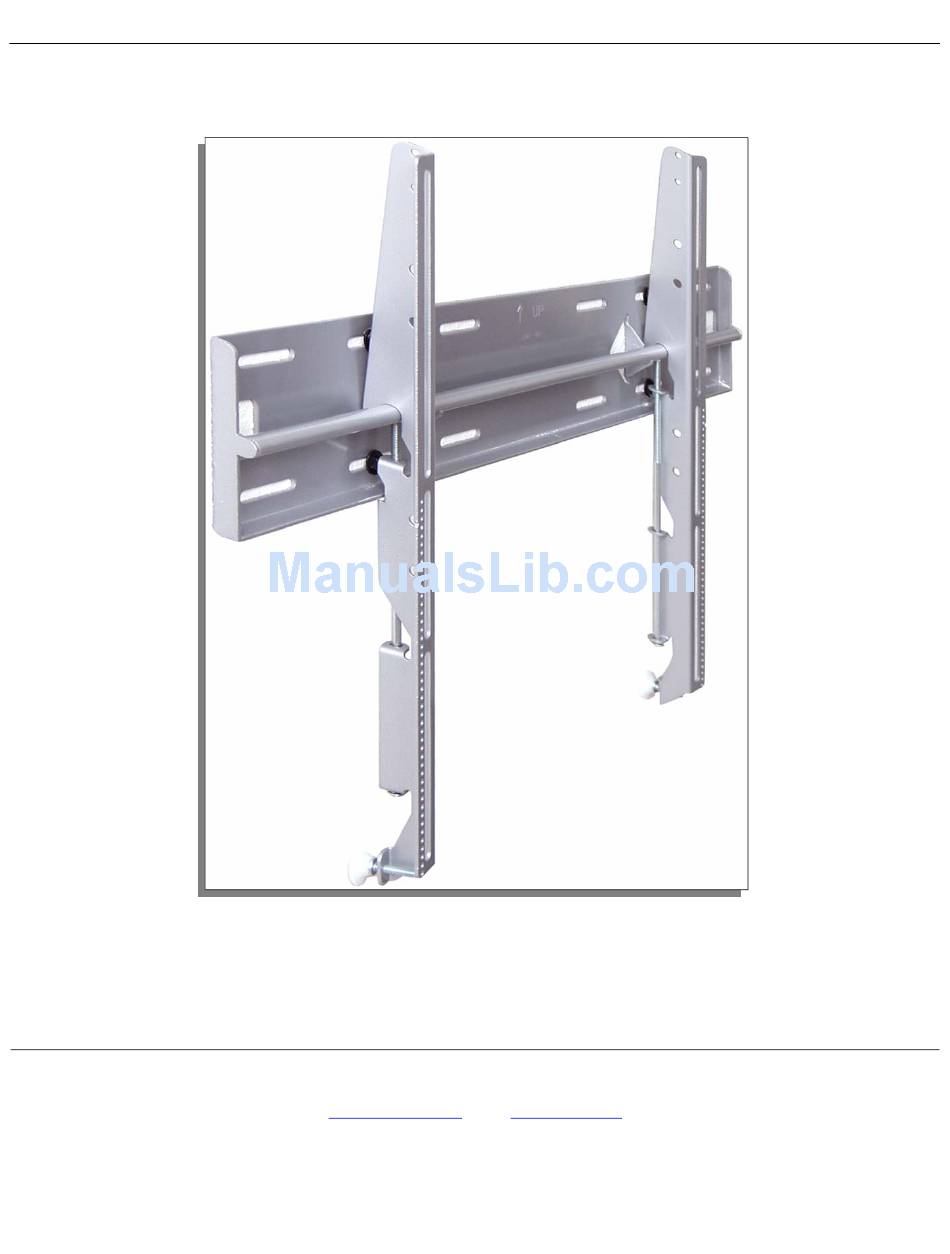

INSTALLATION MANUAL

PWM-F110
Premier Mounts
3130 E. Miraloma Avenue
Anaheim, CA 92806
Phone: (800) 368-9700
Fax: (800) 832-4888
mounts@mounts.com
www.mounts.com
IN-PWMF110.R1

Advertisement

Table of Contents
loading

Summary of Contents for Pioneer PWM-F110 - Bracket For Plasma Panel

  • Page 1: Installation Manual

    INSTALLATION MANUAL PWM-F110 Premier Mounts 3130 E. Miraloma Avenue Anaheim, CA 92806 Phone: (800) 368-9700 Fax: (800) 832-4888 mounts@mounts.com www.mounts.com IN-PWMF110.R1...
  • Page 2 PBL-110 Projector Mount Page - 2 - Installation Manual...
  • Page 3: Table Of Contents

    PWM-F110 Table of Contents Warning Statements ............................- 4 - Parts List ................................- 6 - Installation Tools ..............................- 6 - Mounting Bracket Installation ........................- 7 - Wall Stud Location ............................- 10 - Installing the Flat Panel Display ........................- 14 - Technical Specifications ..........................- 16 - Warranty ................................- 17 - Contact Premier Mounts ..........................- 17 - Notes ................................- 18 -...
  • Page 4: Warning Statements

    PWM-F110 Warning Statements Safety Precautions This wall mount should be installed by qualified personnel having sufficient skill and competence to install it. Qualified installation specialists or your dealer should install the mount and set up the plasma television in order to avoid personal injury or property damage. Premier Mounts does not assume liability for injury or damage caused by improper installation, mounting or setup of the plasma television, misuse, modification or natural disasters.
  • Page 5 PWM-F110 Mount Overview This PWM-F110 Plasma Wall Mount may be sold as part of a system or as an independent component. Whichever way it is purchased the installer must take care to use only the hardware and components that come included in this package and that it only be used in conjunction with the appropriate plasma television.
  • Page 6: Parts List

    PWM-F110 Parts List NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800) 368-9700 Ext.224.
  • Page 7: Mounting Bracket Installation

    PWM-F110 Mounting Bracket Installation NOTE: Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious personal injury and possible damage to the flat panel. WARNING: INVERT THE FLAT PANEL AND PLACE IT ON A SOFT, FLAT SURFACE TO PREVENT DAMAGE TO THE FLAT PANEL.
  • Page 8 PWM-F110 Lay the mounting brackets on the back of the display (stamped arrows facing out) - (Figure 3). Mounting Brackets Bottom of Flat Panel Figure 3 Match the center of viewing guide with the centerline you marked in step 1 (Figure 4). The mounting brackets are designed with a center of viewing guide on the side of them (Figure 5).
  • Page 9 PWM-F110 Mounting Bracket Bottom of Flat Panel Center of Viewing Guide Center of Flat Bottom of the Align the Mounting Flat Panel Panel Brackets Figure 4 Figure 5 The Griplates™ have M4, M5, M6 and M8 hole patterns to fit the hardware that your flat panel requires. EXAMPLE: If your flat panel uses M8 x 20 Phillip screws, use the M8 mounting points (Figure 6).
  • Page 10: Wall Stud Location

    PWM-F110 Wall Stud Location Using a (commercially available) wood stud finder, locate two 16" or 24" stud centers behind the wall. Once found, make a pencil marking on the center of the wood studs (Figure 8). NOTE: The wall plates have (3) 16" and (1) 24" mounting slot positions (see Technical Specifications on Page 16) Measure from the floor to the desired viewing height and mark the wall.
  • Page 11 PWM-F110 3. Place the bottom portion of the wall plate to the reference line and mark the four (4) lag bolt mounting points through the wall plate slots on the wall. 4. Level the wall plate with the reference arrow pointing up to the ceiling (Figure 10). Mounting Surfaces Wood studs: Drill four (4) ¼"...
  • Page 12 PWM-F110 5. Level and secure the plate to the wall with the reference arrow facing up to the ceiling. 6. Secure the plate using the four (4) 5/16" lag bolts and flat washers (supplied) –Figure 12. CAUTION: Do not over tighten the lag bolts. NOTE: Use a minimum diameter of 5/16”...
  • Page 13 PWM-F110 Level and secure the plate to the wall with the reference arrow facing up to the ceiling. Use a minimum diameter of 5/16” x 2 ¼” large concrete wedge anchors (commercially available) – (Figure 13). CAUTION: Do not over tighten the wedge anchors bolts. NOTE: Use a minimum diameter of 5/16”...
  • Page 14: Installing The Flat Panel Display

    PWM-F110 Installing the Flat Panel Display WARNING: AT LEAST (2) QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL. Raise the flat panel with the mounting brackets secured to the flat panel and insert the top hooks from each bracket to the rod from the wall plates (Figure 14).
  • Page 15 PWM-F110 Make any lateral shift adjustments and lock it by tightening the two (2) ¼”-20 Phillips screws found on the bottom of the mounting brackets. Use the wall bumper to adjust your flat panel. CAUTION: Do not over tighten the ¼”-20 screws to the rods (Figure 15). NOTE: To remove the flat panel from the wall, simply back off the ¼”-20 screws using a Phillips screwdriver and lift the unit of the wall carefully.
  • Page 16: Technical Specifications

    PWM-F110 Technical Specifications (711.2) A. Wall plate (406.4) B. Mounting brackets (406.4) C. ¼” x 20 Safety (406.4) screws D. Leveling feet (88.9) (31.75) (606.92) (49.53) (127) (36.91) Figure 16 Page 16 Installation Manual...
  • Page 17: Warranty

    PWM-F110 Warranty Limited Lifetime Warranty All Premier Mounts products carry a limited lifetime warranty from ship date against defects in materials and workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury. Contact Premier Mounts In the event of missing and/or damaged equipment, or technical questions, the following information can help in the completion of the installation.
  • Page 18: Notes

    PWM-F110 Notes Premier Mounts 3130 E. Miraloma Avenue Anaheim, CA 92806 Phone: (800) 368-9700 Fax: (800) 832-4888 mounts@mounts.com www.mounts.com IN-PWMF110.R1 Page - 18 - Installation Manual...
