Standard Features
• ComfortNet™ Communicating System compatible
• Heavy-duty aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Self-calibrating modulating gas valve
auto-configure for each installation
• Durable Silicon Nitride igniter
• Quiet variable-speed induced draft blower
• Utilizes ComfortNet™ communicating,
two-stage or single-stage thermostats
• Self-diagnostic control board with constant memory
fault code history output to a dual 7-segment display
• Color-coded low-voltage terminals with provisions
for electronic air cleaner and humidifier
• Efficient and quiet variable-speed airflow system gently
ramps up or down according to heating or cooling demand
• Multiple continuous fan speed options offer quiet air circulation
• Auto-Comfort and enhanced dehumidification modes available
• All models comply with California 40 ng/J
Low NOx emissions standard
• AHRI Certified; ETL Listed
SS-GMVM97
GMVM97 / GCVM97
Cabinet Features
• Designed for multi-position installation -
GMVM97: upflow, horizontal left or right
GCVM97: downflow, horizontal left or right
• Certified for direct vent (2-pipe)
or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side venting
• Convenient left or right connection
for gas and electrical service
• Cabinet air leakage (Q
• Heavy-gauge steel cabinet with durable finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side return with
easy-cut tabs for effortless removal
in bottom air-inlet applications
* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the Lifetime Heat
Exchanger Limited Warranty (good for as long as you own your home), 10-Year Unit Replacement Limited Warranty
and 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online
registration is not required in California or Québec.
www.goodmanmfg.com

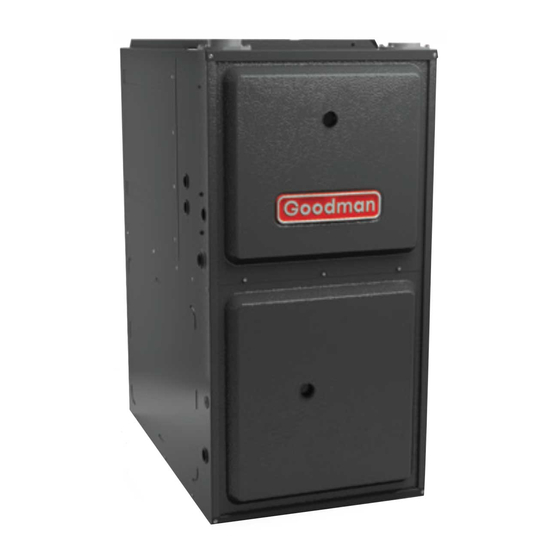

Modulating, Variable-Speed
ECM Gas Furnace
Up to 98% AFUE
Heating Input: 60,000-120,000 BTU/h
Contents
Nomenclature ........................................ 2
Product Specifications ........................... 3
Dimensions ............................................ 4
Airflow Specifications ............................ 6
Wiring Diagram .................................... 11
Accessories .......................................... 12
) ≤ 2%
Leak
ENERGY STAR® and the ENERGY STAR mark are registered trademarks
owned by the U.S. Environmental Protection Agency. ENERGY STAR
products are third-party certified by an EPA-recognized Certification
Body. Products that earn the ENERGY STAR prevent greenhouse gas
emissions by meeting strict energy efficiency guidelines set by the
U.S. Environmental Protection Agency.
12/15
Supersedes 8/15
