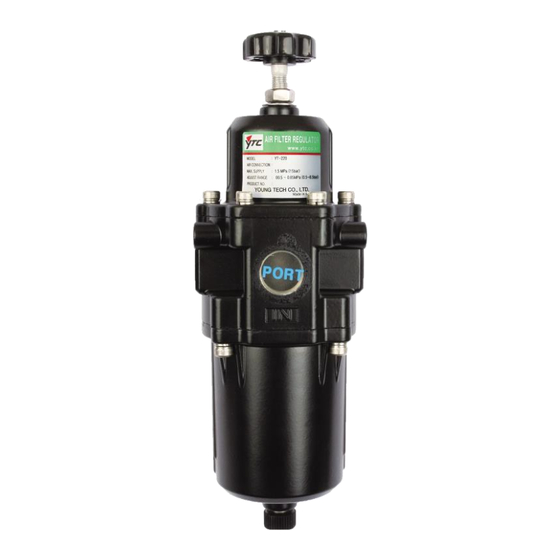

- Page 1 Air Filter Regulator PRODUCT MANUAL YT-200 / 205 / 220 / 225 Series YT-200 YT-205 YT-220 YT-225 VERSION 1.01...
-
Page 2: Table Of Contents
Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual Contents Introduction ........................... 3 General Information for the users ................... 3 Manufacturer Warranty ......................3 Product Description ........................4 General ............................ 4 Main Features and Functions ....................4 Label Description ........................ -
Page 3: Introduction
Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual 1. Introduction General Information for the users Thank you for purchasing Young Tech Co., Ltd products. Each product has been fully inspected after its production to offer you the highest quality and reliable performance. Please read the product manual carefully prior to installing and commission the product. -
Page 4: Product Description
Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual 2. Product Description General Air filter regulator, YT-200 / 205 / 220 / 225, receives the main supply air pressure and supplies to the desirable level of pressure to a positioner or other pneumatically operating devices. -
Page 5: Label Description
Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual Label Description Fig. L-1: YT-200 Fig. L-2: YT-205 Fig. L-3: YT-220 Fig. L-4: YT-225 • MODEL : Indicates the model number and any options of the positioner. •... -
Page 6: Product Code
Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual Product Code YT-200 / 205 / 220 / 225 1 0 ~ 0.42 MPa Adjustable range 0 ~ 0.84 MPa PT (only YT-200 / 220) Air Connection type NONE Gauge 0 ~ 0.4 MPa... -
Page 7: Operation Logic
Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual Operation Logic When ① the adjustment bolt is turned clockwise, ④ the adjusting spring will take the force pressing ⑤ the diaphragm and ⑥ the stem will move downward and the supply pressure (IN) will go out to the secondary output port (OUT). -
Page 8: Yt-200 / 205 (Manual Drain Type)
Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual Parts and Assembly 2.7.1 YT-200 / 205 (Manual drain type) Ver. 1.01... -
Page 9: Yt-220 / 225 (Manual Drain Type)
Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual 2.7.2 YT-220 / 225 (Manual drain type) Ver. 1.01... -
Page 10: Product Dimension
Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual Product Dimension 2.8.1 YT-200 / 205 (Manual drain type) 2.8.2 YT-200 / 205 (Auto drain type) Ver. 1.01... -
Page 11: Yt-220 / 225 (Manual Drain Type)
Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual 2.8.3 YT-220 / 225 (Manual drain type) 2.8.4 YT-220 / 225 (Auto drain type) Ver. 1.01... - Page 12 Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual Pressure and Flow Characteristics 2.9.1 YT-200 / 205 2.9.2 YT-220 / 225 Ver. 1.01...
-
Page 13: Installation
Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual 3. Installation Safety When installing a unit, please ensure to read and follow safety instructions. ➢ Be sure to have protective equipment and comply with safety regulations. ➢... -
Page 14: Installation
Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual Installation ➢ The air filter regulator can be installed with or without a bracket depending on the field conditions. The air filter regulator is used to supply constant air pressure to various devices such as positioner, actuator and solenoid valve. -
Page 15: Maintenance
Air Filter Regulator YT-200 / 205 / 220 / 225 series Product Manual 4. Maintenance Replacement of Parts (Not applicable for YT-200, 200.) YT-205 / 225 require regular maintenance. . If necessary, replace the following parts. ➢ Ass’y-diaphragm : 1 ea Draining condensed water ➢... - Page 16 Product Manual Manufacturer: Young Tech Co., Ltd 81, Hwanggeum-ro, 89 Beon-gil, Yangchon-eup Gimpo-si, Gyeonggi-do, South Korea 10048 Tel: +82-31-986-8545 Fax: +82-70-4170-4927 Email: ytc.sales@rotork.com Homepage : http://www.ytc.co.kr Issued : 2018-08-28 Copyright © Young Tech Co., Ltd. All Rights Reserved. Ver. 1.01...
