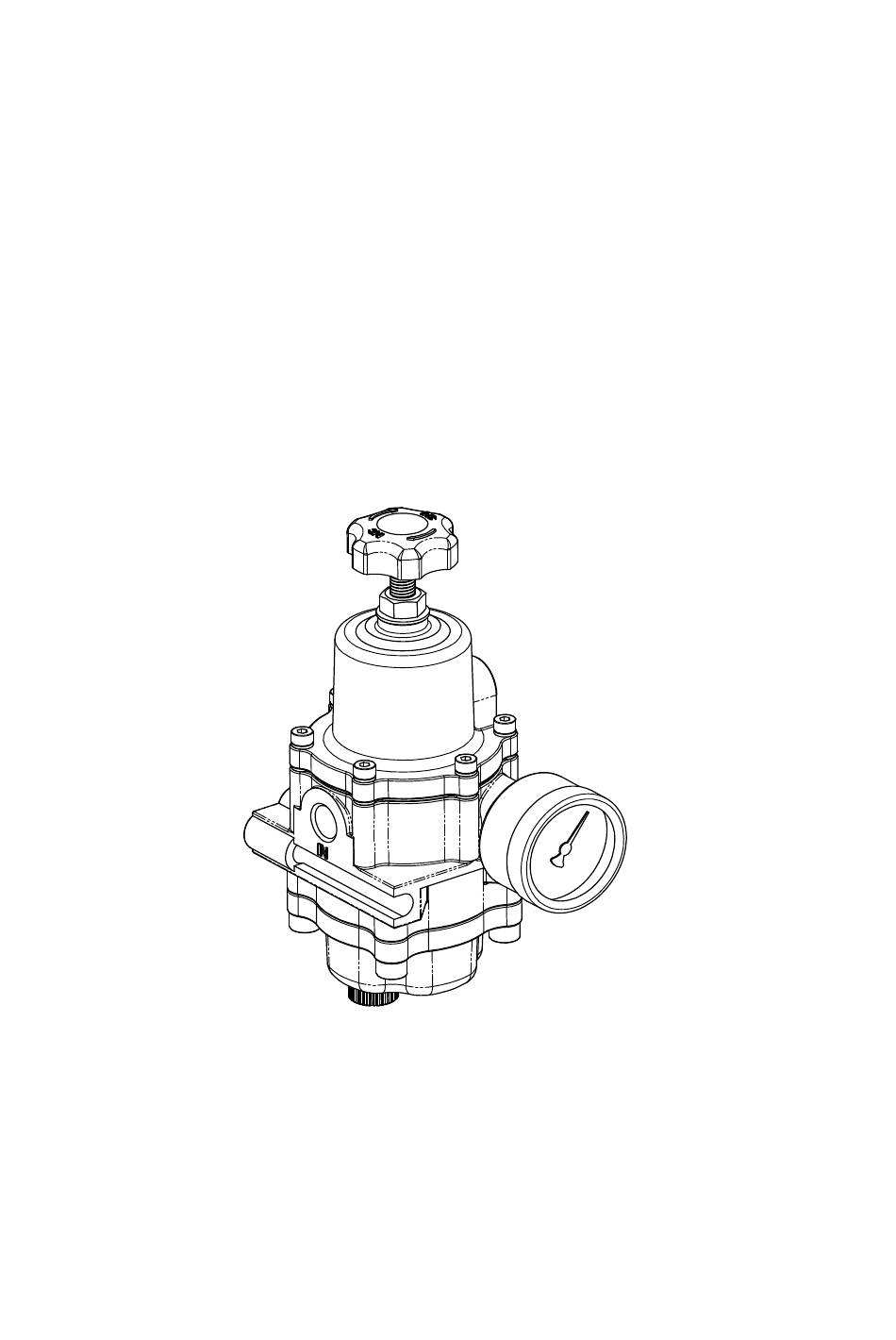

Air Filter Regulators
YT-200, YT-205
USER'S MANUAL
YTC
V.1.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YT-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ytc YT-200

Summary of Contents for Ytc YT-200

  • Page 1 Air Filter Regulators YT-200, YT-205 USER'S MANUAL V.1.02...

  • Page 2: Product Description

    Air Filter R egulators Y T-200, Y T-205 Product Description Air Filter Regulator, YT-200 (YT-205), receives main air pressure and supplies to the desirable level to a positioner or other devices. Product Characteristic Maintain desirable pressure level, regardless of fluctuation of pressure input.

  • Page 3: Specification

    Air Filter R egulators Y T-200, Y T-205 Specification YT-200 YT-205 Category Max Supply Pressure 15kgf/㎠ (231psi) Max Output Pressure 4.2kgf/㎠ 8.4kgf/㎠ 2.1kgf/㎠ Air Connection PT(NPT) 1/4 NPT1/4 Gauge Connection PT(NPT) 1/8 NPT1/8 -20~70℃(Standard), Ambient Temperature -20~120℃(High Temp.), -40~120℃(Low Temp.)

  • Page 4: Operation Logic

    Air Filter R egulators Y T-200, Y T-205 Operation Logic Air pressure is being supplied to output port by turning adjust bolt clockwise which will push diaphragm, then disconnects from stem and disc. The set pressure level stays by transferring pressure to lower diaphragm, which results to balance adjust spring. In case of higher pressure than setting, the pressure pushes diaphragm and pressure is released through the hole on spring case.

  • Page 5: Pipe Connection

    Before connecting with pipeline, please make sure pipeline is emptied, and the size of the pipeline is appropriate for required capacity. If YT-200 must be installed on the bracket, please make a bracket according to the product's dimension. <Figure 2>...
  • Page 6 Air Filter R egulators Y T-200, Y T-205 Instruction (1) Before supplying air pressure into YT-200, turn adjust bolt counter-clockwise, so the ring is not pushed. (2) Install pressure gauge on the secondary pressure output port. The pressure gauge indicates primary pressure that is being output.

  • Page 7: Maintenance

    Air Filter R egulators Y T-200, Y T-205 Maintenance Please refer to below table (repair kit) and parts' name. Before replacing any parts, please make sure to follow field's safety procedure and the manual to avoid any accidents and damages to the product. Repair kit Part Name Stem...

  • Page 8: Manufacturer Warranty

    Address : #662-8 Pungmu-Dong, Gimpo-City, Kyunggi-Do, South Korea Telephone: +82-31-986-8545 Fax: +82-31-986-2683 Website : http://www.ytc.kr User Manual and other information on the documents are subjected to change without any notice. Printed Date: Oct, 2007 Please visit website for most updated information.

This manual is also suitable for:

Yt-205
