Quick Links
Download this manual

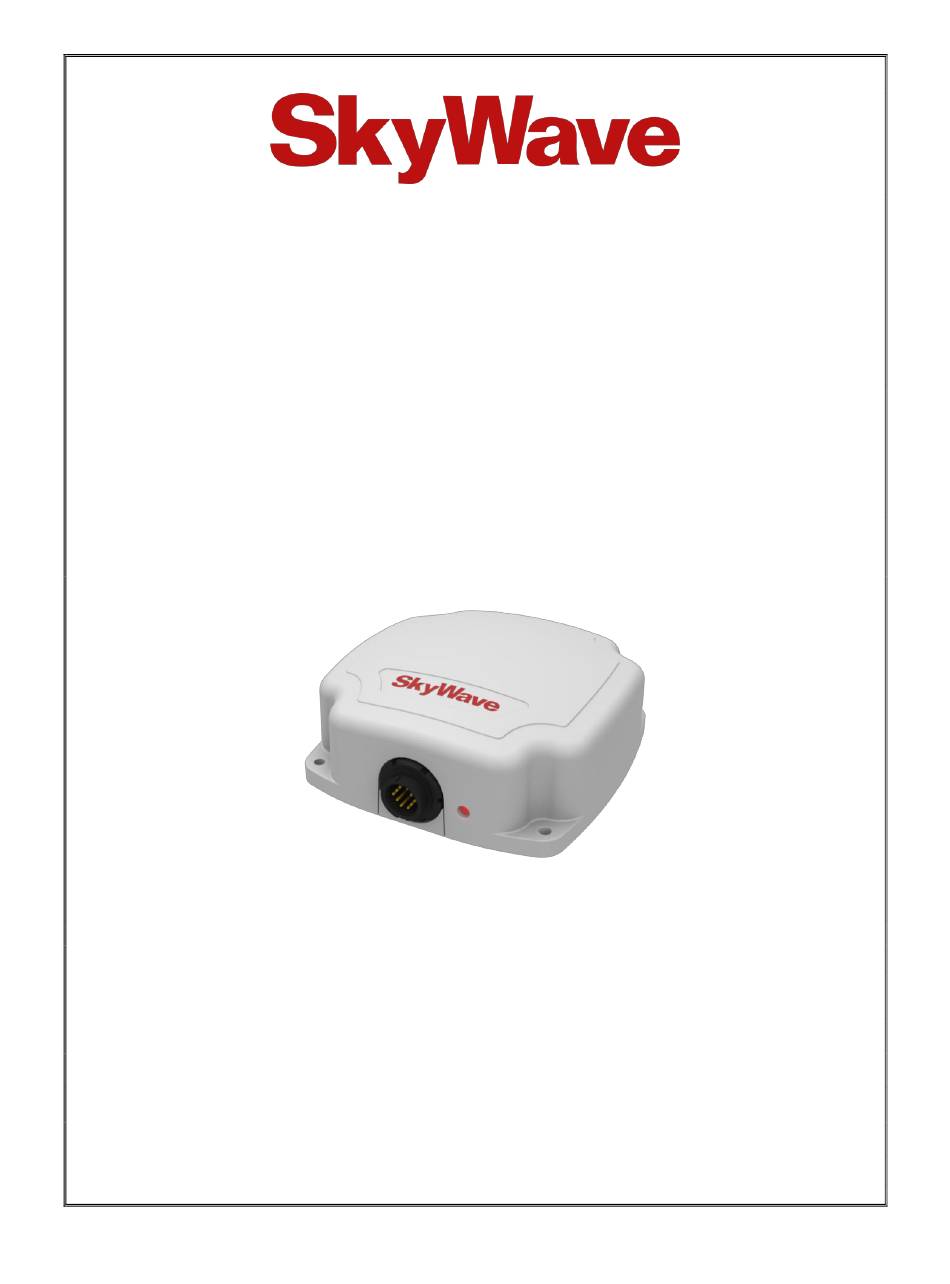

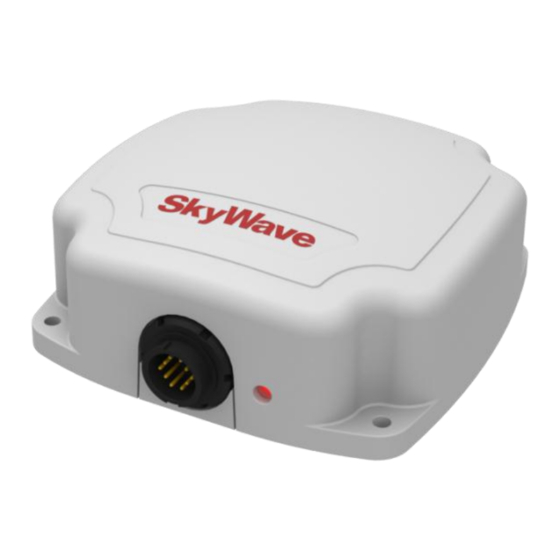

IDP 600 Terminal Series
Hardware Guide
T200, Version 02
The electronic version of this document allows
you to use the built-in Hyperlinks and
bookmarks when using Adobe Reader
© SkyWave Mobile Communications Inc.
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Need help?
Do you have a question about the IDP-690 and is the answer not in the manual?
Ask a question
Questions and answers
Related Manuals for SkyWave IDP-690
Touch terminals SkyWave IDP-680 Hardware Manual
Idp 600 terminal series (64 pages)
Touch terminals SkyWave IDP-782 Hardware Manual
(87 pages)
Touch terminals SkyWave IDP 800 Series Hardware Manual
(102 pages)
Touch terminals SkyWave IDP 700 Series Hardware Manual
(70 pages)
Summarization of Contents
Preface and Safety
What's New
Details updates and changes in the current document version compared to previous releases.
Purpose and Audience
Explains the document's objective, scope, and intended technical readers.
Safety, Liability, and Warranty
Covers safety warnings, precautions, installation risks, liability limits, and warranty terms.
Product Overview
Messaging System
Describes the SkyWave IsatData Pro satellite messaging system and its capabilities.
Terminal Features and Modes
Highlights IDP 600 terminal features, benefits, pass-through mode, and operating states.
Technical Specifications
Connector and Power
Details the terminal's connector, pin assignments, input voltage range, and power consumption.
Input/Output and Interfaces
Specifies digital/analog I/O configurations, serial interfaces (RS-232, RS-485), and electrical characteristics.
RF, GPS, and Physical Details
Covers RF frequency, GPS receiver specs, physical dimensions, enclosure materials, and LED indicators.
Environmental Conditions
Outlines operating temperature, humidity, vibration, shock, altitude, and chemical resistance ratings.
Installation Guide
Preparation and Activation
Covers pre-installation checks, shipping contents, mobile ID, and terminal activation procedures.
Mounting and Power Connection
Guides on fuse panel location, determining mounting location, and connecting power.
Cable Management and Registration
Provides guidelines for cable routing, protection, and the terminal registration process.
Cable Assembly
Tools, Materials, and Steps
Lists required tools and materials and details the steps for assembling custom cables for the terminal.
Troubleshooting
Registration Issues
Offers solutions for problems where the terminal fails to register or report to the network.
Appendices
Order Part Numbers
Lists part numbers for terminals, kits, and accessories for ordering purposes.
Cable Specifications
Details specifications for mating, extension, and adapter cables used with the terminals.
Drill Template
Provides a printable template with dimensions for drilling mounting holes during installation.
Reference
Acronyms and Glossary
Defines technical terms, acronyms, and abbreviations used throughout the document for clarity.
