Installation Instructions
Original Instructions

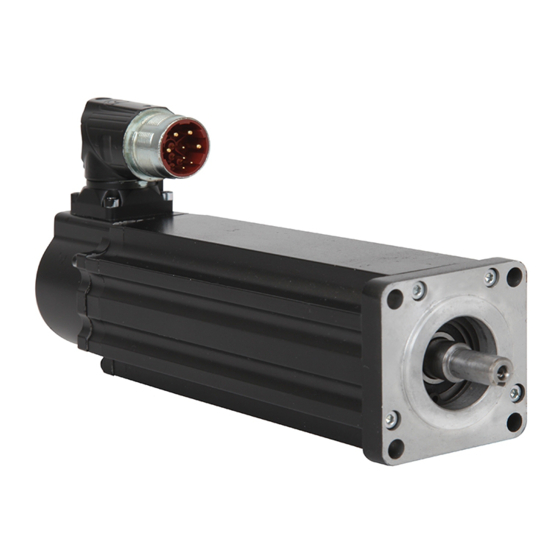

Kinetix VP Low Inertia Servo Motors
with 063...165 mm Frame Size
Catalog Numbers VPL-A0631, VPL-A0632, VPL-A0633, VPL-A0751, VPL-A0752, VPL-A0753, VPL-A1001, VPL-A1002, VPL-A1003,
VPL-A1152, VPL-A1153, VPL-A1303, VPL-A1304, VPL-A1306, VPL-B0631, VPL-B0632, VPL-B0633, VPL-B0751, VPL-B0752, VPL-B0753,
VPL-B1001, VPL-B1002, VPL-B1003, VPL-B1152, VPL-B1153, VPL-B1303, VPL-B1304, VPL-B1306, VPL-B1651, VPL-B1652, VPL-B1653,
VPL-B1654
Topic
Summary of Changes
This publication contains new and updated information as indicated in the following table.
Topic
Added the -W and -Q safety catalog number designators to the catalog number Feedback field
Added the Functional Safety topic
Updated the Relative humidity specification
Corrected the shaft-seal kit catalog number for VPL-A100 and VPL-B100 motors
Added Kinetix 5700 publications to Additional Resources
About the Kinetix VP Low Inertia Motors
Kinetix® VP low-inertia motors feature single-turn or multi-turn high-resolution absolute encoders, and are available with or without 24V DC
brakes. These compact brushless servo motors meet the demanding requirements of high-performance motion systems.
You are responsible for inspecting the equipment before accepting the shipment from the freight company. Check the items you receive against your
purchase order. Notify the carrier of shipping damage or missing items immediately. Store or operate your motor in a clean and dry location within
the
Environmental Specifications
ATTENTION: To avoid personal injury and damage to the motor, do not lift or handle the motor by the motor shaft. The cap on the shaft can come loose and cause
you to drop the motor.
Page
1
1
2
2
4
5
7
on
page
22.
Topic
Motor Dimensions (100...165 mm frame sizes)
Page
2
4
22
22
23
Page
8
10
11
22
22
23
