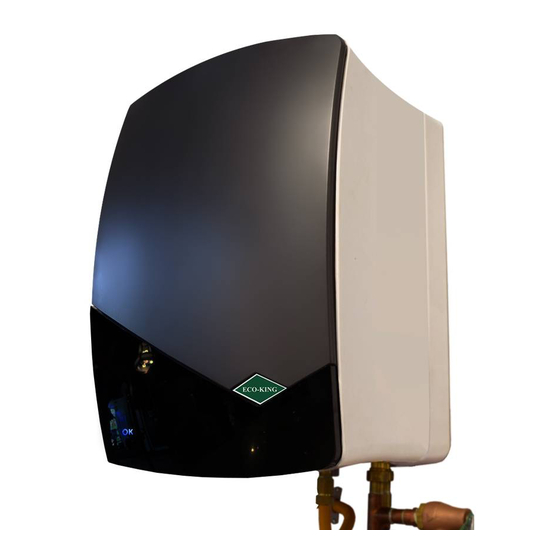

EcoKing C100 Installation Manual

Supreme high efficiency wall boiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

For Model numbers:
WARNING: If the information in this manual is
not followed exactly, a fire or explosion may
result causing property damage, personal injury
or loss of life.
WHAT TO DO IF YOU SMELL GAS:
high efficiency wall boiler
C100, C140, C200
H100, H140, H200
Installation
Service and maintenance
Start up
Parts
Switch off the appliance.
Shut off the gas supply.
Open the windows.
Do not try to light any appliance.
Do not touch any electric switch.
Do not use any phone in your building.
Leave the house.
Immediately call your gas supplier from a
neighbour's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
WHAT TO DO IF YOU SMELL FLUE
GASSES:
Switch off the appliance.
Open the windows.
Shut off the gas supply.
Leave the house.
Contact a registered installer or
a registered service center.
EcoKing Supreme
Installation Manual
2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C100 and is the answer not in the manual?

Questions and answers

Related Manuals for EcoKing C100

Summary of Contents for EcoKing C100

  • Page 1 EcoKing Supreme high efficiency wall boiler Installation Manual 2015 For Model numbers: C100, C140, C200 H100, H140, H200 Installation Service and maintenance Start up Parts WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

  • Page 2: Table Of Contents

    Table of contents Part 1 – Introduction Hazard definitions User responsibilities Boiler operation Manufacturer conditions Installer responsibilities When servicing boiler When pressure testing boiler Main parts Functionality of main parts Part 2 – Specifications / Technical data Part 3 - Appliance location Location checks Appliance Area Ventilation Air Openings Closet Installations...
  • Page 3 Table of contents (continued) Part 10 - Lighting the appliance / First start-up Fill and refill of the CH section General use of the control panel Setting of user parameters Weather dependent control Set the comfort level Set the maximum central heating temperature Set the hot water comfort Vent Diagnosis menu...

  • Page 5: Part 1 - Introduction

    Part 1 – Introduction Hazard definitions The following defined terms are used throughout this manual to bring attention to the presence of hazards of various risk levels or to important information concerning the life of the product. Indicates presence of hazards that can cause severe Warning personal injury, death or substantial property damage.
  • Page 6 Part 1 – Introduction FOR YOUR SAFETY, READ BEFORE OPERATING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance does not have a pilot. It is If you cannot reach your gas supplier, call equipped with an ignition device which the fire department.
  • Page 7 Compliance of this boiler with CSA B51 has not been verified due to an exemption provided in a provincial pressure vessel code. The installation of the EcoKing gas appliance must conform to the requirements of this manual, your local authority and the CAN/CGA B149 Installation Codes. Where required by the Authority, the installation must conform to the standard for Controls and Safety Devices for Automatically Fired Boilers ANSI/ASME CSD-1.

  • Page 8: User Responsibilities

    This manual contains information of the EcoKing Heating Only H100, H140, H200 and Combination C100, C140, and C200 boilers. Read all instructions, including this manual and all other information shipped with the boiler, before installing. Perform steps in the order given. Store the manual in the transparent envelope adjacent to the boiler.

  • Page 9: Main Parts

    Part 1 – Introduction The EcoKing is a high efficiency gas wall boiler and is designed for heating a central heating (CH) system and producing domestic hot water (DHW). The main functions of the EcoKing boiler are: 1.) Heating the house: Central Heating (CH) 2.) Producing Domestic Hot Water (DHW)
  • Page 10 Part 1 – Introduction Boiler dimensions All dimensions mentioned in the figures below are in inches.
  • Page 11 Part 1 – Introduction Main parts A: Fan B: ignition / ionisation electrode C: Flue gas temperature limiter (NTC) D: Maximum temperature fuse (TF) E: Manual vent F: Burner and heat exchanger G: Pump vent H: CH Supply sensor I: Magnetite filter J: Hydroblock K: Connections L: Internal expansion tank...

  • Page 12: Functionality Of Main Parts

    While a flow limiter takes care of the maximum hot water quantity, the tap water is heated up to about 61 °C (142 °F). The EcoKing boiler starts preparing tap water at a flow of 2.5 l / min (0.66 gal.

  • Page 13: Part 2 - Specifications / Technical Data

    155 / 529 155 / 529 200/ 628 power CH operation Ecoking C100, H100 Ecoking C140, H140 Ecoking C200, H200 4,7 – 26.6 / 5,8 – 40 / 7,9 – 54 / Input (0-2000 ft, gross calorific value) kW / Btu/h 16.000 –...
  • Page 14 High Altitude Operation The Ecoking boiler is designed to operate at its maximum listed capacity in installations less than or equal to 610 m (2000 ft) above Sea Level. Since the density of air decreases as elevation increases, maximum specified capacity should be de-rated for elevations above 610 m (2000 ft) in accordance with the table underneath.

  • Page 15: Part 3 - Appliance Location

    Location checks The wall must be strong enough to carry the weight of the EcoKing boiler. The boiler shall be installed such that the gas ignition system components are protected from water (dripping, spraying, rain, etc.) during boiler operation and service (circulator replacement, condensate trap, control replacement, etc.).

  • Page 16: Closet Installations

    Part 3 - Appliance location Closet Installations For closet installations, it is necessary to provide two ventilation air openings as shown in Figure 3-1 each providing a minimum area equal to 22 cm per kW (1 in per 1000 Btu/hr), but not less then 645 cm (100 in and within 152 mm (6”) of the top and bottom of the closet door.

  • Page 17: Prior To Wall Mounting

    Part 3 - Appliance location Prior to wall mounting Care must be taken to place the boiler in a safe location prior to installation on the wall to prevent damage to the mechanical connections. The delivery contains: The boiler; Installation manual for the installer; User manual for the homeowner; A wall support bracket;...

  • Page 18: Part 4 - General Venting

    Installations must comply with CSA B149.1 and local requirements. Warning The Ecoking boiler cannot share a common vent or air-intake with multiple appliances. Failure to comply will result in serious injury or death.

  • Page 19: Near Appliance Vent/Air-Intake Piping

    Part 4 - General venting Warning Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Failure to follow instructions may result in serious injury or death. Warning Only use vent and air systems as specified in this manual. Notice Venting Options - Due to potential moisture loading (build-up) along the exterior wall, sidewall venting may not be the preferred venting option.

  • Page 20: Installation Instruction Muelink & Grol Vent And Air System

    Part 4 - General venting Concentric installation These instructions must be followed together with the instructions in the manual that is supplied with the roof or wall terminal. That manual gives special instructions for applications, pressure drops, maintenance and mounting of the complete vent system.

  • Page 21: Cut-Able Installation

    Part 4 - General venting Figure 4.3 Bracket securing Warning Use only the provided self tapping screws, these screws have the correct length. Using screws with a longer length will damage the actual PP vent. Cut-able installation These instructions must be followed together with the instructions in the manual that is supplied with the roof or wall terminal.
  • Page 22 Part 4 - General venting 3. Check that the seal is retained correctly in the groove. 4. Take precautions with horizontal installation, the slope must be 5 cm per meter (0.60 inch/feet) towards the boiler. 5. Fix a bracket on a fixed part of building (i.e. wall) if necessary. 6.

  • Page 23: Installation Of A Vent System Configuration With Wall Terminal

    Normal operation of the EcoKing appliance does not result in deposits of combustible soot in venting systems. However, a poorly adjusted or malfunctioning appliance can deposit soot and other debris which can enter the vent system.

  • Page 24: Additional Instructions For Termination Through A Wall With A Wall Terminal

    Part 4 - General venting Additional instructions for termination through a wall with a wall terminal. The concentric wall terminals can be installed through a wall made of combustible material, no extra parts are necessary. The venting system shall terminate in accordance with the requirements of CAN/CGA-B149., Natural Gas Installation Code.
  • Page 25 Part 4 - General venting Figure 4.10 Flue terminal hole cutting 4. Determine the wall thickness and, if necessary, cut the wall terminal to the desired length. Remove all burrs from the cut terminal. NOTE: The length of the flue terminal is correct if outer wall plate, or rosette, is flush with the outside wall.

  • Page 26: Installation Of A Vent System Configuration With Roof Terminal

    Normal operation of the EcoKing appliance does not result in deposits of combustible soot in venting systems. However, a poorly adjusted or malfunctioning appliance can deposit soot and other debris which can enter the vent system.

  • Page 27: Additional Instructions For Termination Through A Roof With A Roof Terminal

    Warning The instructions of the appliance manufacturer with regard to the minimum trap height of condensate drain must be followed. If the height is not enough the flue gases can be blown out under a locked vent condition before the appliance’s blocked vent detection system can function. Additional instructions for termination through a roof with a roof terminal: The vent system must terminate at least 2 feet above the roof line or any wall or vertical structure within 10 feet.
  • Page 28 Figure 4.18 Location 5. Place the weather collar into position. See figure 4.19. 6. Carefully insert the flue terminal through the weather collar from outside the roof. Notice Do not turn cap. See figure 4.19. 7. Assure that the flue terminal is plumb using a level or similar device. See figure 4.19. 8.

  • Page 29: Mandatory Pre-Commissioning Procedure For Plastic Venting

    Part 4 - General venting Warning The concentric vent pipe should extend fully into the appliance flue outlet adapter / air intake adapter. Make sure the concentric vent pipe extends in the appliance on the adapter location as shown in the figure underneath. Ensure that the venting system does not apply a load or strain on the appliance flue outlet adapter.

  • Page 30: Venting Rules And Guidelines

    Combustion air containing chemicals such as chloride, fluoride, bromine or iodine or dust and debris will cause corrosion damage of the heat exchanger voiding your Ecoking warranty. Refer to table 4.1 for a list of corrosive products and contaminants sources to avoid.

  • Page 31: Part 5 - Vent /Air - Intake Termination Clearances

    The quick reference table below is to be read in conjunction with the numbered notes as indicated and the Venting Rules and Guidelines in Section 4. The instructions detailed in this section are a combination of Ecoking specific and National Gas Code restrictions.

  • Page 32: Removing An Existing Boiler From Common Venting System

    Warning Under no circumstances may an existing chimney or chase-way be used to vent or provide combustion intake air to the Ecoking boiler. Failure to follow these instructions will result in fire, property damage, serious injury or death. Warning Do not install the Ecoking boiler into a common venting system with any other appliances. Failure to comply with this warning can cause flue gas spillage and leech carbon monoxide emissions into the surrounding air resulting in serious injury or death.

  • Page 33: Part 5.5 - Further Venting Options (Pvc, Cpvc, Pp)

    Part 5.5 Further Venting Options: PVC/CPVC/Polypro single pipe REQUIREMENTS FOR INSTALLATION OF SINGLE PIPE VENTING ON ECO KING BOILERS IN CANADA Venting PART 1 Installations must be made with ANY vent pipe system certified to ULC-S636. Examples are, M&G Duravent, Cox Geelen and Centrotherm polypropylene and IPEX 636 PVC/CPVC. They are approved vent manufacturers in Canada supplying vent material listed to ULC-S636, but are not exclusive.
  • Page 34 Figure 2 Air intake of a two pipe system after white cap is removed. It is on the right side of boiler Figure 3 Using black o-ring to block air intake of concentric connection. Only use exhaust connection shown here. It is on left side of the boiler Figure 4 After O-rings are installed, connect polypropylene...
  • Page 35 Venting Part 4 If all contaminants listed in Table 2.1 in the installation manual are STRICTLY AVOIDED, combustion room can be used as a source of air intake. This table is shown again below. Note: In new home installs it is mandatory to bring air in from outside the home while the home is being built. This is in done to prevent dust and any other contaminants from entering the boiler housing and affecting operation.
  • Page 36 Venting Part 6: Vent Terminations for All Single Pipe Applications Intake and exhaust pipes should terminate at a rooftop or side wall location. Keep exhaust plumes well away from all building air intakes including those of neighbouring properties. All venting must be installed in accordance with the requirements of the jurisdiction having authority: in Canada, Part 8, Venting Systems of the B149.1-10 Code and any other local building codes are to be followed.
  • Page 37 Sidewall Single Pipe Vent Termination Sidewall direct vent applications shall be vented as follows: • Both the inlet and exhaust terminations should be located on the same side of the building and the exhaust termination should be placed so as to reach 24" minimum above the down-turned intake - to avoid re-circulation •...

  • Page 38: Part 6 - Condensate Drain

    Part 6 - Condensate Drain This appliance produces liquid condensate in the heat exchanger and venting system as a product of combustion. Provisions must be taken to ensure that condensate does not collect in the venting system; therefore, all exhaust piping must slope back to the appliance a minimum of 5 cm per mtr (0.60 inch / feet).

  • Page 39: Cleaning

    Part 6 - Condensate Drain Cleaning It is recommended to clean the condensate drain once a year by rinsing / washing it with tap water: 1.) Shut off power to the appliance. 2.) Disconnect the condensate hose by turning the connection screw. 3.) Dismount the drain from the boiler by a turning movement (to the left).

  • Page 40: Part 7 - Central Heating (Ch) And Domestic Hot Water (Dhw) Circuit

    Part 7 - Central heating (CH) and Domestic Hot Water (DHW) circuit Warning If no diffusion-tight pipes for supply and return (CH circuit) are applied for radiators or floor heating, place a partition between the CH water of the boiler and the water in the system. E.g. use a plate heat exchanger. A plate heat exchanger prevents contamination of the heat exchanger by, among others, magnetite.

  • Page 41: Control Module

    (See figure 7.6 as well) Control module The EcoKing Boiler control module uses temperature sensors to provide both high limit protection and modulating temperature control. The control module also provides low water protection by sensing the water pressure of the CH system. Some codes / jurisdictions or insurance companies may require additional external controls for high limit and / or low water cutoff protection.

  • Page 42: Connect The Supply And Return Piping Of The Ch Circuit

    Connect the tap (DHW) water circuit: FOR C (COMBI) MODELS The supply pipe for cold tap water (Fig. 7.4) is provided with a flow limiter depending on the type of Ecoking boiler (e.g. Ecoking C100: 8l/min. (2.1 gal/min) of 60 °C (140 °F)). Connect the supply and return pipe in accordance with the (local) regulations.

  • Page 43: Connect An External Expansion Tank

    Part 7 - Central heating (CH) and Domestic Hot Water (DHW) circuit Connect an external expansion tank The boiler comes standard with a 11 liter (2,9 US Gallon) internal expansion tank. In case the total size of the installation configuration requires this, an extra expansion tank needs to be selected with regard to the total installation size and static pressure.

  • Page 44: Installation Examples

    Mains water s uppl y for filling loop (H xxx) types Tank supply hot (Hxxx types) CH and Tank return (Hxxx types) A B C D 1) Boiler layout : Ecoking Heating only appliance Legend Combi Combi appliance Internal Expansion Tank...
  • Page 45 Part 7 - Central heating (CH) and Domestic Hot Water (DHW) circuit Legend For boiler details refer to layout no. 1. Tank Heating Only appliance Room Thermostat Tank sensor Temperature Pressure Relief Valve Heating circuit 3) System layout: Heating only appliance with connected tank and heating circuit Legend For boiler details refer to layout no.
  • Page 46 Part 7 - Central heating (CH) and Domestic Hot Water (DHW) circuit Legend Tank For boiler details refer to layout no. 1. Heating Only appliance Tank sensor Temperature Pressure Relief Valve Low Loss Header Pump and LLH External control only required if Room Thermostat pressure loss in served...
  • Page 47 Part 7 - Central heating (CH) and Domestic Hot Water (DHW) circuit Legend For boiler details refer to layout no. 2. Combi Combi appliance Pressure Relief Valve Domestic Hot Water Low Loss Header External control Room Thermostat Pump and LLH only required if pressure loss in served system is too high.

  • Page 48: Part 8 - Installing Gas Piping

    Part 8 - Installing gas piping Installation Refer to CAN/CGA B149.1 installation codes, and local codes for gas piping requirements and sizing. Pipe size running to the appliance depends on: Length of pipe; Number of fittings; Maximum input requirement of all gas appliances in the residence. Figure 8.1 Gas line connection location Connecting the gas line The gas connection tube diameter is not indicative of the gas pipe that should be connected to it.

  • Page 49: Part 9 - Electrical Connections

    Warning In case the line cord gets damaged it must be fully replaced with an official EcoKing line cord (See section 13 for part numbers). The line cord and wall socket must be at any time reachable with regard to service purposes.
  • Page 50 Part 9 - Electrical connections Figure 9.3 Print circuit board main connections To Pump To Fan Ground CONNECTORS Pow er for Green / Yellow supply ground cables cable (Supply, Fan, Pump) Pump + Fan connector Slide WHITE cable tree CONNECTOR on / of BURNER CONT.

  • Page 51: Part 10 - Lighting The Appliance / First Start-Up

    Part 10 - Lighting the appliance / First start-up Warning Use of electrical connections to the boiler other than described might result in unpredictable behaviour, or malfunction of the boiler. DO NOT WIRE ANY VOLTAGE, ONLY DRY CONTACTS TO CONTROL BOARD.
  • Page 52 Part 10 - Lighting the appliance / First start-up FOR YOUR SAFETY, READ BEFORE OPERATING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance does not have a pilot. It is If you cannot reach your gas supplier, call equipped with an ignition device which the fire department.

  • Page 53: Fill And Refill Of The Ch Section

    The display shows the system pressure. The EcoKing boiler is provided with a special filling system. By opening the filling valve the CH- system will be filled.

  • Page 54: General Use Of The Control Panel

    Part 10 - Lighting the appliance / First start-up Before first domestic use of the boiler, software parameters need to be set and the appliance needs to be calibrated via the control panel and display. General use of the control panel P1: esc: escape / cancel P2: ok (confirm) | reset P3: CH temperature down...
  • Page 55 Part 10 - Lighting the appliance / First start-up Parameter Description Unit Default Min. Max. Note Imperial (SI) Maximum CH °C (°F) 80 (176) 20 (68) 85 (185) temperature setting Maximum CH power Maximum time for Minutes modulation to full power Pump overrun time Minutes C (continues)

  • Page 56: Weather Dependent Control

    Part 10 - Lighting the appliance / First start-up Weather dependent control In weather dependent control operation with an outside sensor, the boiler CH set point depends on the outside temperature and a pre-set weather compensation setting. In case an outside sensor and an on/off thermostat have been installed, the next steps need to be performed to pre-set weather dependent control: Select 1 for parameter no.

  • Page 57: Set The Comfort Level

    Part 10 - Lighting the appliance / First start-up Set the comfort level Set the maximum central heating temperature 1. Press [P3] or [P4]. The maximum CH temperature is shown. The ‘radiator’ symbol is flashing. 2. To change the CH temperature: a.

  • Page 58: Vent

    Part 10 - Lighting the appliance / First start-up Vent Warning Be careful when venting. The water can be hot. Use a cloth to collect spilled water. Make sure that the system is properly vented. This will avoid noise and comfort problems. The CH pump has an automatic vent and does not need venting.

  • Page 59: Diagnosis Menu

    Part 10 - Lighting the appliance / First start-up Diagnosis menu Read out measured values 1. Simultaneously press [P3] and [P4] for 5 seconds. The first value is displayed. 2. Scroll with [P3] and [P4] through the values (left on the display). The values are shown right in the display.
  • Page 60 Part 10 - Lighting the appliance / First start-up Left Mean value of Extra information (on the right) Software version Heat exchanger mode: 0 rest 2 start fan 3 pre ventilation 4 ignition 5 CH operation 6 DHW operation 7 heat up tap exchanger 8 anti-swing waiting time Modulation level flame + % Flame + %...

  • Page 61: Calibration

    Before the first start up of the appliance (before calibration) check the gas type setting is set correctly (parameter 15, page 49). The EcoKing boiler is gas-adaptive, which means that the combination ionisation electrode and the burner pneumatically and electronically control the CO2 percentage. During calibration, the start current and the correct settings for the CO2 percentage are determined.

  • Page 62: Automatic Calibration

    The automatic calibration function enables you to calibrate the boiler without analyser to make sure that the EcoKing burns safely without producing CO. This function performs the same procedure as the manual calibration, but here the flame impedance values go to pre-set values from the data key.

  • Page 63: Part 11 - Installation Check List

    Part 11 - Installation check list Installation Locate the appliance in accordance with Section 3 of this manual. Install the Vent/Air-Intake piping in accordance with Sections 4 and 5 of this manual. Ensure all joints are secured properly. The concentric Vent and Air-Intake piping must terminate outdoors. Perform the ‘Mandatory Pre-commissioning Procedure for Plastic Venting’...

  • Page 64: Part 12 - Annual Maintenance And Inspection

    Part 12 - Annual maintenance and inspection Warning This appliance must be inspected: At the beginning of every heating season, and at least every 12 months, by a Qualified Technician. When the appliance generates a series of similar faults. Annual Inspection Checklist Ask the user if there are any problems with the CH appliance or any other remarks.

  • Page 65: Crystalline Silica

    Part 12 - Annual maintenance and inspection Warning Crystalline Silica - Read carefully the warnings and handling instructions pertaining to Refractory Ceramic Fibers before commencing any service work in the combustion chamber. Take all necessary precautions and use recommended personal protective equipment as required. Make sure any gas is cleared from the combustion chamber.

  • Page 66: Refractory Ceramic Fibers (Rfc)

    Part 12 - Annual maintenance and inspection Check whether relief valve and air vents are not weeping. Low water cut off is flushed (if applicable). Examine all venting for evidence of leaks. Ensure vent screens are cleaned and clear of debris.
  • Page 67 Part 12 - Annual maintenance and inspection For more information on Refractory Ceramic Fibers, the risks, recommended handling procedures and acceptable disposal practices contact the organization below: Canada (CCOHS): Telephone directory listing under Government Blue Pages Canada—Health and Safety—Canadian Centre for Occupational Health and Safety;...

  • Page 68: Part 13 - Parts List

    Heat Exchanger DHW Set Bolts Pump & PHE 202-0664 106-0712 Heat Exchanger DHW PHE C100 12 Plates 202-1005 106-1045 Heat Exchanger DHW PHE C140/C200 18 Plates 202-1007 106-1046 (Cxxx models) Heat Exchanger DHW Solo Adaptor Plate 202-1201 106-1281 (Hxxx models)
  • Page 69 Pressure relief valve (Watts type 202-1246 106-1240 374A) Seal gasvalve connections O RING 3/4" UNITEC 300 202-0135 106-1101 Seal expansion vessel O RING 1/2" UNITEC300 202-0136 106-1102 connection Seal hydro connection O RING 3/4" NBR 202-0137 106-1103 adapters Table 13.1. Parts list EcoKing...

  • Page 70: Part 14 - Troubleshooting

    Part 14 - Troubleshooting Warning Observe the following precautions when servicing the appliance. Failure to comply with these may result in fire, property damage, serious injury or death. Servicing the Appliance Disconnect or shut off all energy sources to the appliance: 120VAC power, water and gas. Identify and mark wires before disconnecting or removing them.

  • Page 71: Fault Codes

    Part 14 - Troubleshooting Fault codes Locking faults that block system operation appear in the display with a fault code. A warning symbol is placed above each fault code. Besides, the led ‘SERVICE’ lights up. Reset fault In a number of occasions in which a fault has occurred, the user can reset the fault and restart the system. In those cases, the text ‘reset’...

  • Page 72: Fault Code List

    Part 14 - Troubleshooting Code Description Cause / Solution Lock-out no ignition 9, 10, 11, 26, 27, 28, 29, 30, 32, 44, 47, 76,77 Lock-out ionization problem - parasitic flame 29, 31, 32 Lock-out high limit temperature protection 5, 6, 8, 16, 17, 18, 19, 33, 34, 35, 39, 42, 43, 72, 73 Lock-out Primary temperature too high (>95 ºC) 5, 6, 8, 16, 17, 18, 19, 35, 39, 40, 42, 43, 72, 73 40min Lock - Insufficient temp.

  • Page 73: Possible Causes And Solutions

    Part 14 - Troubleshooting Code Possible cause Solution Supply and return switched at installation Check CH connections CH set point adjusted too low Check parameter 0 Max CH modulation set too low Check parameter 1 Max modulation time too long Check parameter 2 Pump speed too low Check speed in diagnose menu (24) and check parameter 4 and 5...

  • Page 74: Part 15 Start Up Checklist

    Part 15 Start Up Checklist Light Up Activities Date Completed 1)Verify piping Verify all piping and gas connections are completed secure and tight 2) Pressurize Use manual fill valve (white knob at bottom completed boiler and system left of boiler) by turning it open (clockwise turn) or if relying on PRV to pressurize system, open it until boiler pressure reaches 1.5 bar...

  • Page 75: Part 16 Maintenance Checklist

    PART 16 Maintenance Checklist WARNING Allowing the heater to operate with a dirty combustion chamber will hurt operation. Failure to clean the heat exchanger as needed by the installation location could result in heater failure, property damage, personal injury, or death. Such product failures ARE NOT covered under warranty Periodic maintenance should be performed once a year by a qualified service technician to assure that all the equipment is operating safely and efficiently.
  • Page 76 Supplier: Eco King Heating Products Inc. Unit 105, 2455-192nd Street Surrey, BC Canada V3S 3X1 Manufacturer: Itho Daalderop Group bv Lingewei 2, 4004 LL Tiel The Netherlands 202-1263.6 | ID 2014-08-3...
