Sony HCD-RV333D Service Manual

SERVICE MANUAL
Ver. 1.3 2011.01
• HCD-RV222D/RV222DL/RV333D/RV333DL/
RV555D are the tuner, deck, DVD and amplifi er
section in MHC-RV222D/RV222DL/RV333D/
RV333DL/RV555D.
Amplifi er section
The following measured at AC 230 V,
50/60 Hz (Russian model)
The following measured at AC 240 V,
50/60 Hz (South African model)
The following measured at AC 127, 240 V,
50/60 Hz (Saudi Arabian model)
The following measured at AC 120, 220,
240 V, 50/60 Hz (Other models)
MHC-RV555D (models with Karaoke
function only)
Power output (rated):
85 W + 85 W (6 Ω at 1 kHz, 1% THD,
at LINK MODE)
RMS output power (reference)
Front speaker:
130 W + 130 W (per channel at 8 Ω,
1 kHz, 10% THD)
Satellite speaker:
50 W + 50 W (per channel at 24 Ω,
1 kHz, 10% THD)
9-889-516-04
Sony Corporation
2011A04-1
©
2011.01 Published by Sony Techno Create Corporation
HCD-RV222D/RV222DL/RV333D/

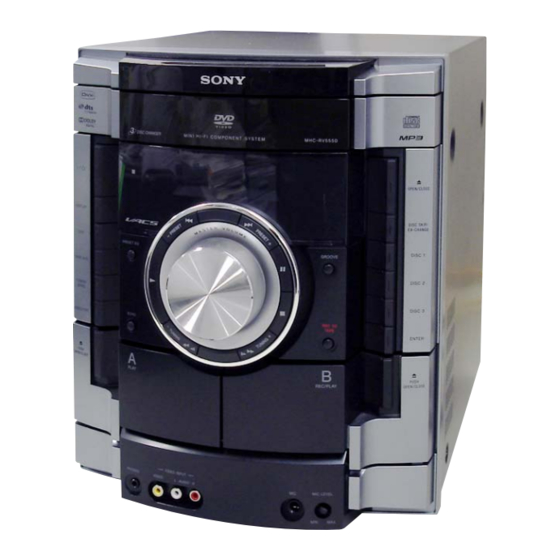

Photo: HCD-RV555D
Model Name Using Similar Mechanism
DVD
DVD Mechanism Type
Section
Optical Pick-up Name
Model Name Using Similar Mechanism
Tape Deck
Section
Tape Transport Mechanism Type
SPECIFICATIONS
MHC-RV555D (models without
Karaoke function only)
Power output (rated):
105 W + 105 W (6 Ω at 1 kHz, 1%
THD, at LINK MODE)
RMS output power (reference)
Front speaker:
150 W + 150 W (per channel at 8 Ω,
1 kHz, 10% THD)
Satellite speaker:
60 W + 60 W (per channel at 24 Ω,
1 kHz, 10% THD)
MHC-RV333D/RV333DL
(Russian and African models only)
Power output (rated):
70 W + 70 W (6 Ω at 1 kHz, 1%
THD)
RMS output power (reference)
Front speaker:
120 W + 120 W (per channel at 6 Ω,
1 kHz, 10% THD)
Subwoofer:
120 W (at 6 Ω, 80 Hz, 10% THD)
RV333DL/RV555D
HCD-RV222D/RV333D/RV555D
Russian Model
HCD-RV222D/RV222DL/RV333D/RV333DL
New
CDM74HFV-DVBU101
KHM-313CAB
New
CWP42FF603
MHC-RV333D (Saudi Arabian and
South African models only)
Power output (rated):
55 W + 55 W (6 Ω at 1 kHz, 1%
THD)
RMS output power (reference)
Front speaker:
100 W + 100 W (per channel at 6 Ω,
1 kHz, 10% THD)
Subwoofer:
100 W (at 6 Ω, 80 Hz, 10% THD)
MHC-RV222D/RV222DL
Power output (rated):
65 W + 65 W (6 Ω at 1 kHz, 1%
THD)
RMS output power (reference):
120 W+ 120 W (per channel at 6 Ω,
1 kHz, 10% THD)
– Continued on next page –
DVD DECK RECEIVER
E Model
