Summary of Contents for Kabola Combi

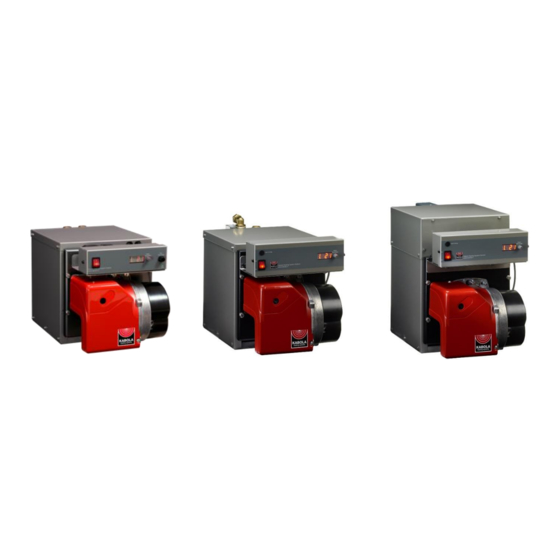

- Page 1 User Guide Compact-7 series Boiler-CH Calorifier Combi...
- Page 2 Warning: Chance of (life-threatening) injuries You can contact Kabola Heating Systems should you have any remarks, wishes or in the case of any shortcomings. Any suggestion for the improvement of the manual are also always welcome. We wish you every pleasure with your purchase.
-
Page 3: Table Of Contents
Contents Introductory remarks Contents 1 Introduction 1.1 General 1.2 Area of application 1.3 Description of the boilers 1.4 Technical specifications 1.5 Guarantee provisions 2 Safety 2.1 General safety 2.2 Safety instructions 3 Transport and storage 3.1 Transport 3.2 Storage 4 Installation and bringing into use 4.1 Installation 4.1.1 Installing the boiler 4.1.2 Connection to the central heating system... -
Page 4: Introduction
Introduction 1.1 General This user manual is intended for both the installer and the end user of the Kabola COMPACT 7 heating boiler. There is a wide range of COMPACT 7 heating boilers with a broad range of applications. With this purchase you obtain a product of the highest quality due to the practical application of the latest European standards and directives and modern technologies. -
Page 5: Safety
2.1 General safety Warning: Kabola Heating Systems designs and builds its products according to the current best available techniques. However, it is possible that dangers may occur that can result in injuries or damage to the boilers if the safety instructions are not followed. -
Page 6: Transport And Storage
Transport and storage 3.1 Transport Take the following measures before the boiler is transported: Drain off the boiler water. Disconnect the fuel system. Disassemble the burner if required (see § 4.1.6, burner assembly). During the transport of the boiler the following points must be observed: ... -
Page 7: Installation And Bringing Into Use
Installation and bringing into use In this section you can find instruction and tips for the correct placing and connection of the boiler and the associated equipment. Warning: Do not place any flammable and/or gaseous substances that may cause danger of explosion or fire in the space where the boiler is or is to be installed. - Page 8 8 Assemble the separately supplied filler tap and drain combination at point 4 (see fig 3). Note: A boiler thermostat must always be fitted (available from Kabola Heating Systems) Figure 2 Compact 7 combi boiler (figure 3) The connection of piping to the Compact 7 combi boiler takes place as follows: Assemble the central heating supply pipe at point 1;...
-
Page 9: Flue Gas Extraction
Because in most cases the flue gas temperature is higher than 180 °C, it is the desirable to insulate the outlet with heat-resistant material in places where contact with body parts is possible. These are available from Kabola Heating Systems B.V. Ensure the correct length/diameter proportions. We advise assembling a flue gas outlet with a diameter of 50 mm and a maximum length of 3 metres. - Page 10 With a vertical outlet always use a drain! Figure 5 Tip: Kabola can manufacture a deck hole at an angle so the flue is straight as custom work. FLUE GAS MATERIALS Kabola can supply all flue gas materials to simplify installation such as: ...
-
Page 11: Electrical Connection
4.1.4 Electrical connection Warning: Make sure there is no voltage on the system when you start connecting. Only use multi-core cables with flexible core (minimum 0.75 mm2). The available voltage must of the same quality as normal shoreside power. Tip: If you use a transformer we advise using a 900W sine wave transformer. - Page 12 Compact 7 boiler and combi boiler Connecting the room thermostat and the hot water on/off function Use a 4-core 0.75 mm² insulated cable for the connection of the room thermostat (with the hot water on/off function). Connect the room thermostat as follows: ...
-
Page 13: Filling The Central Heating System For The Compact 7 Central Heating Boiler
If you do not live permanently on board we recommend to fill the heating system with coolant. The cooling liquid must be suitable for heating systems (pH value 8.5). For more information please contact your dealer or Kabola, Netherlands See manual from the circulation pump. Attention: When locking pump couplings are supplied with the boiler, the adjusting grooves must point towards the pump. -
Page 14: Connecting The Oil Filter
4.1.6 Connecting the oil filter Figure 14 Proceed as follows to connect the oil filter (see fig 14): Fit the oil filter higher than the oil pump; Connect the oil pipe directly from the fuel tank to the oil filter (no branch point for other oil users);... -
Page 15: Bringing Into Use
The boiler must have been brought into use by an installer certified by the manufacturer for the guarantee to be applicable. You can contact Kabola Heating Systems to make an appointment for this. When everything has been installed: ... -
Page 16: Operation
5 Operation Compact 7 CH Operating panel Compact 7 CH front Figure 15-16 High limit thermostat On/off switch Display boiler thermostat Explanation of the operating panel Set the boiler temperature to 80 degrees Celsius (press boiler thermostat button in and turn). Key to the boiler display Numbers Explanation... - Page 17 Compact 7 Calorifier Operating panel Compact 7 Calorifier (front) Figure 17 10 Amp fusing High limit thermostat (is found on the back) On/off switch Display boiler thermostat Explanation of the operating panel Set the boiler temperature to 80 degrees Celsius (press boiler thermostat button in and turn). Key to the boiler display Numbers Explanation...
- Page 18 Compact 7 combi Operating panel Compact 7 combi (front) Figure 18 10 Amp fusing High limit thermostat (is found on the back) On/off switch Display boiler thermostat Explanation of the operating panel Set the boiler temperature to 80 degrees Celsius (press boiler thermostat button in and turn). Key to the combi boiler display Numbers Explanation...
-
Page 19: Cleaning And Maintenance
Replacement parts must be ordered from Kabola Heating Systems. Only original replacement parts may be used for the guarantee to be applicable. Mention the type and serial number when ordering. Kabola Heating Systems can then supply the correct parts. Annex E includes a summary of the parts. -
Page 20: Annex A Technical Specifications
Annex A Technical specifications Manual COMPACT 7 version 2018... -
Page 21: Annex B Electrical Diagram 230 V Compact 7 Central Heating Boiler
Annex B Electrical diagram 230 V Compact 7 central heating boiler... -
Page 22: Annex C Electrical Diagram 230 V Compact 7 Boiler And Combi Boiler
Annex C Electrical diagram 230 V Compact 7 Calorifier and Combi Manual COMPACT 7 version 2018... -
Page 23: Annex D Troubleshooting
Boiler thermostat defect Check boiler thermostat Oil supply affected Vent the oil filter. Change soiled oil filter. Fill the oil tank For any continuing problems contact Kabola Heating Systems Tel.: +31 (0) 347 320 030 Email: info@kabola.nl Manual COMPACT 7 version 2018... -
Page 24: Annex E Boiler Parts And Burner Parts
Annex E Boiler parts and burner parts To order parts we refer you to our website www.kabola.nl. You can download the part lists under the downloads header. Manual COMPACT 7 version 2018... -
Page 26: Annex F Ec Declaration
Annex F EC declaration EC declaration of conformity Kabola Heating Systems BV Placotiweg 1 4131 NL Vianen (Utr.) The Netherlands declare entirely under our own responsibility that product: Boiler burner Kabola COMPACT 230 V to which this declaration relates, conforms with the following standards:... -
Page 27: Annex G Guarantee
Annex G Warranty Conditions...
