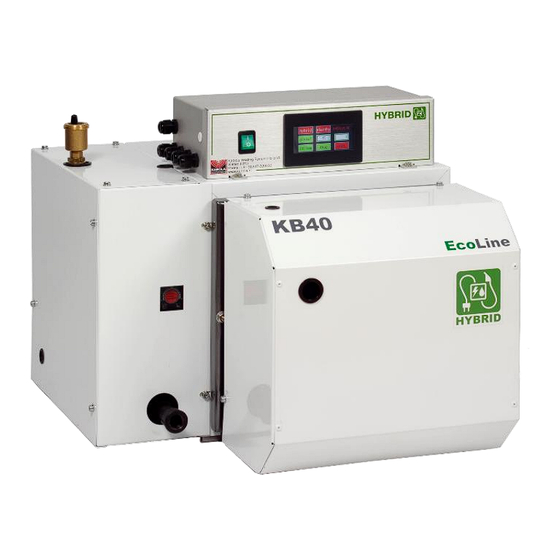

- Page 1 U s e r m a n u a l K B - E C O L I N E s e r i e s E n g l i s h Calorifier Combi Ecoline series...
-
Page 2: Preface
The Netherlands Phone +31 (0)347-320030 Web: www.kabola.nl E-mail info@kabola.nl Vianen 2022 © 2022 Kabola Heating Systems Copying of (parts of) this manual, is only allowed with written consent of Kabola Heating Systems. Instruction manual Kabola KB- Hybrid -Series version 1, 2022... -
Page 3: Table Of Contents
6.2 Cleaning and maintenance 7 End of life of the boiler Appendix A Technical specifications Appendix B Troubleshooting Appendix C Boiler parts Appendix D EG-declaration Appendix E CE declaration Appendix F Guarantee conditions Instruction manual Kabola KB- Hybrid -Series version 1, 2022... -
Page 4: Introduction
1.2 Range of application The Kabola KB-Series are designed to generate heat for the heating of water and for a central heating system. The boilers can also be used for the generation of domestic hot water generated by a compact brazed heat exchanger. -
Page 5: Safety
In this chapter we emphasis the safety-related points for operating the boiler. 2.1 General safety Warning: Although Kabola Heating Systems designs and produces its products according to the current safety standards, it is possible that dangers may present themselves, which could lead to injuries or damage to the boiler, if the safety instructions in this manual are not complied with. -
Page 6: Transport And Storage
➢ Store the boiler and accompanying parts in a dry place; ➢ Store the boiler standing up; ➢ Store the boiler on a firm horizontal base. Figure 1 Instruction manual Kabola KB- Hybrid -Series version 1, 2022... -
Page 7: Installing And Preparing For First Use
As a rule of thumb for the ventilation openings, take 2,5 times the diameter of the flue gas outlet. No.1 Dashboard and burner plug. 230 Vac 360 Watt No.2 Feeding Electric element 3000Watt 230 Vac 16 Ah. Landline or generator Instruction manual Kabola KB- Hybrid -Series version 1, 2022... -
Page 8: Connection To The Central Heating System And Domestic Hot Water
It is possible to use the boiler when the domestic water side is not connected KB-20 / 40 / 45 / 50 / 75 Instruction manual Kabola KB- Hybrid -Series version 1, 2022... - Page 9 5. The numbers A and B you will find on the housing of the three-way valve Note: There must always be a thermostat mounted on the calorifier to communicate with the KB series (available at your Kabola supplier with number: 9-i025) Instruction manual Kabola KB- Hybrid -Series version 1, 2022...
-
Page 10: Flue Gas Outlet
Condensation will short the life time of the boiler Instruction manual Kabola KB- Hybrid -Series version 1, 2022... - Page 11 Always install a drain with tap directly on the boiler See Figure 4.a Figure 4.a Your Kabola supplier can provide you with all components which may be required for installation such ➢ Cowls; ➢ Flexible piping; ➢ Single and double walled chimney pipes;...
-
Page 12: Electrical Connection
Remove the bridge from T1 and T2 and connect the 2-core cable ( 2x0.75mm ) of the room thermostat to T1 and T2, as indicated on the sticker in the connector A. Figure 6.2 Figure 5 Instruction manual Kabola KB- Hybrid -Series version 1, 2022... - Page 13 0,75 mm2. ➢ Remove the cover of connection (figure 5) which you can find at the backside of the Kabola dashboard. ➢ Connect the 4 wires of the room thermostat at T1 and T2 and S3 and B4 in connection the backside of the dashboard as shown on the sticker inside the connector.
-
Page 14: Filling The Central Heating System
User manual para SC/U (self-control) Press the green button 9 times for settings 3 times stand on ^p-c 3 times stand on ^p-v 3 times fixed speed 1, 2, 3, (RPM) Instruction manual Kabola KB- Hybrid -Series version 1, 2022... -
Page 15: Mounting The Oil Filter And Oil Burner
5. Open the valve on the oil filter; 6. Disconnect the power from the motor to the oil burner (only Kabola engineer) 7. Use the startup cable, and connect with this cable the power to the motor from the oil pump 8. -
Page 16: Explanation Of The Dashboard
Phot Rest position (boiler is on stand-by) Circulation pump stopped Room thermostat demands heat. Circulation pump operating above 40°C Circulation pump further running time. Circulation pump operates for ± 3 minutes Instruction manual Kabola KB- Hybrid -Series version 1, 2022... - Page 17 Boiler is heating to keep domestic water on temperature. Hot water stand-by The number (78.6) in the middle of the display shows the current boiler water temperature 78.6 Switching between Hybrid, Diesel, Power always through Stop! Instruction manual Kabola KB- Hybrid -Series version 1, 2022...
-
Page 18: Electric Element Maximum Power Use
60°C instead of 50°C. The fuel consumption will rise of course. Now you see this screen. Push “main”. Electric element is set and you are back at the base screen. Instruction manual Kabola KB- Hybrid -Series version 1, 2022... -
Page 19: Operating The Tap Water On/Off Button And Function
First push the button “stop”. Now you can push the functions you want. Push “standby” (colour is red now) Push the mode you want. This mode will change in colour from green to red. Instruction manual Kabola KB- Hybrid -Series version 1, 2022... -
Page 20: Cleaning And Maintenance
Spare parts must be ordered through your Kabola supplier. For warranty purposes only original spare parts must be used. When ordering spare parts, state the type of boiler and its serial number. Your Kabola supplier will then be able to supply the correct parts. In Appendix B, the main spare parts are listed. -
Page 21: Appendix A Technical Specifications
Appendix A: Technical specifications Instruction manual Kabola KB- Hybrid -Series version 1, 2022... -
Page 22: Appendix B Troubleshooting
Pump not connected to electricity Connect pump supply Rotor of pump is stuck Turn pump with your hand (see pump manual) When problems with the boiler will not disappear, call an engineer from Kabola. Instruction manual Kabola KB- Hybrid -Series version 1, 2022... - Page 23 Appendix C Boiler parts Instruction manual Kabola KB- Hybrid -Series version 1, 2022...
- Page 24 Instruction manual Kabola KB- Hybrid -Series version 1, 2022...
- Page 25 Spareparts list model 2016- 2018 Instruction manual Kabola KB- Hybrid -Series version 1, 2022...
-
Page 26: Appendix D Eg-Declaration
303-1, 303-2, 304, 50081-1, 50082-1. EN 61010 following the provisions of the following EC-directives 73/23/EEG, 89/336/EEG, 92/42/EEG, amended by 93/68/EEG. Nederland, Vianen, 18th February 2015 Arie van Soolingen Managing Director Instruction manual Kabola KB- Hybrid -Series version 1, 2022... -
Page 27: Appendix E Ce Declaration
Appendix E CE declaration Instruction manual Kabola KB- Hybrid -Series version 1, 2022... - Page 28 Warranty Conditions Instruction manual Kabola KB- Hybrid -Series version 1, 2022...
-
Page 29: Appendix F Guarantee Conditions
Appendix F Guarantee conditions Instruction manual Kabola KB- Hybrid -Series version 1, 2022...
