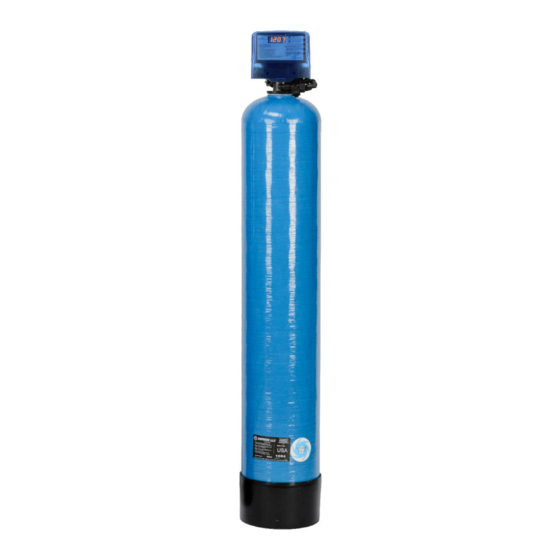

Summary of Contents for WaterSoft CENTURI
- Page 1 Installation / Operation Manual...
-
Page 2: Table Of Contents
General Specifications............Page 3 Installation Requirements............Page 4 Utilizing Bluetooth..............Page 8 Programming the Control Valve..........Page 11 Master Programming Mode............. Page 14 Control Valve Powerhead Assy. ISO II & ISO III....Page 15 Valve Body Assembly ISO II............ Page 16 Bypass Assembly ISO II............ -
Page 3: General Specifications
Specifications General CF10 CF13 Specifications CF10-3 CF13-3 Filter Media Smart-Blend Smart-Blend Filter Media Capacity (cu. ft.) Mineral Tank (Vortech) 10 x 54 13 x 54 Service Flow Rate - Continuous (gpm) Service Flow Rate - Intermittent (gpm) Backwash Flow Rate (gpm) Gallons Used / Backwash Space Required (D x W x H) in inches 10 x 10 x 62... -
Page 4: Installation Requirements
Installation Installation Requirements A level floor position ahead of piping into water heater Unit must be installed at least 10 feet ahead of the inlet to a water heater to prevent damage due to back-up hot water. DO NOT install the unit in an area of direct sunlight or where freezing temperatures may occur! Locate the unit near an unswitched, 120 volt / 60 Hz grounded electrical outlet. - Page 5 Installation Installation Procedure - Water Supply Connection and Bypass Valve - To allow for filter servicing, swimming pool filling or lawn sprinkling, a manual Bypass Valve has been installed at the factory. The Bypass allows raw water to be manually routed around the filter. Caution: Raised arrows located on the sides of control valve body and bypass valve indicate proper direction of water flow.
-
Page 6: Electrical Connection
Installation - Drain Line Connection - 1. The drain line flow control assembly is pre-assembled for your convenience. Should you choose to hard plumb the drain line, please remove the barb fitting. The flow control housing can be removed by removing the clip and pulling straight out on housing. -
Page 7: Annual Maintenance
Installation - System Start Up Procedure - IMPORTANT NOTE: Tank should be filled with water and media must have been soaking for at least 1 hour before initial pressurization 1. After all plumbing and drain line connections have been made, turn main water supply back on and check for leaks. 2. -
Page 8: Utilizing Bluetooth
Utilizing Bluetooth Control For simplified set up and control, please install the Legacy View on a compatible Bluetooth 4.0+ enabled smart phone or tablet. 1. Download and install the Legacy View app from the Google Play Store, Apple App Store 2. - Page 9 Utilizing Bluetooth Control 1. Change Time of day (Press “set” to set time automatically based on device time) 1. Set Backwash Frequency This sets the amount of days between backwash cycles. 1. Set Regeneration Time Example: For 2am, just type 2 and press OK. Advanced Settings NOTE: Consult your dealer before making any changes.
- Page 10 Utilizing Bluetooth Control Status and History From the Status and History, all items in ORANGE can be reset. Touch any table to explode a detailed list of the last 60 days. Start a regeneration or backwash cycle Option 1: Click the “Regenerate Unit Now.” If you would like to force the unit into the next cycle step click “Go to Next Regeneration Step”.
-
Page 11: Programming The Control Valve
Programming the Control Valve Main Menu 12:00 1. To enter Main Menu, press the Menu/Enter button. (Time of Day will flash) 2. To set the Time of Day, press the Set/Change button. (First digit will flash) Example (12:00) To change digit value, press the Set/Change button. To accept the digit value, press the Menu/Enter button. -
Page 12: Normal Operation
Programming the Control Valve Normal Operation 1. Home Display a. Alternates between the display of Time of Day and Number of Days until the Next Backwash. (Metered Softeners will alternate between time of days and gallons remaining until next regeneration) - Days Remaining until the Next Backwash will count down from the entered value until it reaches 1 day remaining. - Page 13 Programming the Control Valve Regeneration Cycle Centuri Default Cycle Step Times Minutes Step 1 Air Release (non-adjustable) Step 2 Backwash Step 3 Rest Step 4 Air Replenish Step 5 Rapid Rinse Note: Depending upon system pressure and other factors, it is possible to observe flow to drain in the rest cycle. -When the valve is between positions, the display will flash the number of the step it is moving towards.
-
Page 14: Master Programming Mode
Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. Note: All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT necessary to enter Master Programming Mode. 1. -
Page 15: Control Valve Powerhead Assy. Iso Ii & Iso
Control Valve Powerhead Assembly LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS Description Part Number Centuri Powerhead Assy. 20944C100 Centuri Circuit Board Assy. 20944C099 Encoder 20001X124 Front Plate 20001X004 Encoder Wheel 20001X007 Main Gear 21001X120 Power Supply 20001X125 Back Plate 20001X005 Lower Front Base For Cover 20111X002 Motor 20016X006... -
Page 16: Valve Body Assembly Iso
Centuri Valve Body Assembly Description Part No. Piston Assembly 20009X231 10-24 X 13/16 Hex Head 20001X226 Seal and Spacer Kit 20561X253 End Spacer DLFC 5.0 Button 20251X272 DLFC 7.0 Button 20251X273 Flow Control Assembly 5.0 20017X262 Flow Control Assembly 7.0 20017X264 Drain Line Flow Control Housing 20017X100... -
Page 17: Bypass Assembly Iso
Bypass Assembly Ref # Description Part # Plastic Bypass 20561X292 Valve Assembly Bypass Valve 3/4” 20561X270 Stainless Steel Bypass Valve 1” 20561X283 Stainless Steel... -
Page 18: Valve Body Assembly Iso
Valve Body Drive Assy. - Page 19 Valve Body Drive Assy. Description Part No. Piston Assembly 20009X231 10-24 X 13/16 Hex Head 20001X226 Seal and Spacer Kit 20561X253 Bottom Spacer DLFC 5.0 Button 20251X272 DLFC 7.0 Button 20251X273 Flow Control Assembly 5.0 20017X262 Flow Control Assembly 7.0 20017X264 Drain Line Flow Control Housing 20017X100...
-
Page 20: Bypass Assembly Iso
Bypass Assembly Description Part No. D15 Bypass 20017X283 1” Female Straight Slip Set 20017X288 (optional) 1” NPT Elbow Set 20017X284 1” NPT Straight Set 20017X289 (optional) Elbow, Vertical Adapter 20017X295 (optional) Blank Elbow, Vertical Adapter 20017X294 (optional) 1/4” NPT Tapped... -
Page 21: Service Instructions
Service Instructions / Instructional Videos Available at www.watersoftinc.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to conditioner. -If the conditioner installation has a “three valve” bypass system, first open the valve in the bypass line, then close the valves at the conditioner inlet and outlet. - Page 22 Service Instructions / Instructional Videos Available at www.watersoftinc.com To Service Injector , Screen, and Air Intake 1. Follow steps A1-A2. 2. Unscrew injector cover screws and remove injector cover. 3. Remove injector screen and clean or replace. 4. Remove white injector and clean or replace. 5.
-
Page 23: Troubleshooting
Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Power supply plugged into Connect to constant power source intermittentent or dead power source 1. Fails to Regenerate Improper control valve Reset program settings programming Automatically Defective power supply Replace power supply Defective Drive motor Replace motor 2. -
Page 24: Error Codes
Error Codes Control Valve Error Code Diagnosis Under normal operating conditions, when your control valve is in the “in service” position, the display should alternate between the current time of day and the number of days remaining (for filters and time clock softeners) or gallons remaining (for metered softeners) until the next regeneration. -
Page 25: Warranty Information
Warranty... - Page 28 710 Orange Street, Ashland, OH 44805 PH 419.289.1500 FAX 419.289.1515 www.watersoftinc.com 3/2018...
