OILGEAR TYPE "PVM" PUMPS -
-011/-014/-022/-025/-034/-046/
-064/-065/-075/-076/-098/-130
PURPOSE OF INSTRUCTIONS
These instructions will simplify the installation,
operation, maintenance and troubleshooting of
Oilgear type "PVM" pumps.
REFERENCE MATERIAL
Fluid Recommendations .....................................................................................Bulletin 90000
Contamination Evaluation Guide.........................................................................Bulletin 90004
Filtration Recommendations ...............................................................................Bulletin 90007
Piping Information ...............................................................................................Bulletin 90011
Installation of Vertically Mounted Axial Piston Units ...........................................Bulletin 90014
PVM Open Loop Pumps Sales Brochure........................................................ Bulletin 47070-B
Revised November, 2004
Bulletin 947070-B
SERVICE INSTRUCTIONS

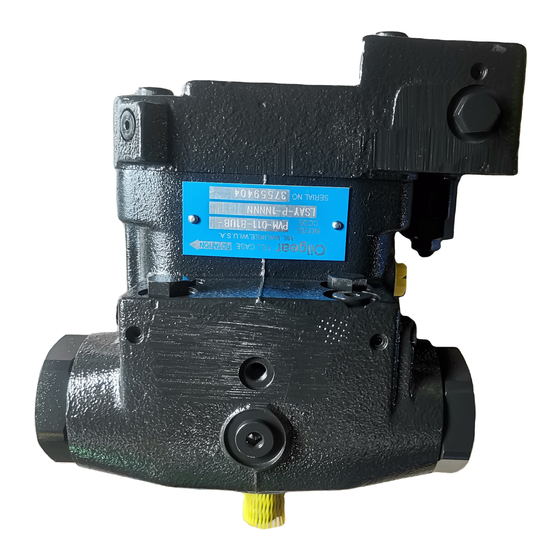

Figure 1. Typical Oilgear "PVM" Open Loop Pump
THE OILGEAR COMPANY
Milwaukee, Wisconsin 53219
THE OILGEAR COMPANY
Become familiar with the construction, principle of
operation and characteristics of your pump to help
you attain satisfactory performance, reduce shut-
down and increase the pump's service life. Some
pumps have been modified from those described in
this bulletin and other changes may be made
without notice.
2300 South 51st Street
Bulletin 947070-B
OILG0173
1
