Overview
This quick start guide explains how to quickly set up and activate your McAfee
NS5100 and NS5200 Sensors in inline mode. These models have a throughput of 600 Mbps, and 1 Gbps
respectively.
All product documentation referenced in this quick start guide is found on the

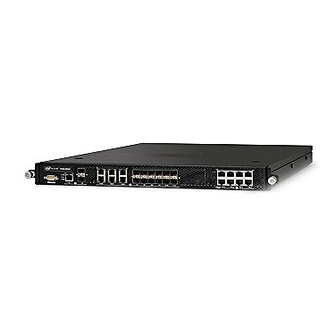

The NS5100/NS5200 Sensor model
Figure 1 Sensor front panel
Console port (1)
1
RJ-11 port (1) for fail-open control of two built-in SFP+ ports in slot G0. The RJ-11 ports support 1 Gbps (SFP)
2
fiber and 10 Gbps (SFP+) (SR and LR). You can convert these ports to copper ports by using the copper SFP
transceivers.
SFP/SFP+ 1/10 fiber Gigabit or SFP 1 Gbps copper Ethernet ports (2)
3
RJ-11 port (6) for external passive fail-open control of twelve SFP ports in slot G1. The RJ-11 ports support 1
4
Gbps (SFP) fiber (SR and LR). You can convert these ports to copper ports by using the copper SFP
transceivers. The fail-open ports are internally wired to control the SFP ports. For example, port X1 controls
monitoring ports G1/1 and G1/2; port X2 controls monitoring ports G1/3 and G1/4 and so on.
SFP 1 Gbps copper or fiber Gigabit Ethernet ports (12)
5
RJ-45 10/100/1000 Mbps Ethernet Monitoring ports (8)
6
McAfee Network Security Platform
NS5x00 Quick Start Guide
®
Network Security Platform
McAfee Service Portal.
Revision C
1
