XR510W 5KG 1000RPM WASHING MACHINE
XR612W 6KG 1200RPM WASHING MACHINE

Instruction Manual

Serial number:
Please read these instructions carefully before use and retain for future reference.
Before switching on your appliance – Always check for any damage that may have been caused in transit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR612W and is the answer not in the manual?

Questions and answers

Related Manuals for STATESMAN XR612W

Summary of Contents for STATESMAN XR612W

  • Page 1: Instruction Manual

    XR510W 5KG 1000RPM WASHING MACHINE XR612W 6KG 1200RPM WASHING MACHINE Instruction Manual Serial number: Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.

  • Page 2: Table Of Contents

    CONTENTS Important Safety Instructions ........3 Specification .............. 4-5 Appliance Overview ............6 Installation ..............6-8 Operating Instructions ..........8-12 Cleaning and Maintenance ........13-14 Fuse Replacement ............14 Trouble Shooting Guide ......... 15-17 Disposal Information ...........18...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This product is intended for domestic indoor use only. When using electrical appliances, basic safety precautions should always be followed: 1.

  • Page 4: Specification

    TECHNICAL SPECIFICATION - XR510W Trade Mark Statesman Model Number XR510W Rated Capacity (kg) Category Type Front loading washing machine Programs to which the information relates to Cotton 60°C and 40°C Energy Efficiency Class / Scale from A+++(Highest Efficiency) to D (Lowest Efficiency) Annual Energy Consumption (kWh/yr) Energy Consumption of the Standard 60°C...

  • Page 5: Specification

    TECHNICAL SPECIFICATION - XR612W Trade Mark Statesman Model Number XR612W Rated Capacity (kg) Category Type Front loading washing machine Programs to which the information relates to Cotton 60°C and 40°C Energy Efficiency Class / Scale from A+++(Highest Efficiency) to D (Lowest Efficiency)

  • Page 6: Appliance Overview

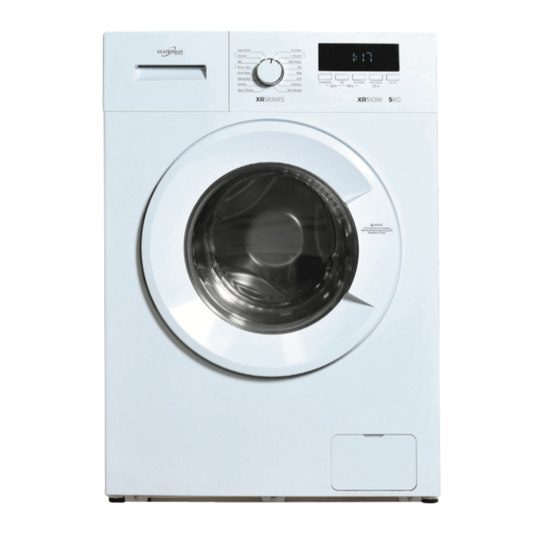

    APPLIANCE OVERVIEW Display Detergent Drawer Door Filter Door INSTALLATION It is recommended that the appliance be installed by a qualified plumber. Before installing the appliance ensure that the area that you have selected is suitable, water tap close by, enough ventilation and allowing the appliance door to fully open for loading and unloading.
  • Page 7 Removing Transit Bolts • Loosen the four transit bolts by turning in an anti-clockwise direction using a spanner. • Remove each transit bolt by pulling out of the hole. • Once all transit bolts have been removed, fit the supplied hole covers in the empty holes.

  • Page 8: Operating Instructions

    Connecting the drain hose • Fit the drain hose ensuring that it is 65 – 100cm above the floor; otherwise it could cause poor drainage. • Connect the drain hose support bracket to the drain hose and place drain hose into the drainage pipe. Important: Do not put the drain hose more than 30cm into the drain pipe and the drain hose cannot be immersed in water otherwise the appliance will not operate correctly.
  • Page 9 The spin setting will flash on the panel during selection process. You cannot select a higher spin speed than the preset maximum for the programme. XR510W: 0 – 1000RPM XR612W: 0 – 1200RPM • Time Delay Button: Time delay can be set between 3 to 24 hours, press the button repeatedly to set desired time.
  • Page 10 Programmes • Quick Wash: This cycle is suitable for washing a small amount of lightly soiled garments. • Intensive: This cycle can be selected to wash particularly dirty garments and help boost stain removal. • Spin: This cycle is to be used to extract excess water from garments. •...
  • Page 11 Programme Chart - XR510W Programme Function Max Load (kg) Water Energy Max. Speed Cycle length Temperature Consumption Consumpsion (kWh) (minutes) Quick Wash This cycle is suitable for washing a small amount 19.6 0.051 0/400/500/600/800/1000 0:20/0:25/0:30 (--)/20/30 of lightly soiled garments.
  • Page 12 Programme Chart - XR612W Programme Function Max Load (kg) Water Energy Max. Speed Cycle length Temperature Consumption Consumpsion (kWh) (minutes) Quick Wash This cycle is suitable for washing a small amount 19.6 0.051 0/400/600/800/1000 0:20/0:25/0:30 (--)/20/30 of lightly soiled garments. Intensive This cycle can be selected to wash...

  • Page 13: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Switch off the electrical supply and remove the plug from the mains socket before cleaning. Drain Pump • Remove the drain pump cover by using a coin or something similar in the slot and turning in a clockwise direction. •...

  • Page 14: Fuse Replacement

    Internal • Overtime rust deposits can occur in the drum of the appliance, it is recommended to regularly wipe the inside of the drum and clean the flexible gasket, removing any foreign objects at the same time. Use chlorine-free detergents to remove these deposits. Important: Steel wool should not be used.

  • Page 15: Trouble Shooting Guide

    TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 0844 848 5861. Please have the model code and purchase information available. Fault Possible cause Solution...
  • Page 16 Check if the water pressure is too low. Check if the inlet hose is blocked. Water drainage over time. Check if the drain pump is blocked. Contact Statesman Customer Service Door lock is broken. Try closing the door firmly again. Check if any garments are caught between the door and seal.
  • Page 17 FABRIC CARE LABELS...

  • Page 18: Disposal Information

    DISPOSAL The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in normal unsorted municipal waste. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.
  • Page 20 Ipswich, IP3 9RR 0844 848 5861 Disclaimer: Statesman operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
