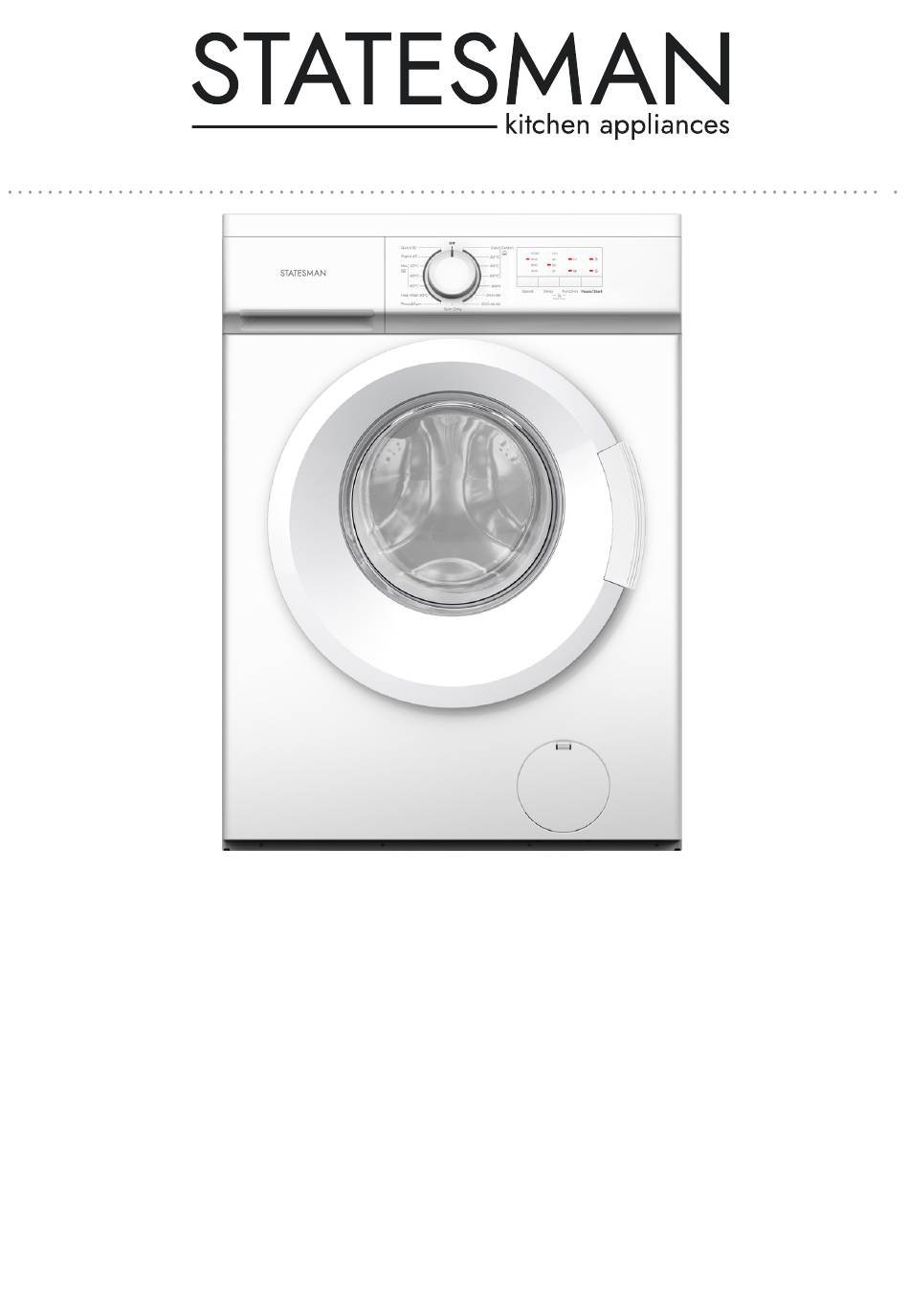

- Page 1 FWM1610W 6KG WASHING MACHINE WHITE Instruction Manual Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – always check for any damage that may have been caused in transit.
-
Page 2: Table Of Contents
- Detergent Dispenser .......... 16-17 - Control Panel ............. 17-18 - Programmes ............18-21 - Functions ..............22 Cleaning & Maintenance ........23-25 Trouble Shooting Guide & Error Codes ..... 26-27 Fuse Replacement .............28 Disposal Information ..........29 Statesman Warranty Information ......30... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This user manual contains important safety information and instruction on the operation and maintenance of your appliance. Please take the time to read this user manual before using your appliance and keep this book for future reference. Safety Instructions • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order... - Page 4 • Do not use the appliance in humid environments or rooms containing explosive or caustic gas. • In case of water leakage or water splashes let the appliance dry in the open air. • The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine.
- Page 5 • Connect the product to a grounded outlet, protected by a fuse complying with the values in the “Technical Specifications” table. • The grounding installation has to be made by a qualified electrician. • Ensure that the machine is installed in accordance with the local regulations. WARNING: • Don´t use multiple plugs or extension cords. • The appliance must not have an external switching device such as a timer or be connected to a circuit that is regularly switched on and off.
- Page 6 Operation & Maintenance • Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing. • Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damage to this machine.
- Page 7 Transport • Before transporting the appliance: - Transport bolts shall be reinstalled to the machine by a qualified technician. - Accumulated water shall be drained out of the machine. Caution: This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.
-
Page 8: Product Overview
PRODUCT OVERVIEW Detergent dispenser drawer Filter cover TECHNICAL SPECIFICATION Model FWM1610W Power Supply 220-240V~, 50Hz Max. Current Standard Water Pressue 0.05MPa~1MPa Washing Capacity Product Dimensions (mm) H:845 x W:593 x D:480 Net Weight 52kg Rated Power 2050W... -
Page 9: Product Fiche
PRODUCT FICHE Supplier’s name: Statesman Suppliers Address: 38 Bluestem Road, Ransomes Europark, Ipswich, Suffolk, IP3 9RR Model identifier: FWM1610W General product parameters: Parameter Value Paramter Value Rated capacity( )(kg) Dimensions in cm ( Height 84.5 Width 59.3 Depth Energy efficiency index ( ) (EEI 80.0 Energy efficiency class ( Washing efficiency index ( 1.031 Rinsing effectiveness (/kg) ( Energy consumption in kWh 0.648 Water consumption in litre per... -
Page 10: Installation
INSTALLATION WARNING: - Stability is important to prevent the product from moving. - Make sure the machine is standing level and stable. - Make sure that the product does not stand on the power cord. - Make sure to maintain the minimum distance from the walls as shown in the picture below. -
Page 11: Unpacking The Washing Machine
Unpacking the Washing Machine WARNING: Packaging material (e.g. films, Styrofoam) can be dangerous. There is a risk of suffocation. Keep all packaging well away from children 1. Remove the cardboard box and Styrofoam packing. 2. Lift the washing machine and remove the base packaging. Make sure the small triangle of foam (a) is removed with the bottom packaging. -
Page 12: Remove Transport Bolts
Remove Transport Bolts WARNING: You must remove the transport bolts from the back of the machine before use. Levelling the Washing Machine WARNING: The lock nuts on all four feet must be screwed tightly against the housing. 1. Loosen the lock nut. 2. -
Page 13: Drain Hose
Please Note: Connect manually, do not use tools. Check if the connections are tight. Drain Hose WARNING: Do not kink or protract the drain hose. Position the drain hose properly, otherwise damage might be a result of water leakage. There are two ways to connect the end of drain hose as show below: 1. -
Page 14: Operating Instructions
OPERATING INSTRUCTIONS Before First Use Caution: Before first use, please make sure the appliance is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralise any potential odours, it is recommended to clean your appliance before first use. To do this, run the washing machine on the Cotton programme at 60°C without laundry and detergent. -
Page 15: Before Each Wash
After Washing An alert will sound, the door will lock and the Start/Pause indicator lights will flash. Before Each Wash • The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be dam- aged. If the machine is installed in conditions below freezing, it should be transferred to a normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use. -
Page 16: Detergent Dispenser
Detergent Dispenser Pre wash Main wash Softener Detergent dispenser drawer release button CAUTION! Detergent only needs to be added into compartment I after selecting pre-wash function. Detergent Recommendation... -
Page 17: Control Panel
• Thick or concentrated detergent can be diluted in some water before pouring into the detergent dispenser, to avoid the inlet becoming blocked and causing water to overflow. • Please choose the suitable type of detergent to ensure maximum washing performance and minimum water and energy consumption. • To achieve the best cleaning result, use the appropriate dose of detergent. -
Page 18: Programmes
3. Setting Options – This allows you to select additional functions and options, the indicator will illuminate when selected. 4. Programmes – Set according to laundry type. Programmes Important: If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. - Page 19 Cycle Quick 15 Cold 0:15 0.035 Cold 70%/800 Cotton 20°C 2:20 0.426 65%/1000 Cotton 40°C 2:40 0.871 65%/1000 Mix 20°C 1:00 0.239 65%/1000 Cotton 60°C 2:45 1.28 65%/1000 3:18 0.850 52.5 61%/1000 ECO 40-60 2:36 0.544 38.7 62%/1000 2:36 0.401 32.6 65%/1000 • The above data is for reference only, and the data may change due to...
- Page 20 The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and for longer durations. Loading the washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings. Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.
- Page 21 Please Note: For the maximum spin speed, programme time, and other details of the ECO 40-60 programme, please refer to the content on the Product Fiche page.
-
Page 22: Functions
Functions Pre Wash ( ): The Prewash function provides an extra wash before the main wash. Detergent should be added to compartment I when selecting this function. Delay: Set the washing machine to start at a delayed time of 3, 6, 9 or 12 hours. -
Page 23: Cleaning & Maintenance
CLEANING & MAINTENANCE WARNING: Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance of the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. - Page 24 1. Close the tap and remove the water supply hose from it. 2. Clean the filter with a brush. 3. Unscrew the water supply hose from the rear of the machine. Pull out the filter with long nose pliers. 4. Use a brush to clean the filter. 5. Reinstall the filter to the water inlet and reconnect the water supply hose. 6. Clean the inlet filter every 3 months to ensure the normal operation of the appliance. Clean the Detergent Dispenser 1.
- Page 25 Cleaning the Drain Pump Filter WARNING: • Make sure that the machine has finished the washing cycle and is empty. Switch off and unplug before cleaning the drain pump filter. • Be careful of hot water, there is a risk of scalding. Allow water to cool down.
-
Page 26: Trouble Shooting Guide & Error Codes
TROUBLE SHOOTING GUIDE If you are having problems with your appliance, please use our trouble shooting guide below. If you are unable to resolve the issue using this guide, please ring our Customer Service Department on 01473 277 508. Please have the model code and purchase information available. DESCRIPTION POSSIBLE CAUSE SOLUTION... - Page 27 Error Codes DESCRIPTION POSSIBLE CAUSE SOLUTION Door is not closed Restart after the door is closed. Flash properly Check if the clothes are stuck. Check if the water pressure is too Water injecting problem low. Straighten the water pipe. Flash during wash cycle.
-
Page 28: Fuse Replacement
FUSE REPLACEMENT Fuse Cover Fuse Replacement (Class I) This appliance must be earthed. Remove the fuse cover with a small flat head screw driver. Take out the fuse and replace with a new fuse of the same Amp. Replace the fuse cover and push back into place. -
Page 29: Disposal Information
DISPOSAL INFORMATION The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in normal unsorted municipal waste. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. -
Page 30: Statesman Warranty Information
You can instantly activate your 24 month warranty by visiting www.statesman.warrantyonline.co.uk. Once your registration has been processed you will receive confirmation of your warranty. The warranty does not cover accessories or consumable parts that require replacement under normal use. This includes shelving, dials, filters, belts and trays etc. In the unlikely... - Page 32 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR EU: Castle Electrical Factors Ltd., Dundalk, A91 KA9R, IR 01473 277 508...
