SERVICE MANUAL
2015 7 S ERVICE MANUAL MA596<Rev.005>
KD-R460J, KD-R461DA9, KD-R461E, KD-R461EN, KD-R461EY,
KD-R461MA9, KD-R461U, KD-R461UT, KD-R462E, KD-R462EN,
KD-R462EY, KD-R463EU, KD-R464E, KD-R464EN, KD-R466U, KD-R467EE,
KD-R469E, KD-R469EY, KD-R469UR, KD-R660J, KD-R661E, KD-R661EN,
KD-R661EY, KD-R661MA9, KD-R661U, KD-R661UT, KD-SR41J, KD-SR61J
DC cord DC cord
(QAM1329-001) (QAM1345-003)
(QAM1378-001)
Hook Trim plate
(GE40685-001A) x2 (GE20363-00xA)
Carrying case Remote control unit
(GE40521-001A) (RM-RK52M)
COPYRIGHT © 2015 JVC KENWOOD Corporation

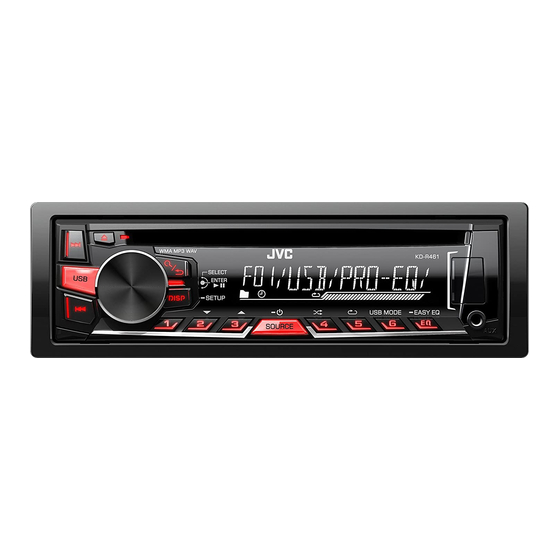

CD RECEIVER
DC cord assy
(E3A-0181-00)
Escutcheon
(B0H-0021-00)
Screw (M5x8)
(QYSDSP5008ZA) x4
Lead free solder used in the board (material: Sn-Ag-Cu, melting point: 219 Centigrade)
Lead free solder used in the board (material: Sn-Cu, melting point: 230 Centigrade)
COPYRIGHT © 2015 JVC KENWOOD Corporation
DETACHABLE PANEL
KD-R460J
KD-R461DA9
KD-R461E
DC cord assy
KD-R461EN
(E3A-0218-00)
KD-R461EY
KD-R461MA9
KD-R461U
KD-R461UT
KD-R462E
KD-R462EN
KD-R462EY
KD-R463EU
Mounting sleeve
KD-R464E
(GE20362-002A)
KD-R464EN
KD-R466U
KD-R467EE
KD-R469E
KD-R469EY
KD-R469UR
KD-R660J
KD-R661E
Screw (M5x10)
KD-R661EN
(QYSDSP5010ZA) x4
KD-R661EY
KD-R661MA9
KD-R661U
KD-R661UT
KD-SR41J
KD-SR61J
Model Parts number
CP-R460JD
-
CP-R461ED
CP-R461ED
CP-R461ED
-
CP-R461UD
CP-R461UD
CP-R462ED
CP-R462ED
CP-R462ED
CP-R463EU
CP-R464ED
CP-R464ED
CP-R466UD
CP-R467EED
CP-R469ED
CP-R469ED
-
CP-R660JD
CP-R661ED
CP-R661ED
CP-R661ED
-
CP-R661UD
CP-R661UD
CP-SR41JD
CP-SR61JD
No.MA596<Rev.005>
2015/7
