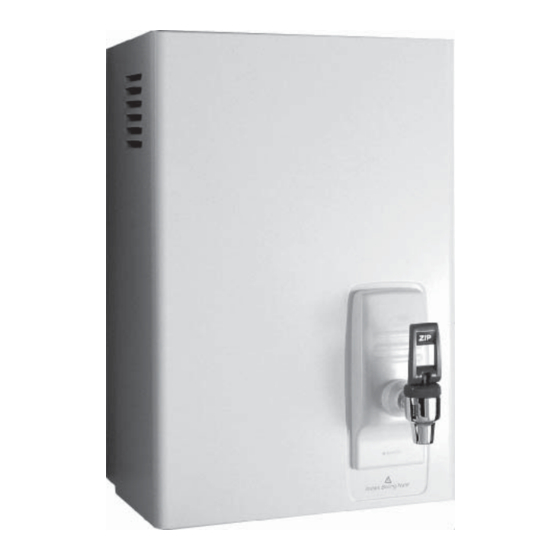

Zip Autoboil
Instant boiling water
11052 Zip Autoboil 15 Litre White
11051 Zip Autoboil 15 Litre Stainless Steel
12052 Zip Autoboil 25 Litre White
12051 Zip Autoboil 25 Litre Stainless Steel
04052 Zip Autoboil 40 Litre White
04051 Zip Autoboil 40 Litre Stainless Steel
Zip Autoboil - Installation & Operating Instructions - 81439 - May 2012 v1.02
Installation and Operating Instructions
Page 1 of 12
Advertisement
Table of Contents
Related Manuals for Zip 12051 Zip Autoboil 25 Litre Stainless Steel
Summary of Contents for Zip 12051 Zip Autoboil 25 Litre Stainless Steel
- Page 1 12052 Zip Autoboil 25 Litre White 12051 Zip Autoboil 25 Litre Stainless Steel 04052 Zip Autoboil 40 Litre White 04051 Zip Autoboil 40 Litre Stainless Steel Zip Autoboil - Installation & Operating Instructions - 81439 - May 2012 v1.02 Page 1 of 12...
- Page 2 Intentionally left blank. Page 2 of 12 Zip Autoboil- Installation & Operating Instructions - 81439 - May 2012 v1.02...
-
Page 3: Table Of Contents
Contact Details ..... . . 12 Zip Autoboil - Installation & Operating Instructions - 81439 - May 2012 v1.02 Page 3 of 12... -
Page 4: Read These Warnings First
All plumbing connections must be made in accordance with local regulations. The Zip Autoboil instant boiling water heater is not intended for use by young children or infirm people without supervision. Young children should be prevented from having access to ensure that they are not able to use or play with the heater. -
Page 5: Installation Procedures
Screws or bolts must be capable of supporting the heater weight when filled. Elbow Approximate Weight When Filled 15 Litre models 34.5 kg 25 Litre models 47 kg 40 Litre models 71 kg Zip Autoboil - Installation & Operating Instructions - 81439 - May 2012 v1.02 Page 5 of 12... -
Page 6: Step 3 - Connecting
Minimum - 100 kPa maximum - 700 kPa. Warning: If pressure is likely to exceed 700 kPa, a pressure limiting valve must be installed in the cold water supply line. Zip recommends a valve rated at 350 kPa for this application. -
Page 7: Wall Mounting Template Dimensions
Wall Mounting Template Dimensions & Electrical Diagram Wall template for 15 litre, 25 litre & 40 litre models. Zip Autoboil - Installation & Operating Instructions - 81439 - May 2012 v1.02 Page 7 of 12... -
Page 8: Problem Solving
Warning- the water may be boiling - show extra care. 5. Test that in every instance the electrical resistance does not exceed 1 ohm. Page 8 of 12 Zip Autoboil- Installation & Operating Instructions - 81439 - May 2012 v1.02... -
Page 9: Operating Procedures
Operating Procedures Tap Operation Boiling water Zip Autoboil is fitted with a two-way tap for filtered instant boiling water. For instant boiling water, gently pull the top of the tap forward. Boiling water will flow until the tap handle is released. -
Page 10: Spare Parts
Element Kit 3000 w / 240 v 90107 Filter Cold Inlet kit 90492 Drain Cap and Seal Kit 90174 Contactor Kit 240 v CL01A310TR Page 10 of 12 Zip Autoboil- Installation & Operating Instructions - 81439 - May 2012 v1.02... - Page 11 Spare Parts Zip Autoboil - Installation & Operating Instructions - 81439 - May 2012 v1.02 Page 11 of 12...
-
Page 12: Contact Details
Images in this booklet have been modified and may not be true representations of the finished goods. Zip Autoboil - Installation & Operating Instructions - 81439 - May 2012 v1.02 Page 12 of 12...
