BRAKE PAD/DISC

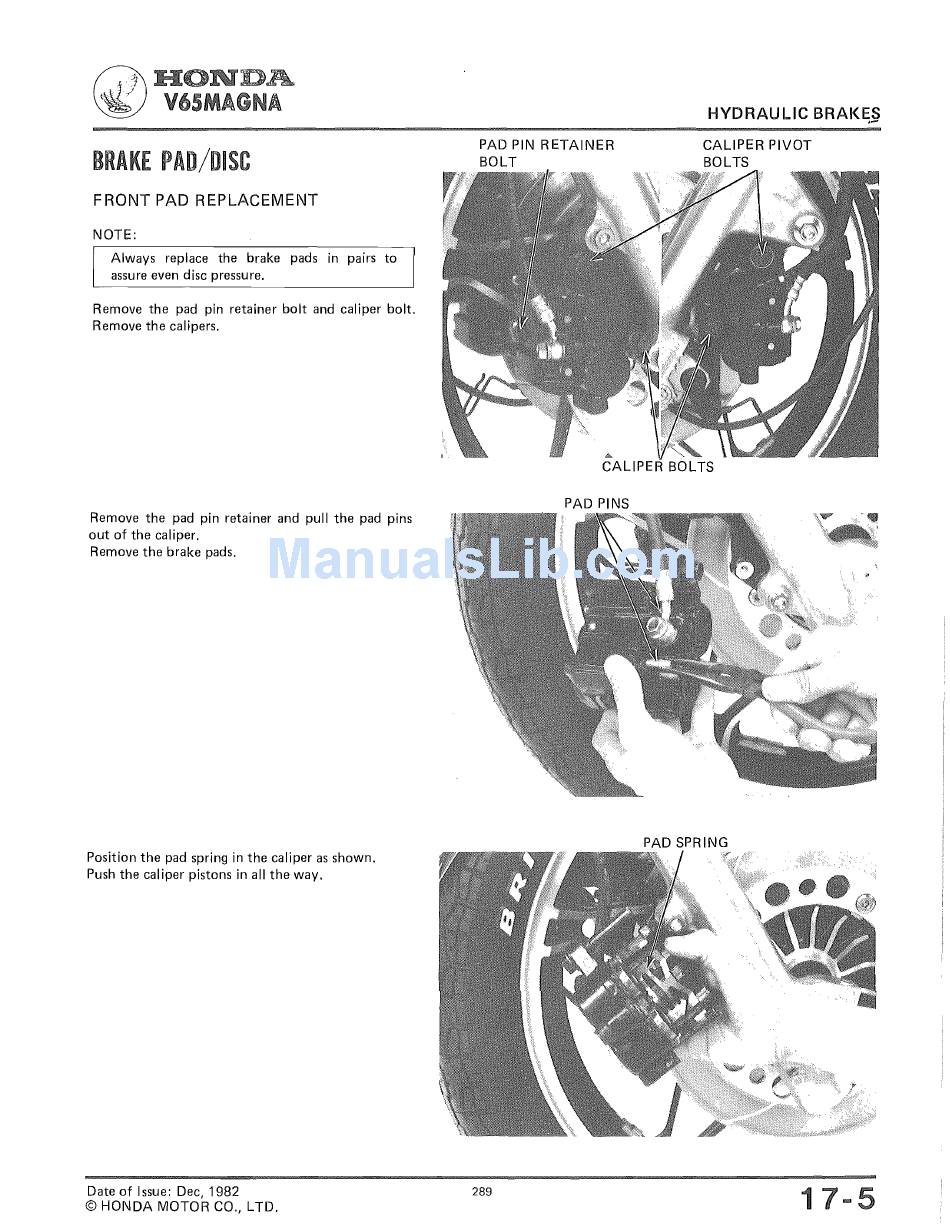

FRONT PAD REPLACEMENT
NOTE:
Always replace the brake pads in pairs to
assure even disc pressure.
Remove the pad pin retainer bolt and caliper bolt.
Remove the calipers.
PAD PIN RETAINER
BOLT
HYDRAULIC BRAKE§
CALIPER PIVOT
BOLTS
Remove the pad pin retainer and pull the pad pins
out of the caliper.
Remove the brake pads.
Position the pad spring in the caliper as shown.
Push the caliper pistons in all the way.
CALIPER BOLTS
PAD PINS
PAD SPRING
