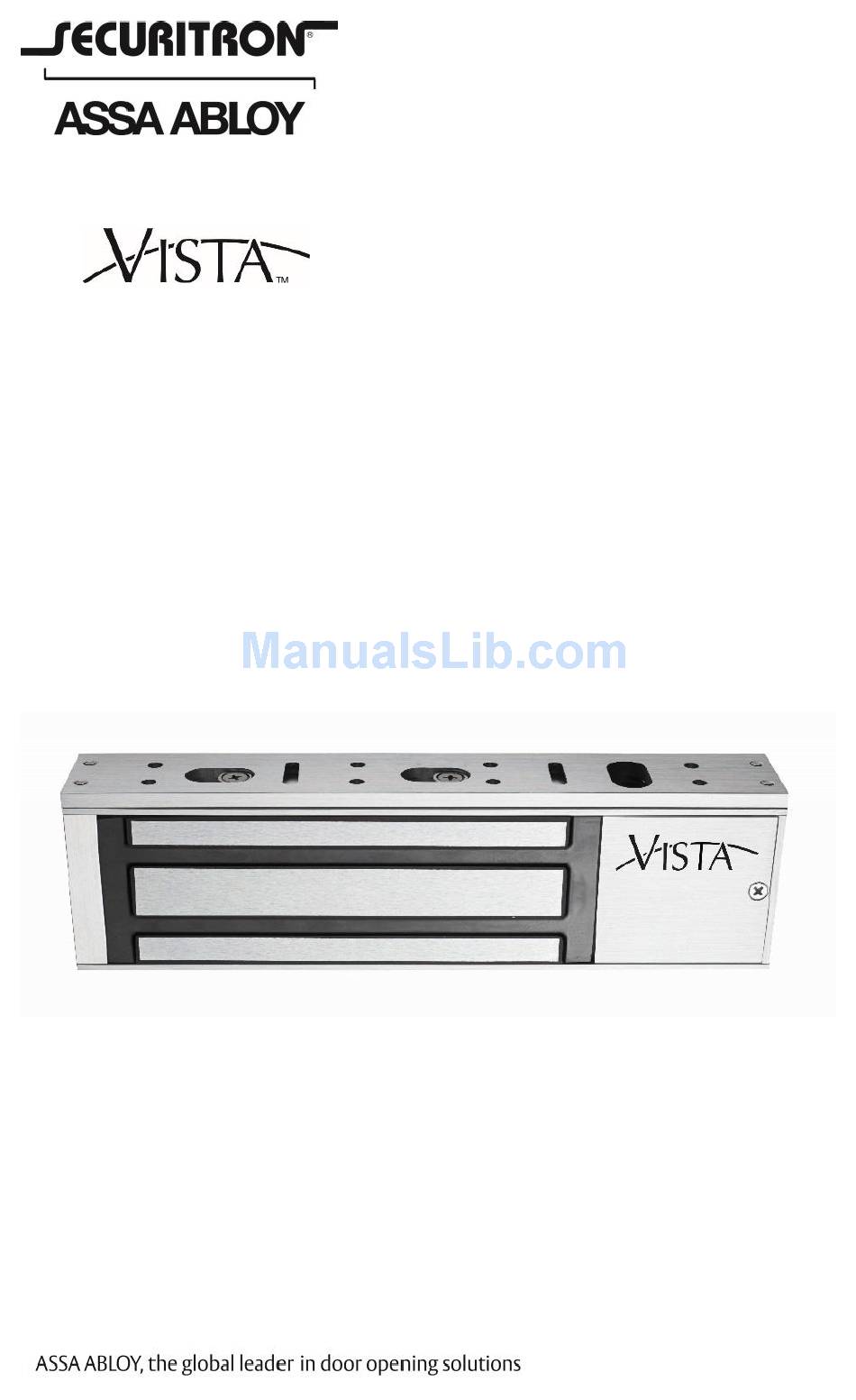

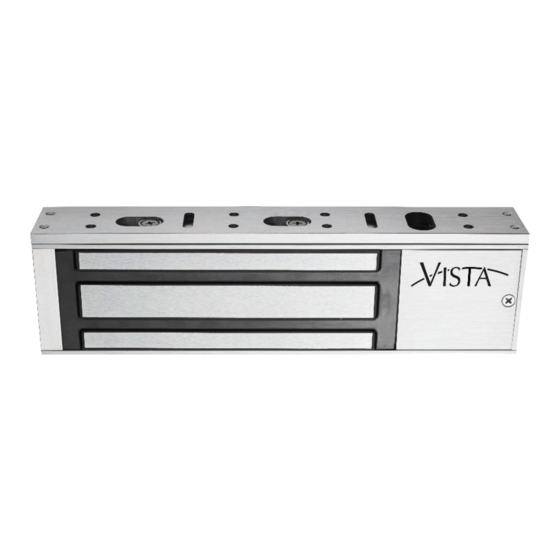

- Page 1 Securitron Phoenix, AZ 85044 Tel: 1-800-624-5625 Mon-Fri: 6:00am - 4:00pm PDT Fax: 1-800-232-7329 www.securitron.com V2M1200/1290 Series Maglock Installation Instructions 500-33705, Rev A...
-
Page 2: Table Of Contents
Table of Contents Product Information ................3 Electrical ....................3 Product Type ..................3 LED Operation Colors for V2M1200/1290 with MBS ....3 Recommended Tools ................3 Ensuring Correct Voltage Setting ............4 Installing the V2M1200/1290 on an Out-Swinging Door ....4 Determining the Door Frame Header .......... -
Page 3: Product Information
Product Information Holding Force 1200 lbs (544 Kg) Dimensions (L x W x H) 10-1/2” x 2-7/8” x 1-9/16” [266 mm x 72 mm x 40 mm] Electrical NOTE: Factory default setting is 24 VDC. 12 VDC and 24 VDC operation (field selectable via voltage selection switch in the wiring compartment) Product Type NOTE 1:... -
Page 4: Ensuring Correct Voltage Setting
Ensuring Correct Voltage Setting NOTE: Factory default setting is 24 VDC. 1. ENSURE the onboard PCB is set for the correct and desired operating voltage. 2. IF a change is required, THEN ACCESS the wiring compartment by removing the wiring compartment Phillips head screw and cover (see Figure 1, “Wiring Compartment”), AND TOGGLE the 12V/24V slide switch to the desired position. -
Page 5: Installing The Armature Plate On A Solid Door
2. REMOVE the header plate from the magnetic lock. a. LOOSEN BUT DO NOT REMOVE the two Phillips head screws on top of the header plate. b. SLIDE and REMOVE the header plate from the magnetic lock. 3. FOLD the included installation template on the dotted line to form a 90-degree angle. -
Page 6: Installing The V2M1200/1290 On An In-Swinging Door
10. DRILL a 1/2” [12.7 mm] diameter hole through the sex bolt door side to accommodate the armature bolt (see Figure 4). Figure 3. Installing Armature to Solid Door Installing V2M1200/1290 on In-Swinging Door 1. FASTEN the L bracket on the door frame in a suitable location. 2. - Page 7 NOTE: The cap screws are not tightened at this time. The Z bracket must be adjustable. 5. ASSEMBLE the Z bracket with the provided socket head cap screws. NOTE: The rubber washer attached to the armature bolt is not removed. 6.
- Page 8 8. CLOSE the door and ALIGN the armature plate to the magnet. 9. APPLY power to the magnet. 10. ALLOW the armature plate to bond with the magnet, ensuring the Z bracket assembly is firmly against the closed door. 11. TIGHTEN the cap screws holding the Z bracket armature plate assembly.
-
Page 9: Wiring The V2M1200/1290
Wiring the V2M1200/1290 Electrical Specifications Single Magnetic Lock: 510 mA at 12 VDC 280 mA at 24 VDC Double Magnetic Locks: 510 mA at 12 VDC (each lock) 280 mA at 24 VDC (each lock) Typical Magnetic Lock Wiring Wire Gauge Chart Distance From Power Supply to Magnetic Lock 12 VDC 1000... -
Page 10: Magnetic Lock Care And Maintenance
Magnetic Lock Care and Maintenance Magnetic locks have no internal moving parts and require minimal maintenance. It is recommended that the face of the armature place and magnet be wiped clean and a light coating of a suitable silicone lubricant applied to each surface to prevent rust, even though the mating surfaces have been plated (required only if dirt buildup is observed. -
Page 11: Vistacare Warranty
24 hours of SECURITRON’s receipt of the product from customer. If the customer has an account with SECURITRON or a valid credit card, the customer may order an advance replacement product, whereby SECURITRON will charge the customer’s account for the price of the... - Page 12 Securitron is a brand associated with Hanchett Entry Systems, Inc., an ASSA ABLOY Group company. Copyright © 2016, Hanchett Entry Systems, Inc. 500-33705, Rev A All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
