User Manual
ver. 1.6EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D2 - VERSION 1.6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cowon D2 - VERSION 1.6

Summary of Contents for Cowon D2 - VERSION 1.6

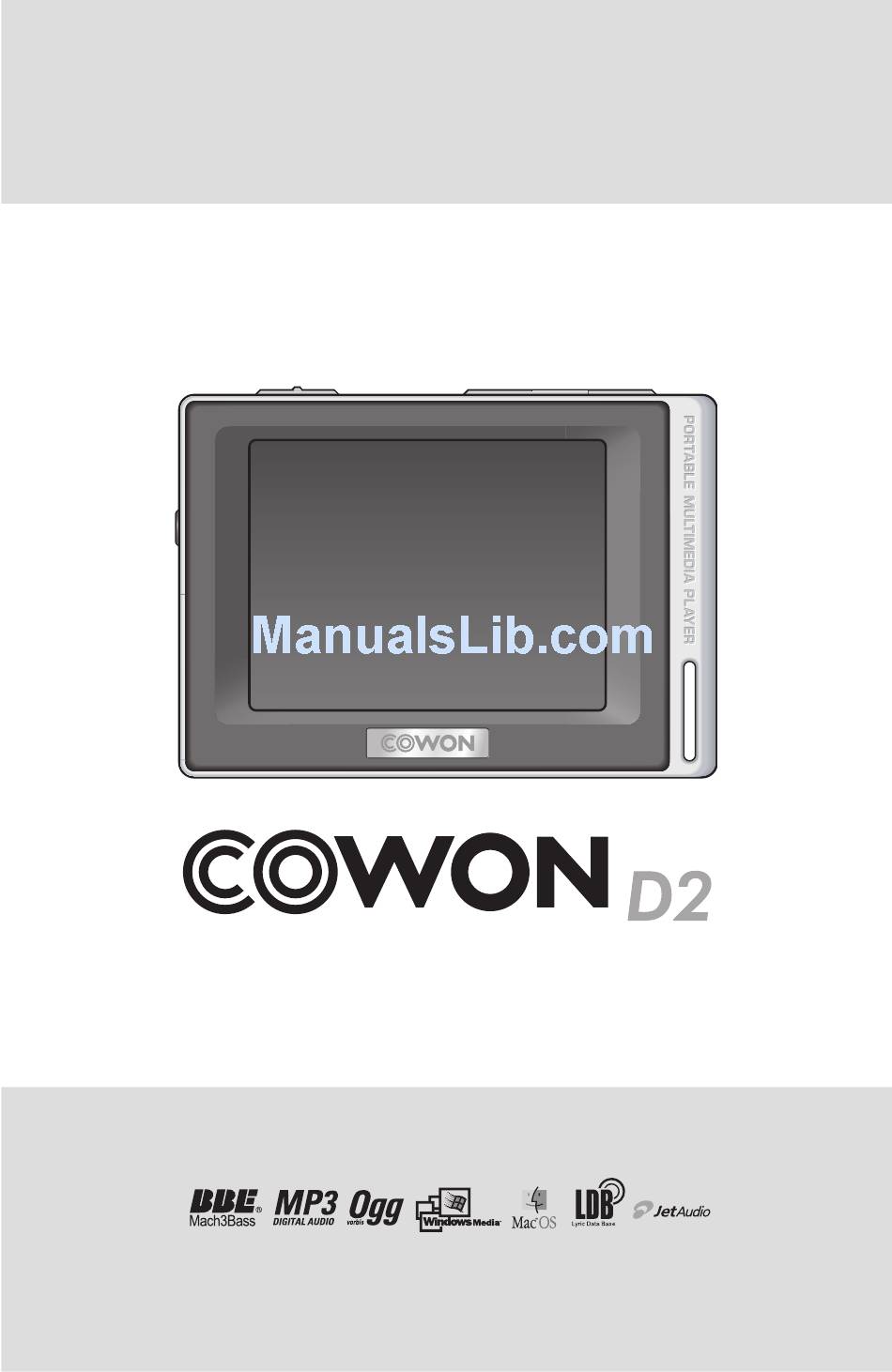

  • Page 1 User Manual ver. 1.6EN...

  • Page 2: Cowon D2

    • Each CD-key is unique and will not be re-issued in case of loss. • Further information regarding the product can be found on the web: http://www.COWON.com • Users will be able to find the latest information for other COWON products and download the latest updates for firmware and software.

  • Page 3: Table Of Contents

    3. Music Mode 4. Video Mode 5. Picture and Text Mode 6. FM Radio Mode 7. Record Mode 8. Settings Mode 3)Additional Information 1. Specification 2. Setting to Factory Default 3. File Conversion Using COWON MediaCenter - JetAudio Troubleshooting COWON D2...
  • Page 4 • Avoid using the player at a location where static electricity is frequent • Before any repair service, you should back up all data from the player. COWON SYSTEMS, INC. shall not be liable for any loss of data or files during the repair.

  • Page 5: Before Using D2

    Before Using D2 1.Package Contents Simple stylus pen Earphone AC Adapter Installation CD(COWON Me- USB Cable Line-in Cable (Optional) diaCenter - JetAudio, User Guide), Quick Guide TV out Cable (Optional) Line-in Cable Converter SD Card (Optional) (Optional) COWON D2...

  • Page 6: Identifying The Parts

    Reset EXTport Display Simple stylus ring SD/SDHC/MMC Slot Simple stylus stand angle SD/SDHC/MMC Slot Inserting Memory: Press the SD/SDHC/MMC memory cards all the way in Removing Memory: Press the memory card slightly in and let it come out. COWON D2...

  • Page 7: Charging The Battery

    Before Using D2 3. Charging the battery To charge the internal battery of COWON D2, connect D2 to a PC through a USB or connect it to an AC power outlet using an adapter. 1. Connecting to PC via USB...
  • Page 8 1. Connect D2 with a computer via USB cable 2. “Add New Hardware Wizard” will appear as shown. Click “Next”. 3. Click “Search for the best driver for your device (Recommended)”, and then click “Next” 4. Click “Specify a location” and click “Browse” button. COWON D2...
  • Page 9 Before Using D2 5. Select “Win98” folder in the installation CD and then click “Next” button. Drivers are also available for download from www.COWON.com. 6. Once the drivers are recognized, click “Next”. 7. Continue to click “Next” 8. Click the “Finish” button to complete the driver installation.
  • Page 10 - The D2 can recognize up to 500 folders and about 5,000 files. - If the COWON drive does not show up under Computer or Windows Explorer, Disconnect and re-connect the USB cable and repeat the previous procedure again [For windows 98) - If remove the USB connection within the windows software while the USB cable is connected to a PC, the player is being charged through the USB.

  • Page 11: Button Control

    Under each operation mode, touching the screen lightly will trigger a control screen to appear. After a pre-set period time or if is touched, the control screen disappears. Pressing button or touching on screen returns it to the mode-selection screen. COWON D2...

  • Page 12: Music Mode

    Folder : Plays music files located within the current folder Sets the random play mode Sets the repeat play mode Selects JetEffect settings Sets the sectional repeat. It can play back in repeat mode a minimum 1 second-length section of a track. COWON D2...

  • Page 13: Video Mode

    Selects the previous video file or rewinds the current video file. Plays a video file or pauses it. A video file may not play properly if it has not been converted using COWON MediaCenter - JetAudio software. Selects the next video file or fast-forwards the current video file.

  • Page 14: Picture And Text Mode

    - D2 does not have a dedicated antenna. Instead the headphone wire is used to enhance radio signal strengths like an antenna. Stretching out the headphone wire will improve signal reception quality. During Radio recording, be sure to use the headphone to optimize sound quality. COWON D2...

  • Page 15: Record Mode

    Sets the duration for silent intervals before it creates a new file for recording. It automatically detects the silent intervals in incoming sound and creates a new file when the silent interval exceeds the specified duration. (*This setting can be selected only in Line-In Record mode) COWON D2...

  • Page 16: Settings Mode

    8. Play Speed · Controls the speed of music playback. - Excessive JetEffect settings may strain sound and generate noise. - For further information regarding JetEffect, refer to BBE MP at our website: www.COWON.com 2. Play Mode 1. Boundary · This function sets the various ranges of files and folders.
  • Page 17 · If Custom is selected, the image set as Wallpaper in Picture mode will appear as the wallpaper. 6. Lyrics · COWON D2 can display lyrics of music files that contain lyric information. · When enabled, lyrics of the music file being played is displayed on the screen.
  • Page 18 · Sets how long it takes to increase the volume. 5. Load Default ·Sets all the settings to default values except for the language 6. User defined button ·User can define a desired function for Pressing and holding button COWON D2...
  • Page 19 · Selects the country in which you are listening to FM radio. 8. Information · Version : version of the firmware installed · Total Space : Total capacity of the flash memory · Free Space : Un-used amount of flash memory COWON D2...

  • Page 20: Additional Information

    16 Ohm Earphone : 37mW + 37mW Dimensions 78 X 55.4 X 16.6 mm (LxHxD) Weight 91g (Including the battery) - The battery life is as tested under COWON’s standard testing settings and can vary for individual uses. COWON D2...

  • Page 21: Setting To Factory Default

    Additional Information 2. Setting to Factory Default Values COWON D2 can be returned to its original factory settings. Resetting will erase all the currently set values for settings and will return them to the values pre-set at the factory. 1. Turn on the power 2.
  • Page 22 - Movie files that have not been converted by COWON MediaCenter - JetAudio will not play in COWON D2. - Make sure that the movie files play properly on the PC. - Not all video files can be converted. Files already damaged before conversion may not work on COWON D2 even if the conver- sion process is successful.

  • Page 23: Troubleshooting

    In order display album image, the image has to be stored in the ID3 tag of the music file. You can edit the ID3 tags using jetAudio. Video won’t play. All video files must be converted using COWON MediaCenter - JetAudio. Any other video files are not supported by D2. FM Radio does not work.
  • Page 24 Check to see if the player is recognized in Windows Explorer when it is properly connected to PC. D2 must be recognized in the Windows for it to work with COWON MediaCenter - JetAudio. Additional driver installation is required for Windows 98 and 98 SE users.
