Cisco Firepower 8000 Series Getting
Started Guide
For the 81xx, 82xx, and 83xx Firepower and AMP models
Updated: February 15, 2016
This guide is organized as follows:
Package Contents
Deploying the Appliance
Cabling the Device
Installing the Firepower 8000 Series Device
Initial Device Setup
Restoring a Device to Factory Defaults
Scrubbing the Hard Drive
Related Documentation
Package Contents
This section lists the items included with each model. Note that contents are subject to change, and your exact contents
might contain additional or fewer items.
Chassis Models
A Firepower 8000 Series device can be delivered on a variety of chassis:
The Firepower 8120/8130/8140 and the AMP8050/AMP8150 are available as 1U appliances and can contain
up to three sensing modules. The following illustration of the rear of the chassis indicates the location of the
management interface.
Figure 1
Firepower
1
Management interface

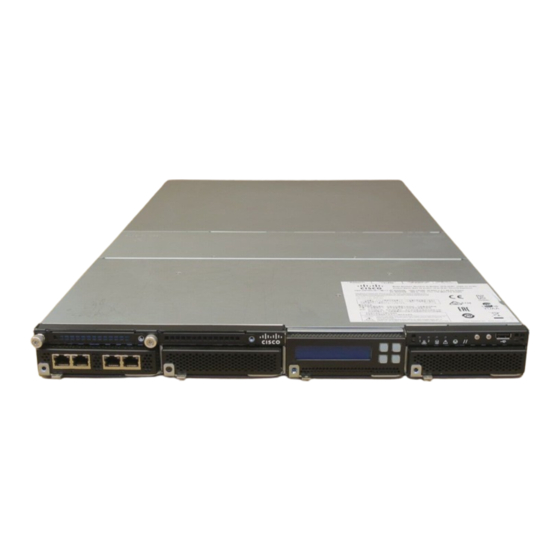

Firepower 8130 (1U model), this chassis and can contain up to three sensing modules.
Firepower 8000 Series Getting Started Guide
81xx and AMP 8xxx Series Chassis and Management Interface
1
Cisco Systems, Inc.
www.cisco.com
