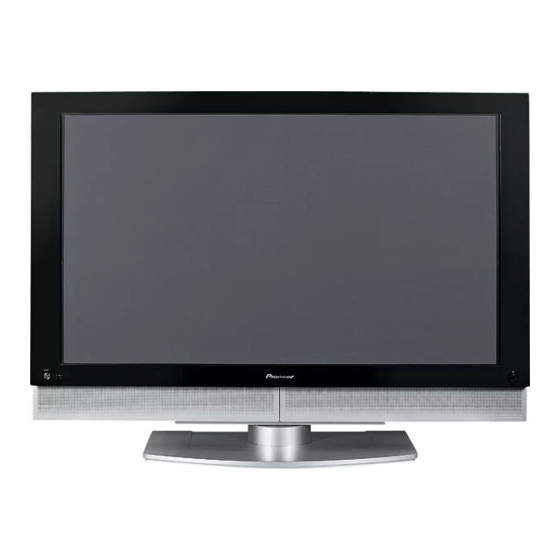

Pioneer PDP-434PE Service Manual

PLASMA DISPLAY

PDP-434PU
PDP-434PE
PRO-434PU
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type
PDP-434PU TUCK
PDP-434PE WYVI6
PDP-434PE WYVI6XK
PRO-434PU KUC
This service manual should be used together with the following manual(s).
Model No.
PDP-434PU/ TUCK
PDP-434PE/ WYVI6
PDP-434PE/ WYVI6XK
PRO-434PU/ KUC
For details, refer to "Important symbols for good services".
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
Power Requirement
AC110 - 240V
AC220 - 240V
AC220 - 240V
AC120V
Order No.
ARP3175 SCHEMATIC DIAGRAM and PCB CONNECTION DIAGRAM
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PDP-434PU
Remarks
Confirm it
WYVI6
WYVI6XK
T-ZZY SEPT. 2003 printed in Japan
ORDER NO.
ARP3174
Remarks
Serial No.
SS
UK
