Electro-Voice EVU-1062/95 User Manual

Evu series
Hide thumbs Also See for EVU-1062/95:
Table of Contents

Advertisement

Quick Links

EVU Series

User Manual

EVU-1062/95
EVU-1082/95
EVU-2062/95
EVU-2082/95

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVU-1062/95 and is the answer not in the manual?

Questions and answers

Related Manuals for Electro-Voice EVU-1062/95

Summary of Contents for Electro-Voice EVU-1062/95

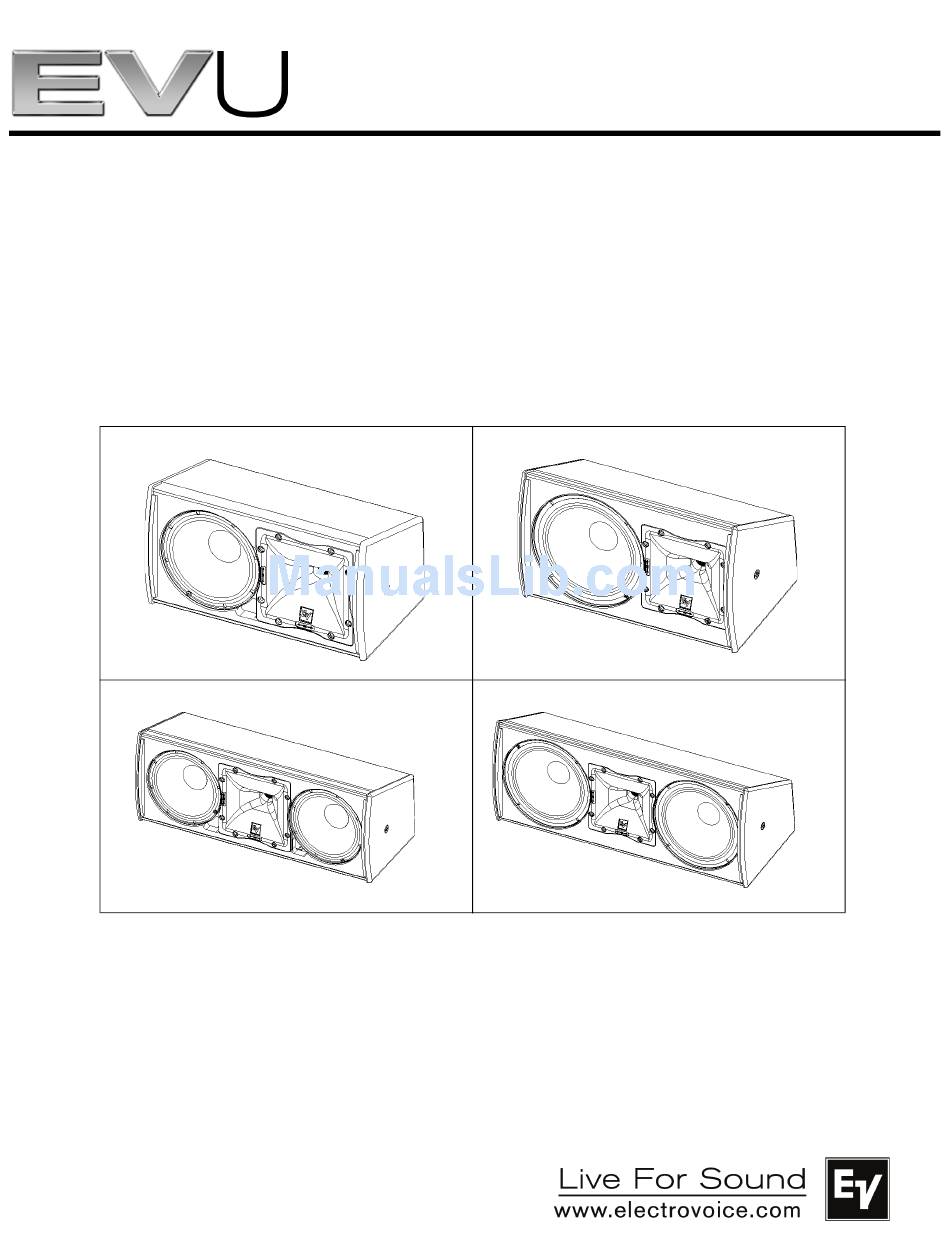

  • Page 1: User Manual

    EVU Series User Manual EVU-1062/95 EVU-1082/95 EVU-2062/95 EVU-2082/95...

  • Page 3: Table Of Contents

    Table Contents INTRODUCTION ........................7 Introduction .............................7 Electro-Voice Model Number Notation ....................8 Optional Accessories ..........................10 Dimensions ............................10 EVU-1062 Dimensions ............................. 10 EVU-1062 Block Diagram ..........................10 EVU-1082 Dimensions ............................. 11 EVU-1082 Block Diagram ..........................11 EVU-2062 Dimensions ............................. 12 EVU-2062 Block Diagram ..........................12 EVU-2082 Dimensions .............................
  • Page 5 List Figures FIGURE 1. Available EVU Systems ..................9 FIGURE 2. Dimensions and Center of Gravity for the EVU-1062 ........10 FIGURE 3. EVU-1062 Block Diagram ................. 10 FIGURE 4. Dimensions and Center of Gravity for the EVU-1082 ........11 FIGURE 5.

  • Page 7: Introduction

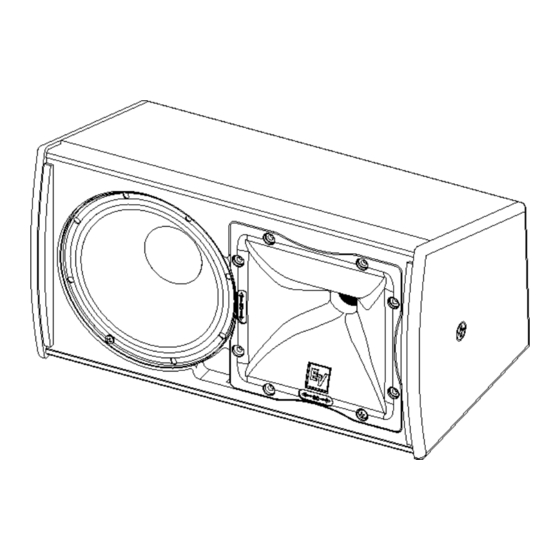

    Introduction The Electro-Voice EVU series is a compact high power 2-way loudspeaker system used in a variety of applications where high-quality sound reinforcement is required in an ultra compact light-weight enclosure. The enclosure design utilizes asymmetrical angles to maintain tight clearances to wall and ceilings while providing optimal coverage patterns making it ideal to blend into surroundings.

  • Page 8: Electro-Voice Model Number Notation

    90x50 Electro-Voice Model Number Notation The Electro-Voice Model Number notation indicates the loudspeaker series, woofer quantity, woofer diameter, quantity of band passes in the system, and following a forward slash, the coverage pattern. An example using the EVU-1062/95 is shown in Table 2.
  • Page 9 Typical EVU systems are shown in Figure 18, with key dimensions, suspension points, weights and centers-of-gravity. Engineering data sheets for each model, containing full specifications and dimensional drawings, are shipped with each loudspeaker and can be downloaded from the Electro-Voice website, see www.electrovoice.com. EVU-1062/95...

  • Page 10: Optional Accessories

    EVU Technical Manual Optional Accessories Item Description Ordering Information NL4 Cover Plate Kit Dual NL4 Input Panel Cover EVU-CDNL4 Transformer Kit 60 Watt Transformer Kit (70.7/100-V) EVU-TK60 Dimensions EVU-1062 Dimensions Dimensions and Center of Gravity for the EVU-1062 FIGURE 19. EVU-1062 Block Diagram EVU-1062 Block Diagram FIGURE 20.

  • Page 11: Evu-1082 Dimensions

    Introduction EVU-1082 Dimensions Dimensions and Center of Gravity for the EVU-1082 FIGURE 21. EVU-1082 Block Diagram EVU-1082 Block Diagram FIGURE 22.

  • Page 12: Evu-2062 Dimensions

    EVU Technical Manual EVU-2062 Dimensions Dimensions and Center of Gravity for the EVU-2062 FIGURE 23. EVU-2062 Block Diagram EVU-2062 Bock Diagram FIGURE 24.

  • Page 13: Evu-2082 Dimensions

    Introduction EVU-2082 Dimensions Dimensions and Center of Gravity for the EVU-2082 FIGURE 25. EVU-2082 Block Diagram EVU-2082 Block Diagram FIGURE 26. Tool List The tools required to prepare the EVU system for installation are as follows: 3/16-inch flat blade screwdriver Phillips #2 screwdriver NOTE: This screwdriver is also required to install the optional transformer kit or NL4 cover plate.

  • Page 14: Parts List

    EVU Technical Manual Parts List The EVU loudspeaker shipment includes the following: Loudspeaker (A) 1 each • U-Bracket Sections (B) 2 each • M8 Pan Head Bolts (C) 4 each • M5 Pan Head Bolts (not shown) 4 each • M5 Nuts (not shown) 4 each •...

  • Page 15: Installation

    Recommended High-Pass Filter Frequencies TABLE 3. Model Number Recommended High-Pass Frequency (minimum) EVU-1062/95 90 Hz; 24 dB Per Octave EVU-1082/95 90 Hz; 24 dB Per Octave EVU-2062/95 90 Hz; 24 dB Per Octave EVU-2082/95 90 Hz; 24 dB Per Octave...

  • Page 16: Preparing The Evu For Installation

    EVU Technical Manual Preparing the EVU for Installation Rotation of the High-Frequency Waveguide Sub Assembly All high-frequency waveguide sub assemblies have their horizontal and vertical patterns molded on the front of the waveguide for easy identification of orientation. The high-frequency waveguide sub assembly can be rotated to change the high frequency pattern.

  • Page 17: Connecting The Loudspeaker To The Signal Wires

    Evaluate each component as humming necessary to isolate the problem. Poor system grounding Check and correct the system grounding, as required. or ground loop If these suggestions do not solve your problem, contact your nearest Electro-Voice dealer or Electro-Voice distributor.

  • Page 18: Evu Rigging

    EVU Technical Manual EVU Rigging All EVU loudspeaker systems incorporate heavy-duty M8 threaded accessory attachment points inside each enclosure. These attachment points allow the user to install single systems in horizontal and vertical configurations. The universal U-Bracket allows for installation in horizontal or vertical configurations with the ability to position the loudspeaker at any angle up to 330°...
  • Page 19 Installation Universal U-Bracket Assembly FIGURE 29. WARNING: The Universal U-Bracket is designed to hold the weight of one (1) loudspeaker. Never attempt to mount multiple loudspeakers to a single U-Bracket. To install the assembled U-Bracket to the enclosure, do the following: NOTE: All EVU systems are assembled in the following manner: Tools: #2 Phillips screwdriver...
  • Page 20 EVU Technical Manual Securely tighten the M8 flat head screw. EVU-1062 Assembly—Example FIGURE 30.

  • Page 21: Mounting The Universal U-Bracket To The Wall

    Installation Mounting the Universal U-Bracket to the Wall The Universal U-Bracket is mounted to a wall using the holes provided in bottom rail. See Figure 31 for hole locations. WARNING: Never under any circumstances mount the loudspeaker to a wall using wall anchors in drywall. Mounting to the structure is the responsibility of all others.

  • Page 22: Optional Omnimount Bracket

    EVU Technical Manual Optional Omnimount Bracket The Optional Omnimount Bracket, available from Omnimount, is used to facilitate mounting. The back panel of any of the EVU loudspeaker systems includes four (4) heavy-duty T-nut mounting points for an Omnimount style bracket. Four (4) M8 pan head Phillips screws are included in the EVU series hardware kit for mounting to an Omnimount bracket.

  • Page 23: Optional M8 Forged, Shoulder-Style Closed Eyebolt

    Installation Optional M8 Forged, Shoulder-Style Closed Eyebolt The Optional M8 Forged, Shoulder-Style Closed eyebolt is used for rigging. Any of the six (6) heavy duty T-nut mounting points can be used for rigging with an M8 forged, shoulder-style closed eyebolt (purchased separately). NOTE: Due to the counterbore on the enclosure, a fender style washer is required to assemble the eyebolt.
  • Page 24 EVU Technical Manual IMPORTANT: Eyebolts must be fully seated and oriented in the plane of pull as shown in Figure 34. Always use washers to distribute suspension loads. Eyebolt Orientation FIGURE 34.

  • Page 25: Working Load Limits And Safety Notices

    For WLL and Safety Factors, the WLL defined by the manufacturer of any rigging component should never be exceeded. Electro-Voice bases the WLL of its EVU products on a minimum of an 8:1 safety factor. Other manufacturers of rigging components may base their WLL on safety factors other than 8:1. For example, 5:1 safety factors are fairly common among rigging manufacturers because many regulatory agencies call for a minimum safety factor of 5:1.

  • Page 26: System Working Load Limit Using Ev Universal U-Bracket

    The user is cautioned that some local regulations may require safety factors higher than 8:1. In that circumstance, Electro-Voice insists the user maintain the higher safety factor as required by the local regulations throughout the entire EVU installation. It is the responsibility of all others to make sure any EVU installation meets all applicable local, state or federal safety regulations.
  • Page 28 Contact Information U.S.A and Canada only. For customer orders, contact Customer Service at: (800) 392-3497 Fax: (800) 955-6831 12000 Portland Avenue South Europe, Africa and Middle East only. For customer orders, contact Customer Service at Burnsville, MN 55337 +49 9421-706 0 Fax: +49 9421-706 265 Phone: (952) 884-4051 Fax: (952) 884-0043 Other International locations.
